Page 5 - Manual FA01731-EN - 01/2023 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions
PRODUCT DATA AND INFORMATION
Key
This symbol shows which parts to read carefully.
This symbol shows which parts describe safety issues.
This symbol shows what to tell users.
The measurements, unless otherwise stated, are in millimetres.
Description
001BY-3500T
BY3500T - Operator with 400 V AC three-phase motor, complete with control board and mechanical limit switches for sliding gates up to 3500 kg in weight and 17 m in
length.
Intended use
Industrial sliding gate solution
Any installation and/or use other than that specified in this manual is forbidden.

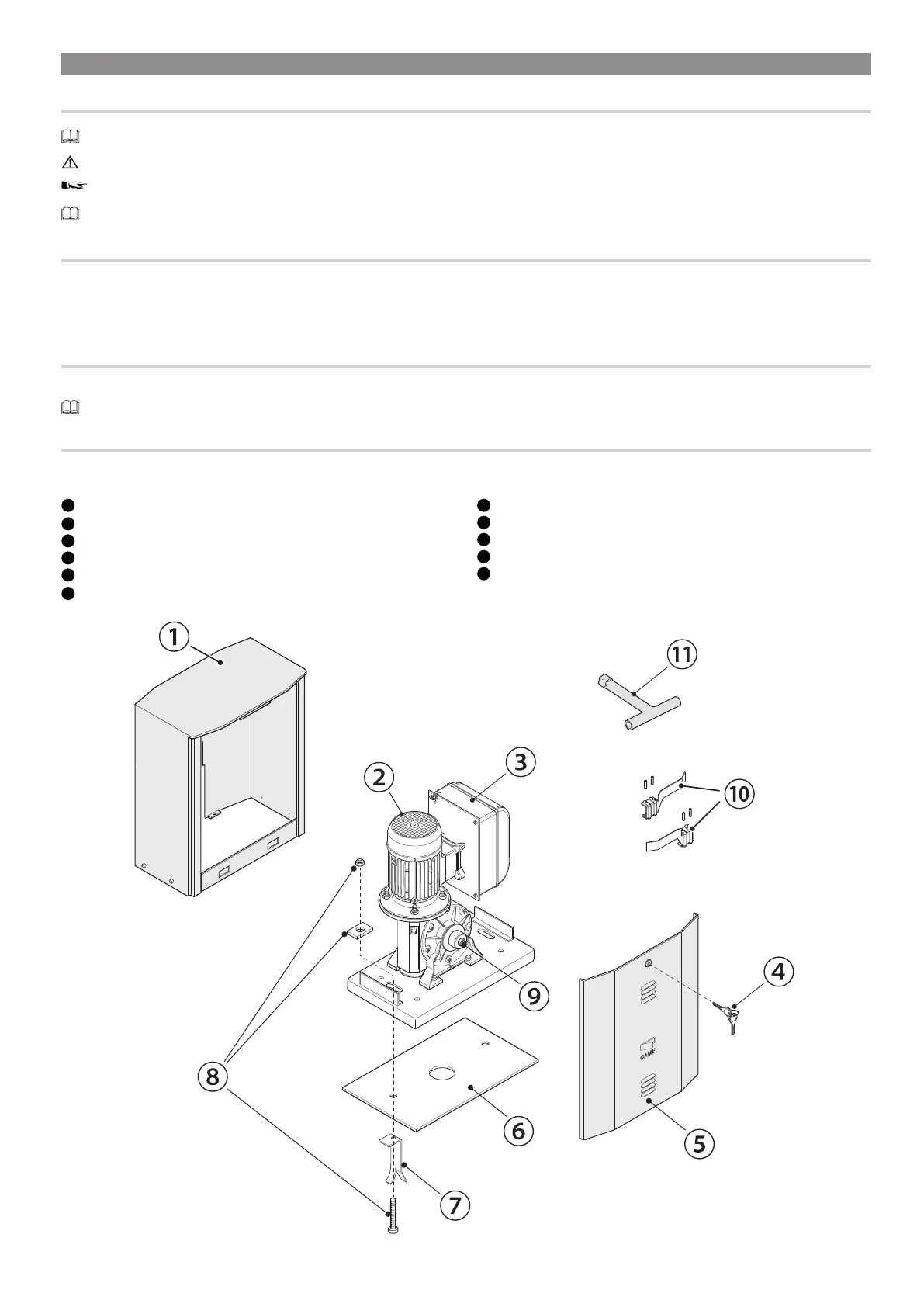

Description of parts
Operator
1
Cabinet
2
Gearmotor
3
Control panel
4
Keys for the inspection door
5
Inspection hatch
6
Anchoring plate
7
Anchoring bracket
8
Fixtures and fittings
9
Nut for unlocking the operator
10
Limit-switch tabs
11
Release key
BY 3500T
