Page 18 - Manual FA01731-EN - 01/2023 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions

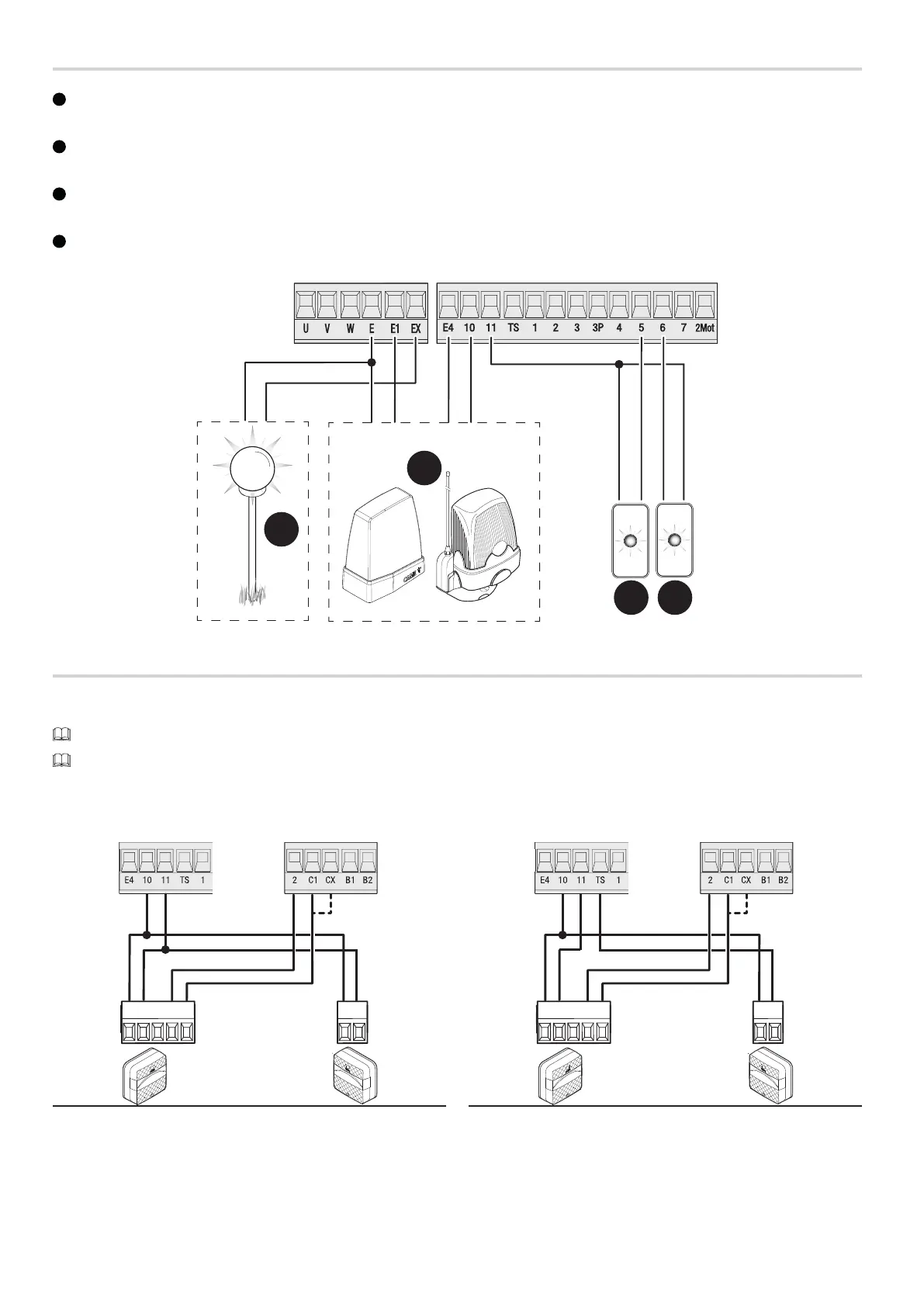

Signalling devices
1
Additional light
It increases the light in the manoeuvring area.
2
Flashing beacon
It flashes when the operator opens and closes.
3
Operator status warning light (OPEN)
The operator is open.
4
Operator status warning light (CLOSED)
The operator is closed.
1
2
3 4
Safety devices
During programming, configure the type of action that must be performed by the device connected to the input.
Connect the safety devices to the C1 and/or CX inputs.
If used, the contacts C1 CK must be configured during programming.
For systems with multiple pairs of photocells, please see the manual for the relevant accessory.
DELTA photocells
Standard connection Connection with safety test
+
10
-
11 NO C NC
RX
+
10
-
11
TX
+
10
-
11 NO C NC
RX
+
10
-
11
TX
