CAME BY-3500T User Manual

Page 19 - Manual FA01731-EN - 01/2023 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions

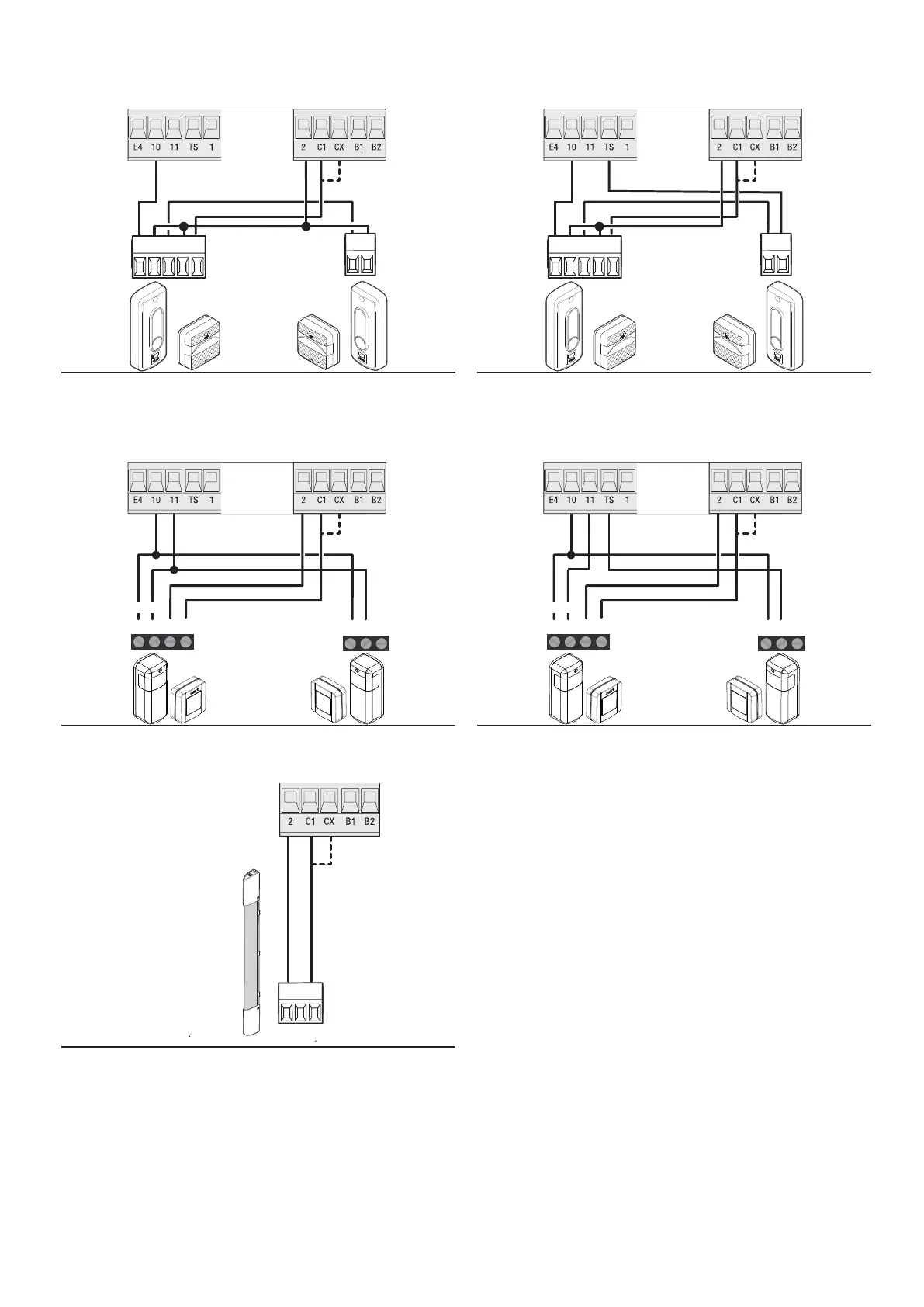

DIR / DELTA-S photocells
Standard connection Connection with safety test
+
10
-
2TXCNC
RX
TX 2
TX
+
10
-
2TXCNC
RX
TX 2
TX
DXR/DLX photocells
Standard connection Connection with safety test
RX TX
10 11 OUT
10 11 SY
+ -
RX TX
10 11 OUT
10 11 SY
+ -
DFWN sensitive edge
CNONC
DFWN
