SOFT START
The maximum power of the motor to be connected to the soft starter must not exceed the maximum power of the board.
A
Gearmotor input
B
Gearmotor output
C

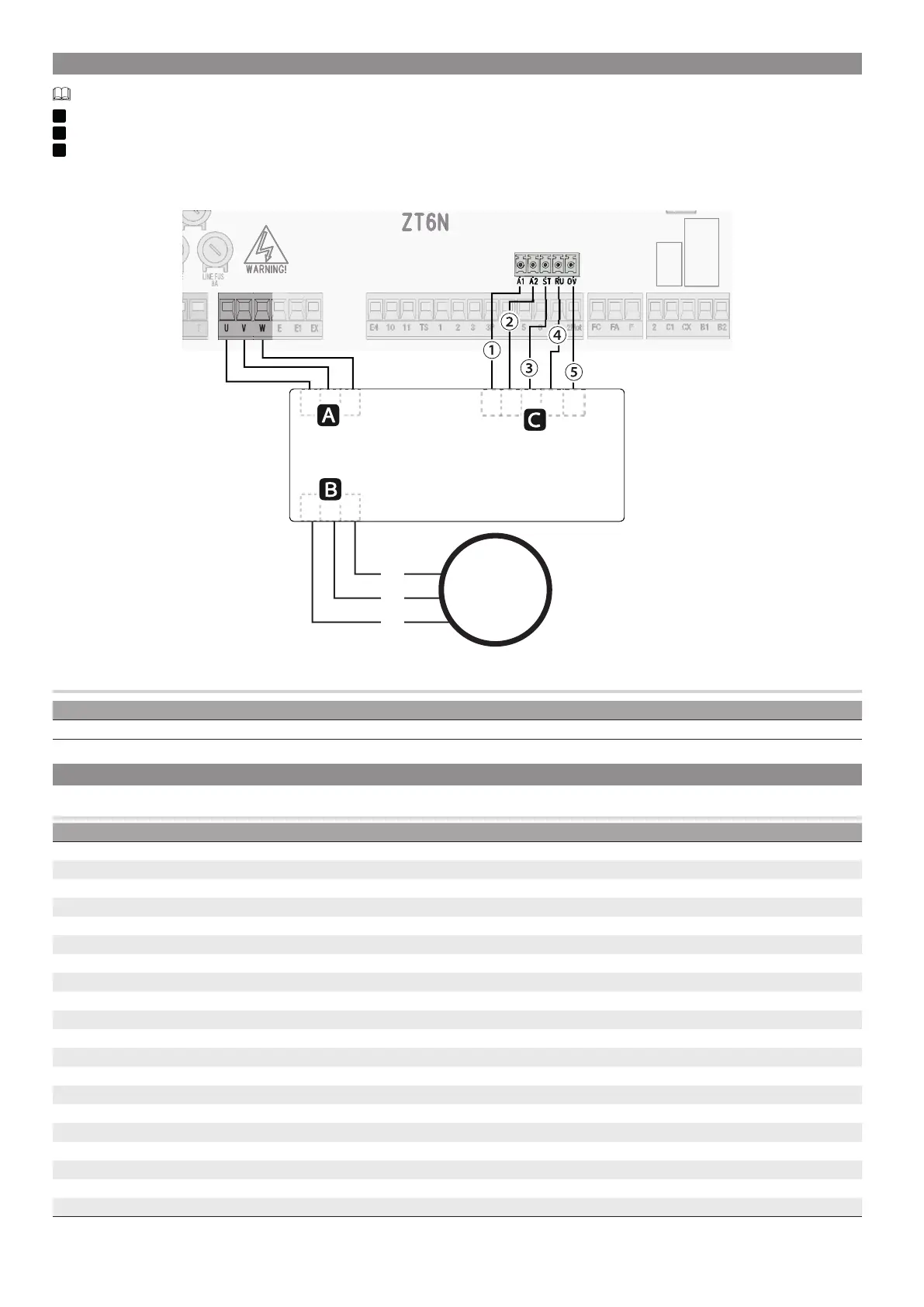

Commands and soft starter power supply terminal block connections
①
+ 24 V DC power supply connection
②
GND power supply connection
③
START connection
④
ON RUN connection (optional)
⑤
OVERLOAD connection (optional)
SOFT START
M
W1
V1
U1
Usage limitations
Power supply voltage Motor contact power
24 V AC/DC 3000 W (400 V 3~)
PROGRAMMING
Function of the DIP switch
DIP switches FUNCTION
1 Automatic closure
2 Sequential and step-by-step command
3 Open command
4 Hold-to-run
5 Pre-flashing
6 Obstacle with motor stopped
7 Input C1
8 CX input
9 CX input
10 Total stop
11 [do not use, keep OFF]
12 Partial opening
13 Safety devices test
14 Input C1
15 CX input
16 Additional light
17 Additional light
18 Support brake
19 [do not use, keep OFF]
20 [do not use, keep OFF]
