Page 6 - Manual FA01731-EN - 01/2023 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions

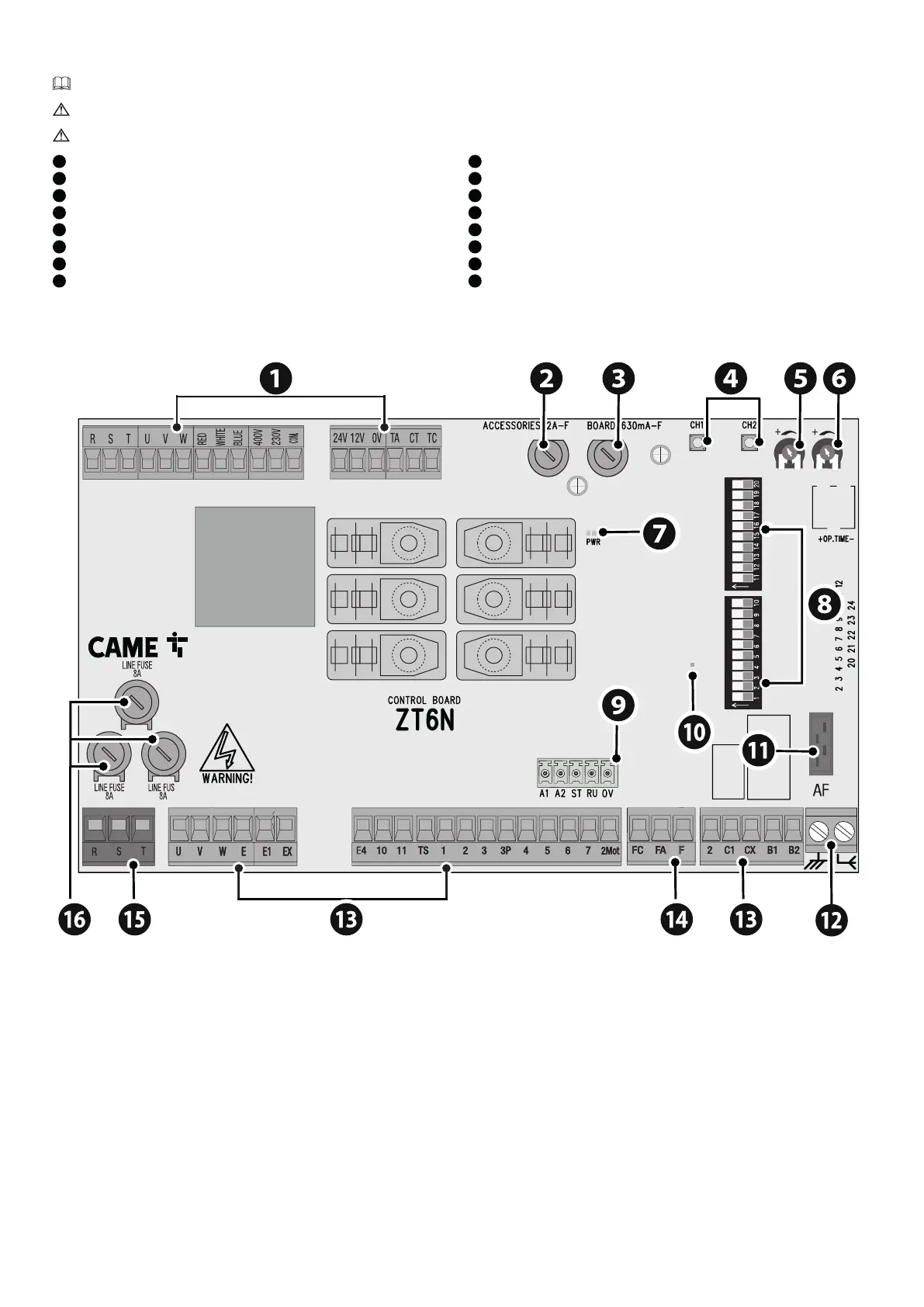

Control board
All connections are protected by quick fuses.
For the system to work properly, before fitting any plug-in card, DISCONNECT THE MAIN POWER SUPPLY and remove any batteries.
Before working on the control panel, disconnect the mains power supply and remove the batteries, if any.
1
Terminal block for connecting the transformer and contactors
2
Accessories fuse
3
Control board fuse
4
Programming buttons
5
TCA Trimmer: automatic closing time adjustment
6
PAR.OP Trimmer: partial opening adjustment
7
Power LED
8
DIP for programming
9
Terminal block for connecting the soft starter
10
Alert LED
11
Connector for plug-in radio frequency card (AF)
12
Terminal board for connecting the antenna
13
Terminal block for connecting the control, safety and motor devices
14
Terminal board for limit-switch micro-switches
15
Power supply terminal block
16
Line fuse
