Page 7 - Manual FA01731-EN - 01/2023 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions

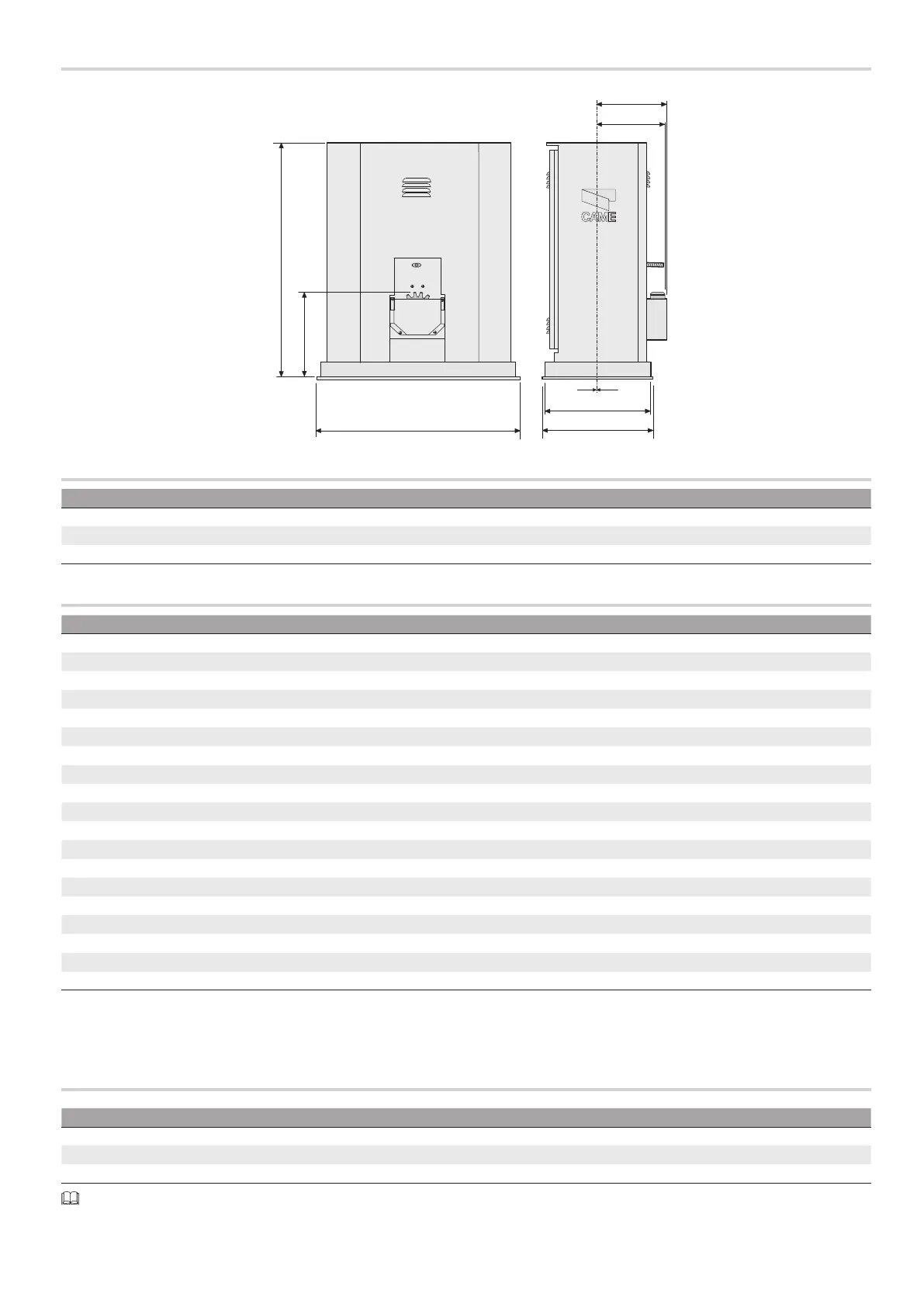

Size
==
578
171
167
222
480
275
295
Usage limitations
MODELS BY-3500T
Pinion module 6
Maximum gate-leaf length (m) 17
Maximum gate-leaf weight (kg) 3500
Technical data
MODELS BY-3500T
Power supply (V - 50/60 Hz) 400 V AC THREE-PHASE
Motor power supply (V) 400 V AC THREE-PHASE
Board power supply (V) 24 AC
Standby consumption (W) 2,1
Power (W) 1000
Maximum current draw (A) 8
Colour RAL 7035
Operating temperature (°C) -20 ÷ +55
Storage temperature (°C)* -25 ÷ +70
Thrust (N) 3500
Maximum operating speed (m/min) 10,5
Operating time (s) 127
Cycles/hour 8
Motor thermal protection (°C) 140
Protection rating (IP) 54
Insulation class I
Reduction ratio (i) 1/28
Weight (kg) 74
Average life (cycles)** 150.000
(**) The average product life specified should be understood purely as an indicative estimate. It applies to normal usage conditions and where the product has been
installed and maintained in compliance with the instructions provided in the CAME technical manual. The average product life is also affected, including significantly,
by other variables such as, but not limited to, climatic and environmental conditions. The average product life should not be confused with the product warranty.
(*) Before installing the product, keep it at room temperature where it has previously been stored or transported at a very high or very low temperature.
Fuse table
MODELS BY-3500T
Line fuse 8 A F
Control-board fuse 630 mA F
Accessory fuse 2 A F
The line fuses are 3, one for each phase.
