p. 2 - Manual FA0 0 679 - EN v. 1- 12/2017 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice.

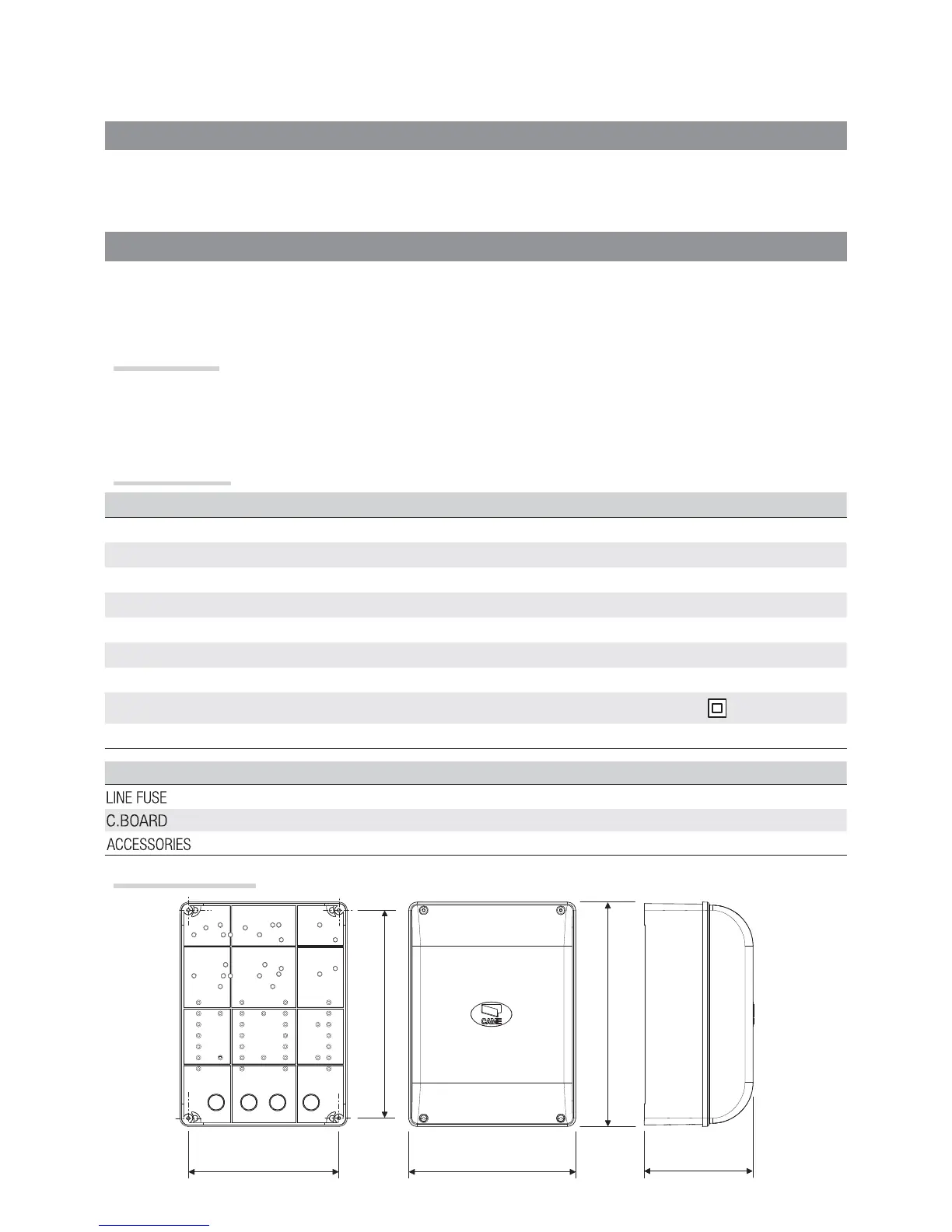

Dimensions (mm)
DESCRIPTION
Control panel for two-leaved swing gates. Set functions by using DIP-switches and adjust them by using the
trimmers.
All connections and links are rapid-fuse protected.
Intended use
The ZF1N110 / ZF1N control panel is designed to control CAME gearmotors for swing gates in private homes
and apartment buildings.
Any installation and/or use other than that specifi ed in this manual is forbidden.
Technical data
Type ZF1N ZF1N110
Protection rating (IP) 54
Power supply (V - 50/60 Hz) 230 AC 120 AC
Input voltage motor (V) 230 AC 120 AC
Consumption in stand-by mode (mA) 40
Maximum power (W) 320
Casing material ABS
Operating temperature (°C) -20 to +55
Apparatus class
Weight (Kg) -
Fuses ZF1N ZF1N110
- Line 5 A 8 A
- Card 315mA
- Accessories 3.15 A
KEY
This symbol shows which parts to read carefully.
⚠
This symbol shows which parts describe safety issues
☞
This symbol shows which parts to tell users about.
IMPORTANT SAFETY INSTRUCTIONS WHEN INSTALLING
WARNING: INCORRECT INSTALLATION MAY RESULT IN SERIOUS HARM, FOLLOW THE INSTALLATION INSTRUCTIONS.
THIS MANUAL IS EXCLUSIVELY INTENDED FOR PROFESSIONAL, SKILLED STAFF
