450
400
350
*A
*B
1
3
2
4
182
340
168
80
Manual FA01175-EN - 05/2018 - © CAME S.p.A. - The contents of this manual may change, at any time, and without notice.
-
Translated original instructions

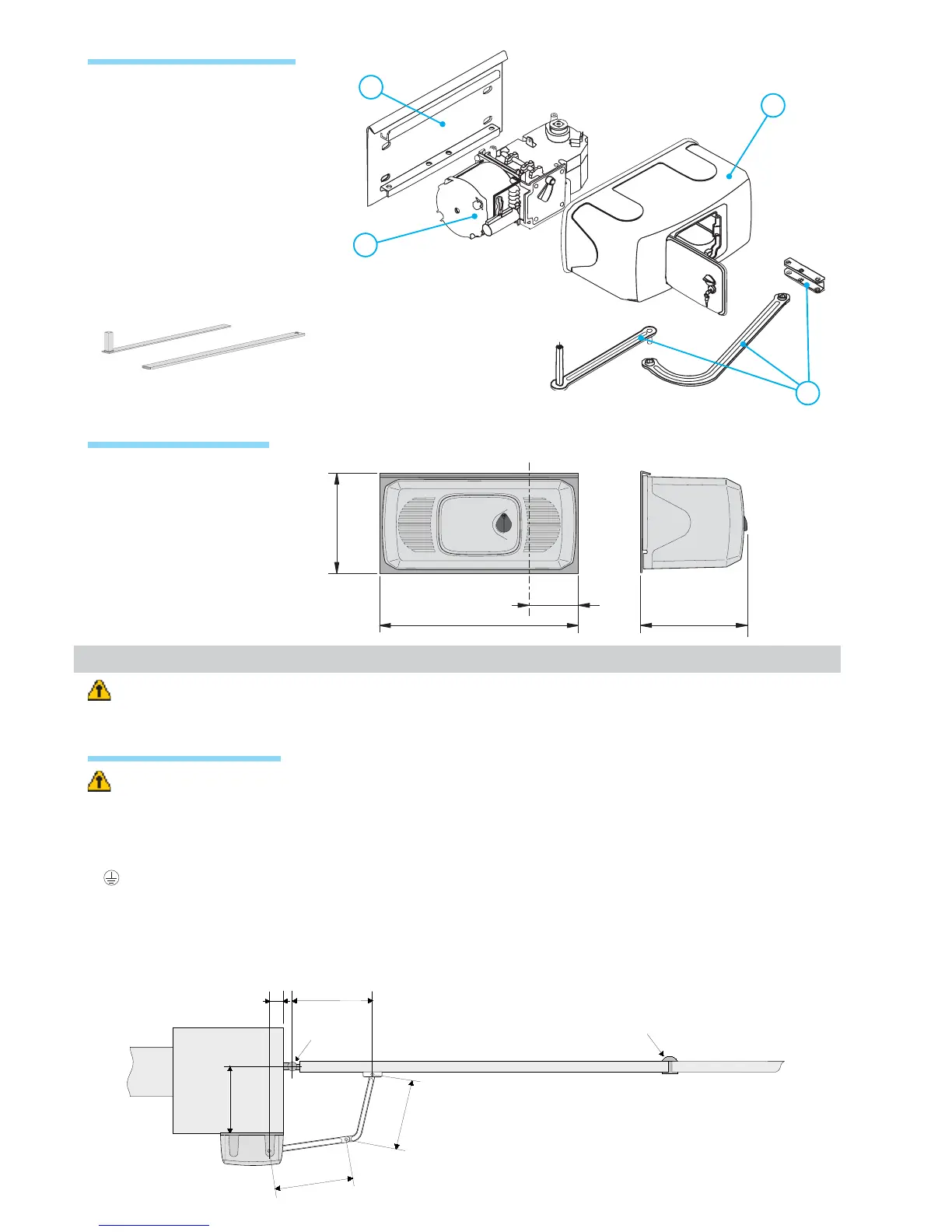

Description of parts
1) Base plate
2) Gearmotor assembly
3) Motor cover
4) Articulated transmission arm
Optional accessory :
F1001 Straight telescopic arm (for single
gate wings that are 0,5 to 2 m max long).
Overall dimensions
Installation
Pillar
Gate leaf
End stop
Hinge
If distance B is 0 to 300 mm, distance A must be at least 80 mm.
If distance B is 300 to 380 mm, distance A must be at least 120 mm.
Before installing, do the following:
• Make sure the structure of the gate is sturdy, the hinges work and that the is no friction between moving and non-moving parts;
• Make sure the path of the electrical cables complies with the command and safety instructions;
• That there is a (soundly secured to the ground) mechanical stop to prevent the gate leaf/gearmotor from over extending
.
•
You may perform internal back up circuit connections, provided you use additional insulation when compared to the other
internal live parts;
• Make sure you have suitable tubing and conduits for the electrical cables to pass through and be protected against mechanical
damage.
Installation must be carried out by expert qualified personnel and in full compliance with current regulations.
Preliminary checks
