p. 4 - Manual FA0 0 679 - EN v. 1- 12/2017 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice.
Cable types and minimum thicknesses

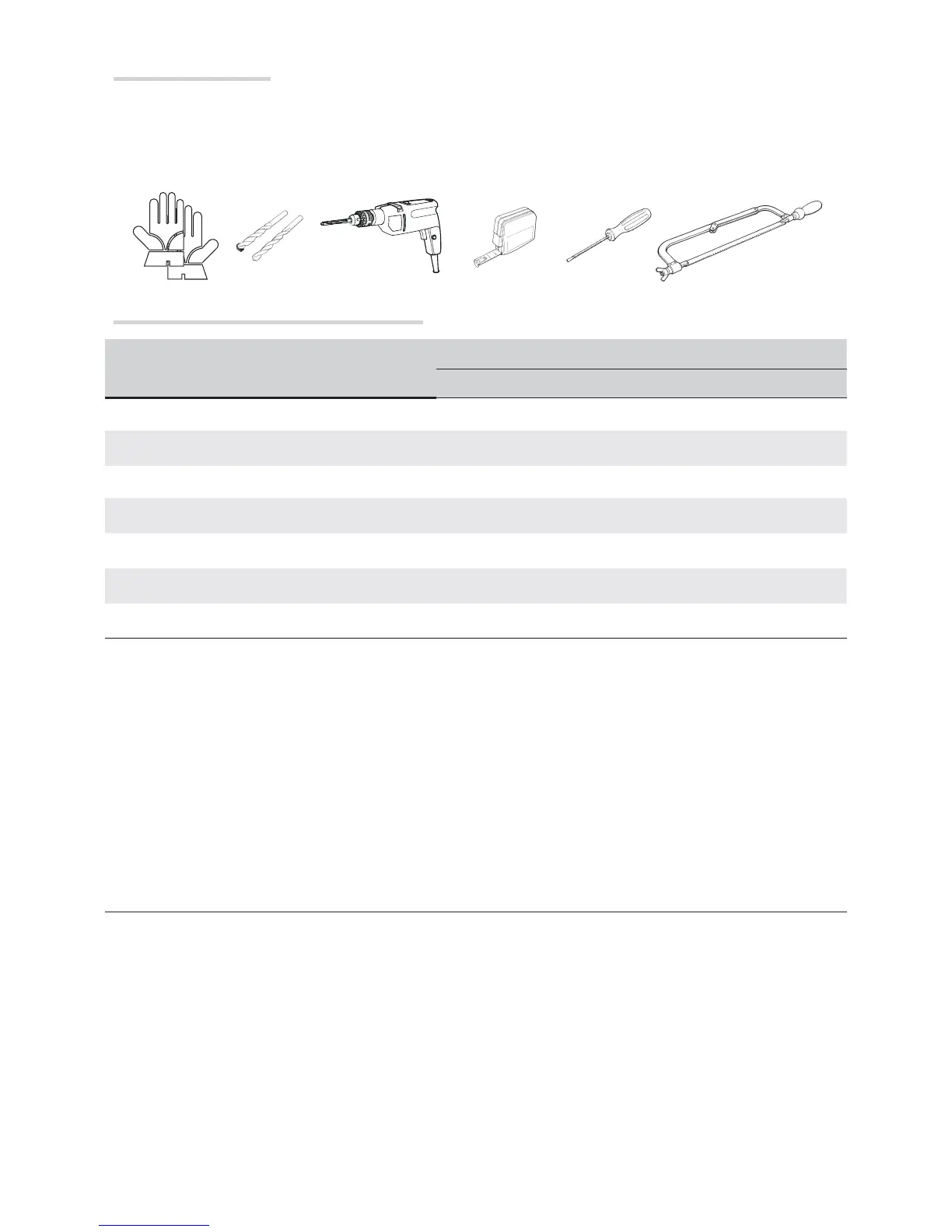

Tools and materials
Make sure you have all the tools and materials you will need for installing in total safety and in compliance with
applicable regulations. The fi gure shows some of the equipment installers will need.
Connection
cable length
< 20 m 20 < 30 m
Control panel 120 / 230 V AC (1P+N+PE) 3G x 1.5 mm
2
3G x 2.5 mm
2
Gearmotor 120 / 230 V AC 4G x 1.5 mm
2
4G x 2.5 mm
2
TX Photocells 2 x 0.5 mm
2
RX photocells 4 x 0.5 mm
2
Flashing light 2 x 0.5 mm
2
Command and control devices 2 x 0.5 mm
2
Safety devices 2 x 0.5 mm
2
When powered at 120 V or 230 V and used outdoors, use H05RN-F-type cables that comply with 60245
IEC 57 (IEC); whereas indoors, use H05VV-F-type cables that are 60227 IEC 53 (IEC) compliant.
Use RG58 cable up to 10 m long to connect the antenna.
If cable lengths differ from those specified in the table, establish the cable sections depending on the actual
power draw of the connected devices and according to the provisions of regulation CEI EN 60204-1.
For multiple, sequential loads along the same line, the dimensions on the table need to be recalculated
according to the actual power draw and distances. For connecting products that are not contemplated in this
manual, see the literature accompanying said products
