CAME F1000 User Manual

Manual FA01175-EN - 05/2018 - © CAME S.p.A. - The contents of this manual may change, at any time, and without notice.
-
Translated original instructions

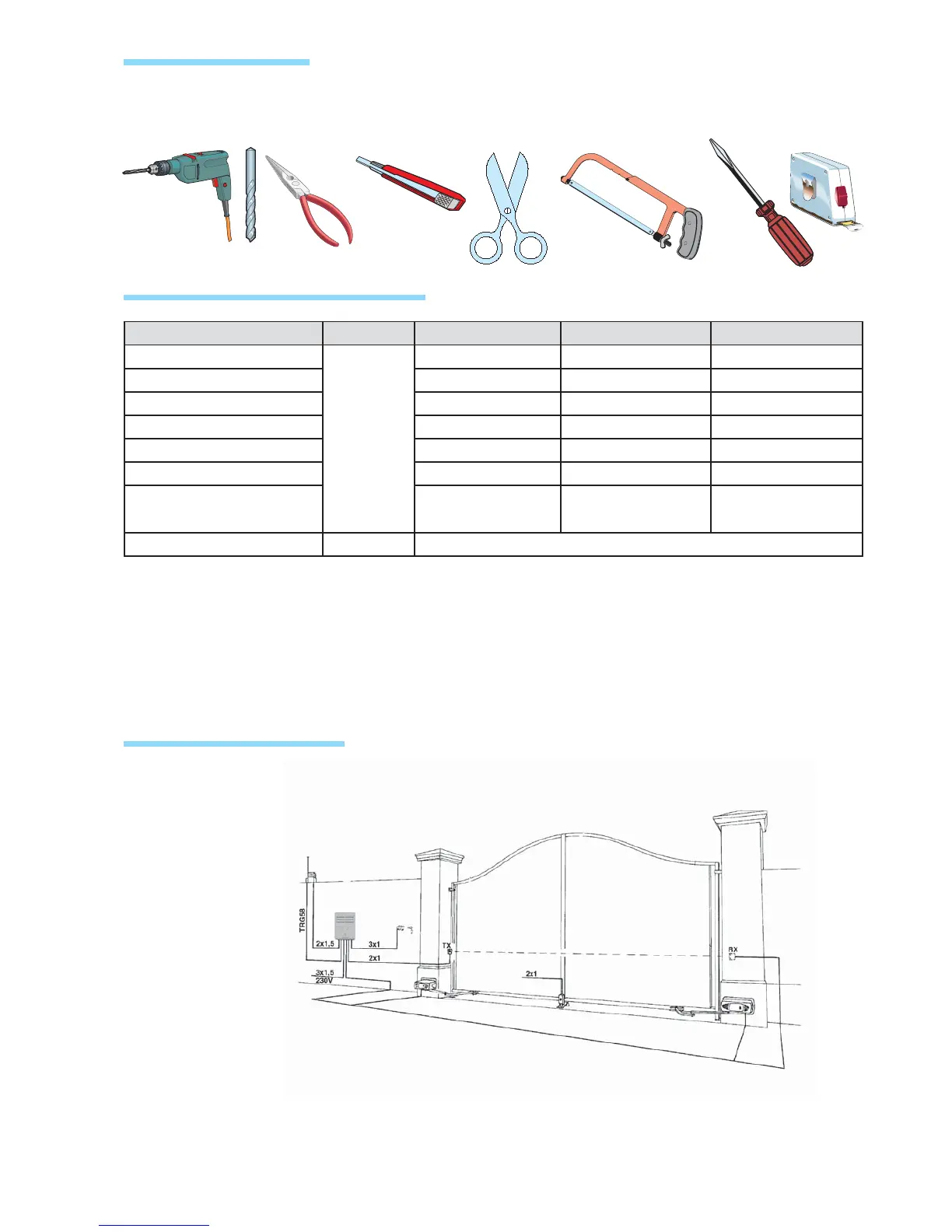

Tools and materials
Make sure you have all the tools and materials you will need for the installation at hand to work in total safety and compliance with the
current standards and regulations. The following figure illustrates the minimum equipment needed by the installer.
Cable list and minimum thickness
Standard installation
5 - Flashing light
6 - Selector switch
7 - Photocells
8 - Electric lock
1 - Operator
2 - Control panel
3 - Radio receiver
4 - Antenna
Connection Type of cable Cable length 1 < 10 m Cable length 10 < 20 m Cable length 20 < 30 m
230 V control panel power supply
FROR CEI
20-22
CEI EN
50267-2-1
3G x 1.5 mm
2
3G x 1.5 mm
2
3G x 2.5 mm
2
230 V motor power supply 3G x 1.5 mm
2
3G x 1.5 mm
2
3G x 2.5 mm
2
Flashing light 2 x 1.5 mm
2
2 x 1.5 mm
2
2 x 1.5 mm
2
Photocell transmitters 2 x 0.5 mm
2
2 x 0.5 mm
2
2 x 0.5 mm
2
Photocell receivers 4 x 1.5 mm
2
4 x 1.5 mm
2
4 x 1.5 mm
2
Accessories power supply 2 x 0.5 mm
2
2 x 0.5 mm
2
2 x 1 mm
2
Command and safety devices 2 x 0.5 mm
2
2 x 0.5 mm
2
2 x 0.5 mm
2
Antenna connection RG58 max. 10 m
N.B.: If the cable length differs from that specified in the table, then you must determine the proper cable diameter in the basis of
the actual power drawn by the connected devices and depending on the standards specified in CEI EN 60204-1.
For connections that require several, sequential loads, the sizes given on the table must be re-evaluated based on actual power
draw and distances. When connecting products that are not specified in this manual, please follow the documentation provided
with said products.
