450 mm
19 mm
ø 8 mm
ø 8 mm
ø 14 mm
M8
M8x110
Manual FA01175-EN - 05/2018 - © CAME S.p.A. - The contents of this manual may change, at any time, and without notice.
-
Translated original instructions
Front view
150 mm

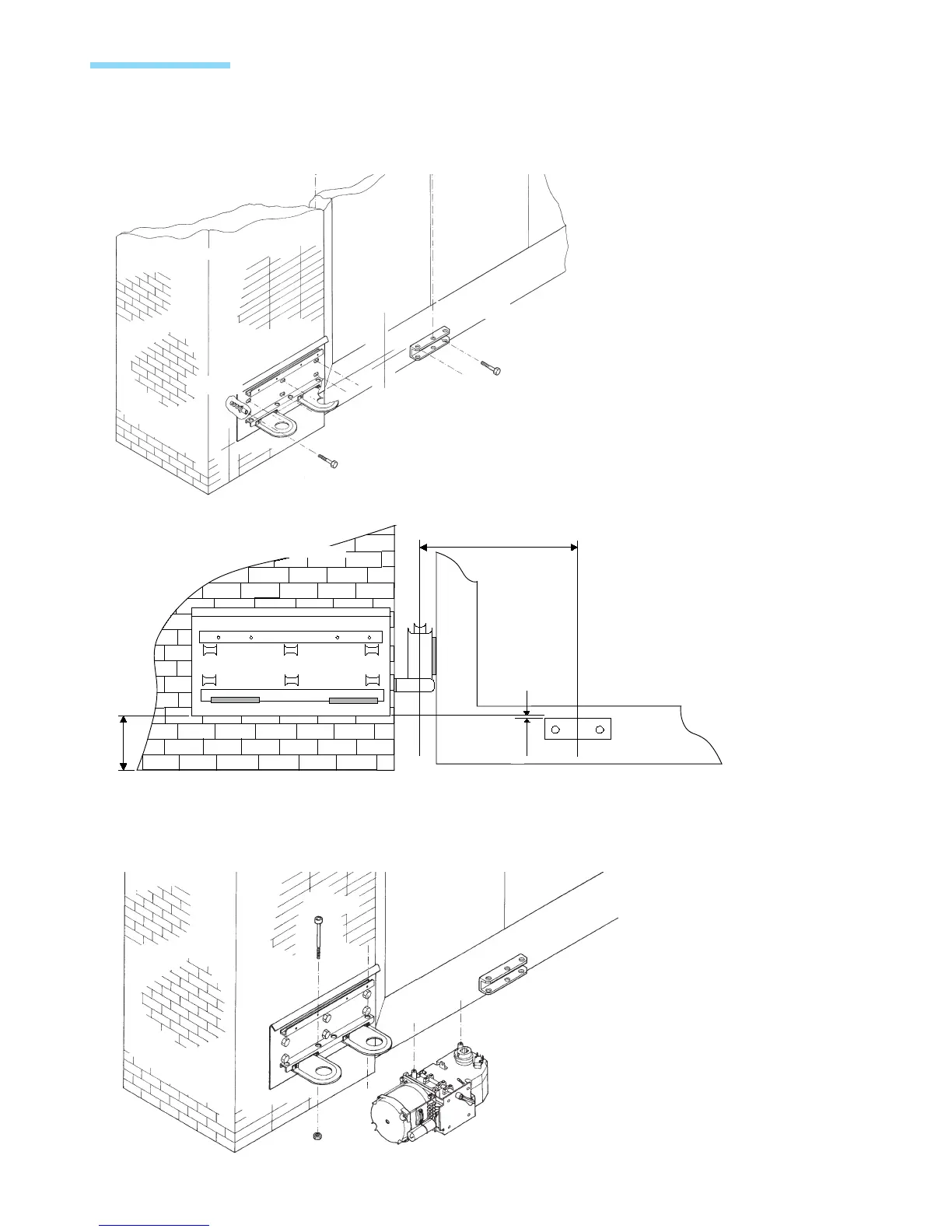

- Insert the gearmotor into the base plate and secure it using the two supplied M8x110 screws and M8 nuts.
- Secure the base plate to the pillar using ø8 screws and ø14 moulded inserts making sure the minimum distance of 150mm from the
ground is met.
- Secure the A bracket (using ø8 screws or by welding) to the gate leaf making sure the 450mm and 19mm distances measurements and
are met.
Mounting
Pillar
Bracket “A”
