CAME F1000 User Manual

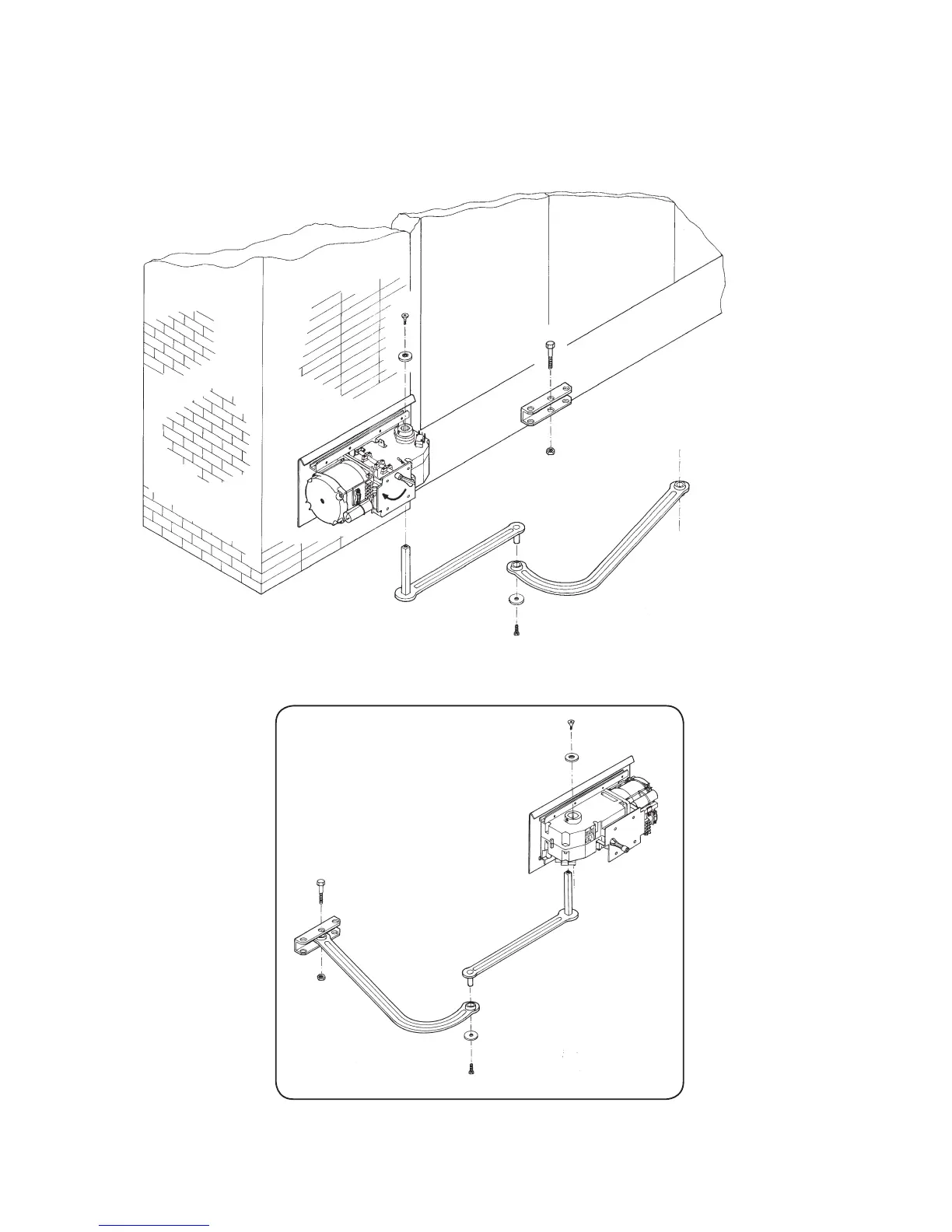

Fig. 2
Manual FA01175-EN - 05/2018 - © CAME S.p.A. - The contents of this manual may change, at any time, and without notice.
-
Translated original instructions
- Insert the straight semi-arm into the motor shaft. Apply the fl ared washer, the M6x20 screw and lock the semi-arm using the two
grub screws.
Join and secure the two arms using the washer and M8x16 screw. Release the motor (see p. 7) and secure the curved semi-arm to
the “A” bracket using the M12X50 screw and the M12 nut making sure it runs freely. For right-hand application see fi g. 2.

CAME F1000 Specifications

General

Brand	CAME
Model	F1000
Category	Gate Opener
Language	English
