ø 3,9x13
Manual FA01175-EN - 05/2018 - © CAME S.p.A. - The contents of this manual may change, at any time, and without notice.
-
Translated original instructions

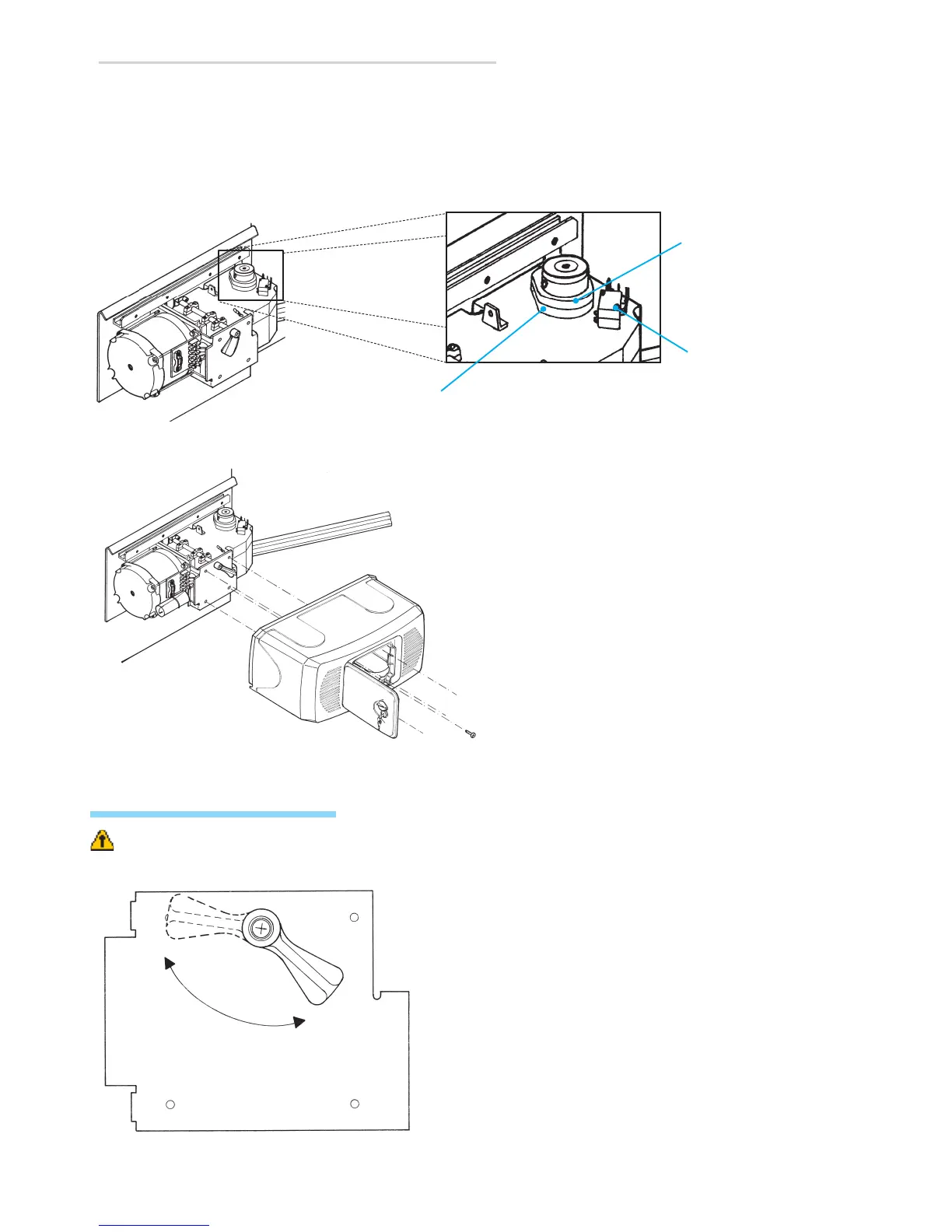

Adjusting the closing and opening-speed brake microswitches
During opening: release and move the door to the open position desired. Turn the upper cam until the microswitch is activated and screw
the microswitch is activated and screw the screw in the related cam.
During closure (F 1000 only): release the door and move it to the desired closing position. Turn the lower cam until the microswitch is
activated and screw the screw in the related cam.
Lower cam
Upper cam
Microswitch
In the event of power outages or breakdowns, release the gearmotor
using the apposite handle.
Once finished with mounting, electrical connections and
adjustments, lock the motor back into place and replace the cover
securing it with the 4 issued screws.
Manually releasing the motor
Release
Lock
Handle
Carry out when motor is not in operation
