CAME F1000 - Gearmotor Connection and Adjustment; Connecting Gearmotors; Motor Torque Limiter

KRONO
ATI
FAST
FERNI
KRONO
ATI
FAST
FERNI
U V W X Y E
4 3 2 1
p. 6 - Manual FA0 0 679 - EN v. 1- 12/2017 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice.
* 120 V AC version if available
Motor's torque limiter
To vary the motor torque, move the faston as shown to one of the four positions: 1 min ÷ 4 max.
Gearmotor (M1) 120 V AC* or 230 V AC,
delayed when opening.
Gearmotor (M2) 120 V AC* or 230 V AC,
delayed when closing.

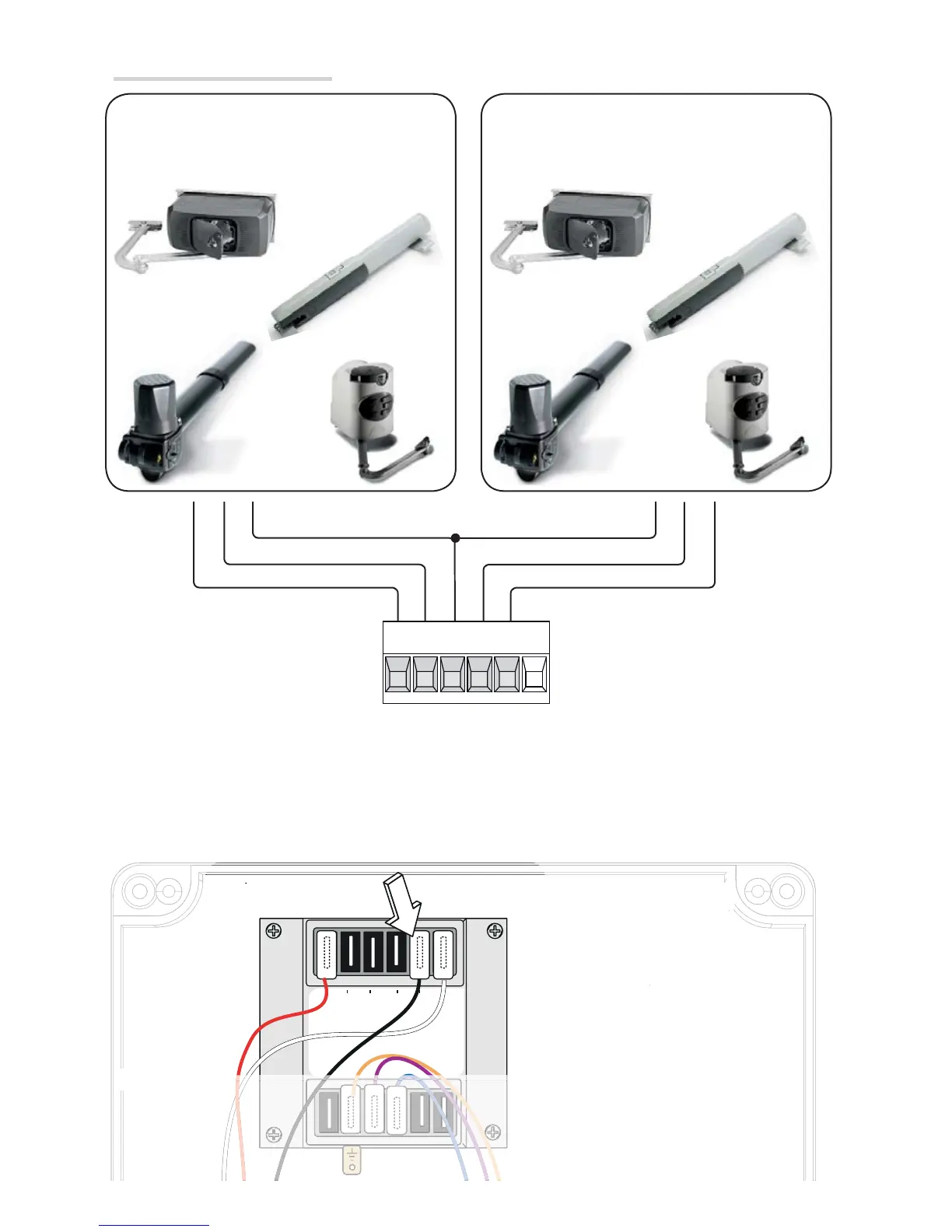

Connecting the gearmotors
