Manually open the gate leaf fully (max. 110°). Use the central screw to fasten the cam.
These settings require the gearmotor to be released (see releasing the gearmotor).

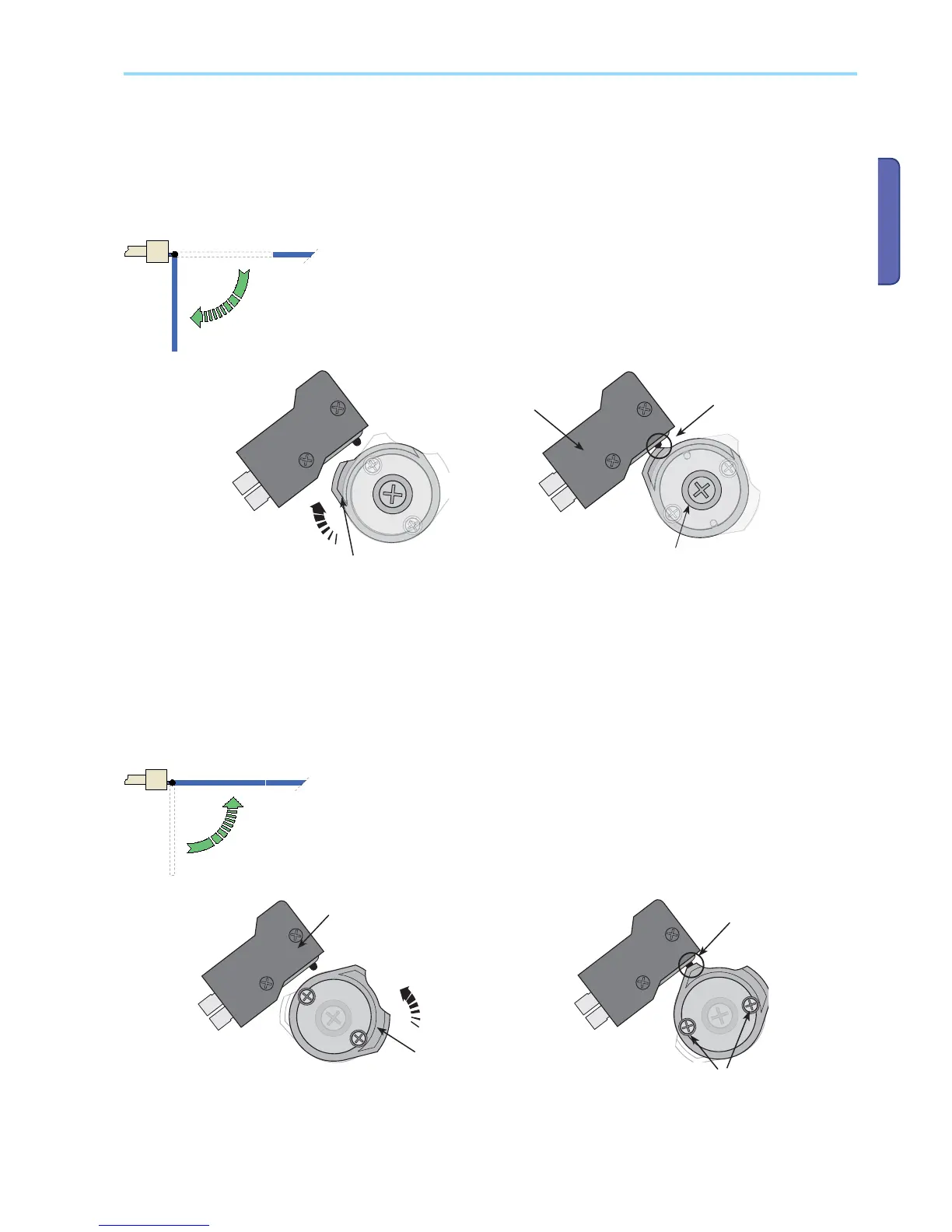

Micro-switch setting with left-side installed gearmotor (inside view)
Micro-switch
Lower cam fastening screw
Lower cam
Switch
Upper cam fastening screw
Switch
Upper cam
Micro-switch
Manually close the gate leaf, turn the lower cam counter clockwise until the micro switch is activated. Use the lateral screws to
fasten the cam.
