4 01/2015
© CAME S.p.A. - The data and information in this manual may be changed at any time and CAME S.p.A. is under no obligation to inform users of said changes

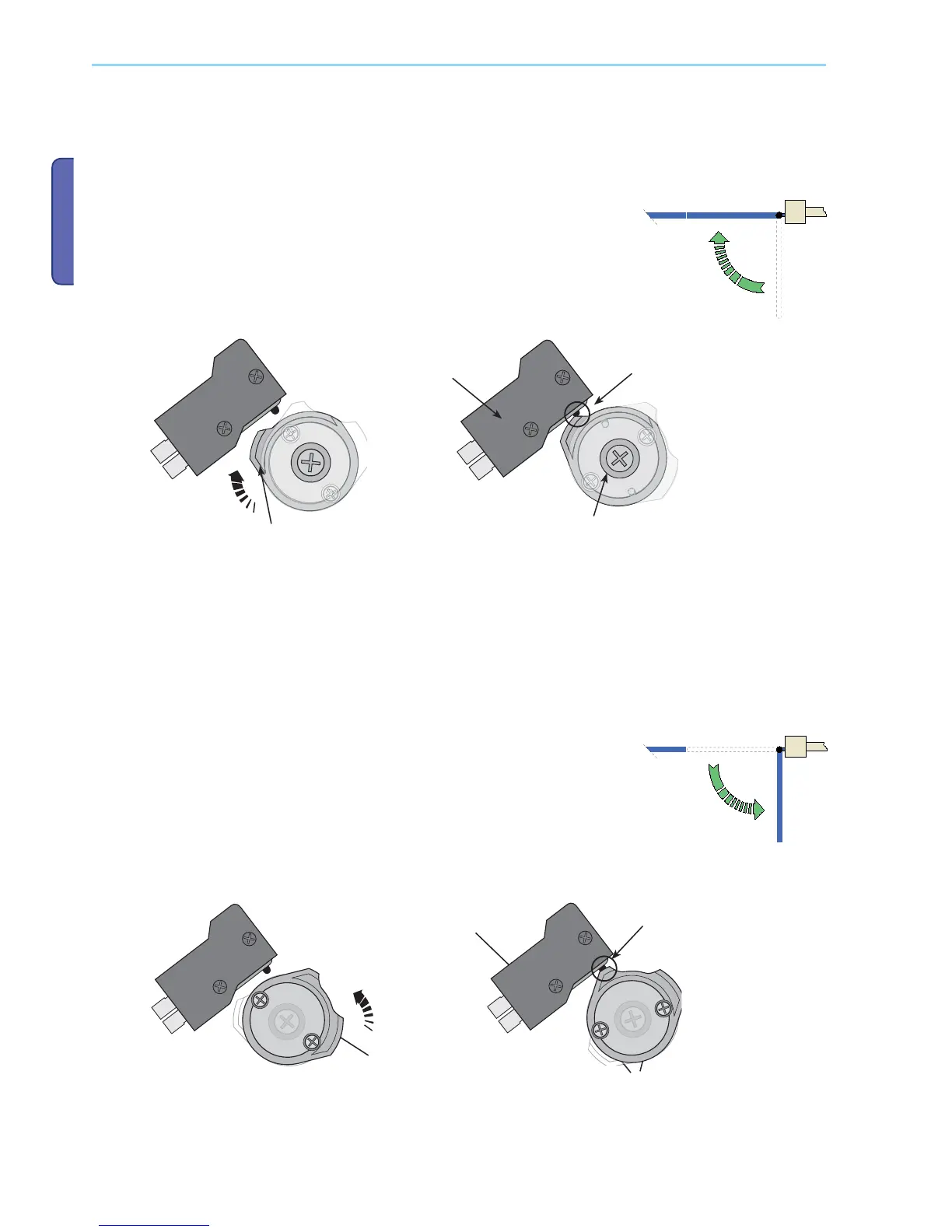

Manually open the gate leaf to max. 110°, turn the upper cam counter clockwise until the micro-switch is activated. Use the lateral
screws to fasten the cam.
Micro-switch
Lower cam fastening screw
Lower cam
Switch
Manually close the gate leaf, turn the lower cam clockwise until the micro-switch is activated. Use the central screw to fasten the
cam.
Upper cam fastening screw
Switch
Upper cam
Micro-switch
These settings require the gearmotor to be released (see releasing the gearmotor).
Micro-switch setting with right-side installed gearmotor (inside view)
