CAME Ferni Series

STAGE 3
INSTALATION SECTION
3.1 - Installing the Motors
INSERT THE MOTOR INTO THE MOTOR BASE PLATE IN ALIGNMENT WITH
THE 4 PRE-DRILLED HOLES AND FIX IT WITH THE TWO M8 X 110 BOLTS &
NUTS SUPPLIED. FOR RIGHT HAND INSTALLATIONS, REVERSE THE
POSITION OF THE MOTOR AND USE THE SECOND PAIR OF HOLES
(SEE FIGURE 7)
9

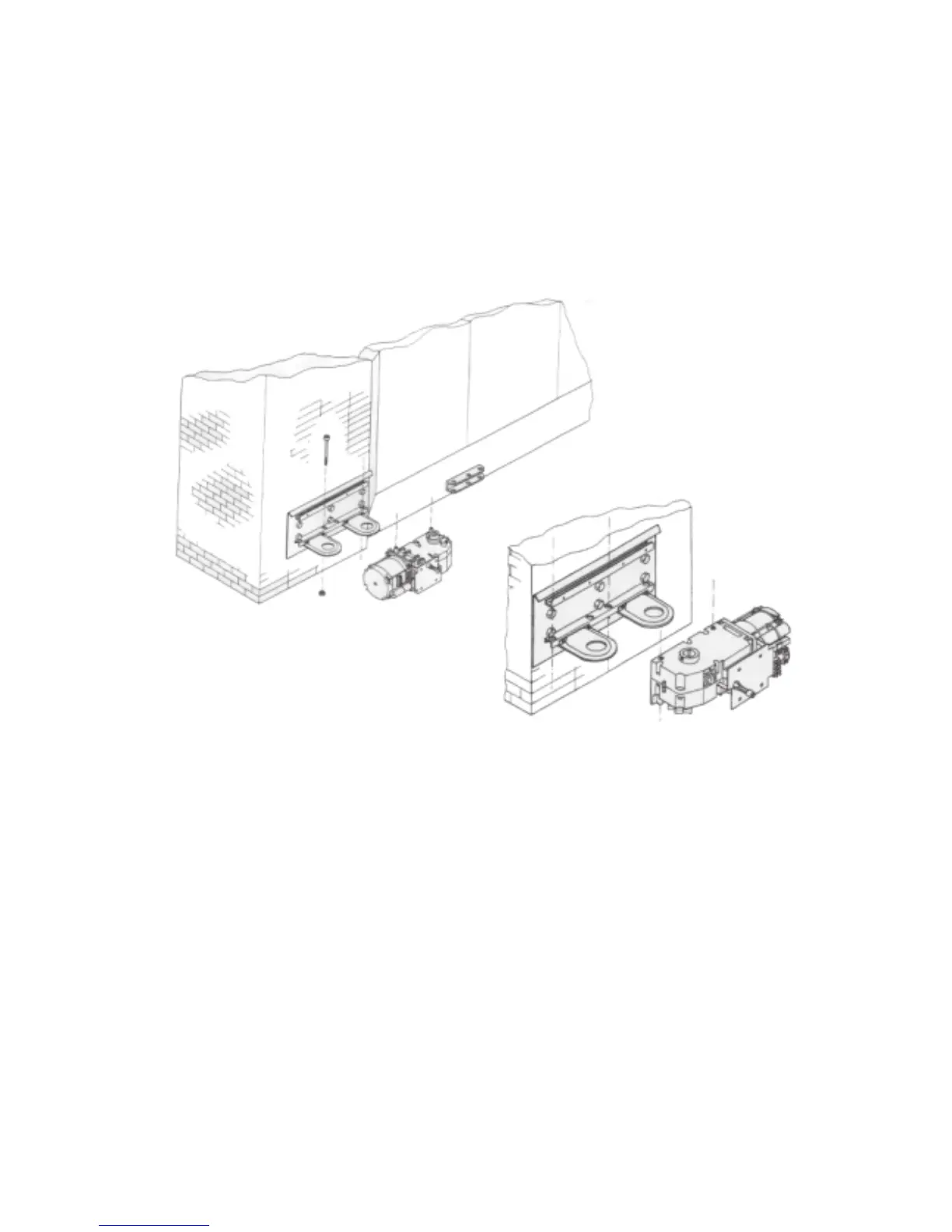

Fig 7
