1.2 - Mounting the Motor Base Plate
USING SUITABLE ANCHOR BOLTS OR CHEMICAL RESIN FOR BRICK PIER
SECURITY MOUNT THE MOTOR PLATE TO THE BRICK PIER.
FOR WOODEN POSTS IT IS ADVISED TO FIX THE MOTOR PLATE TO THE
POST. A THREADED BAR SHOULD BE PLACED ALL THE WAY THROUGH THE
POST THEN BOLTED.
4
Fig 3
Fig 2

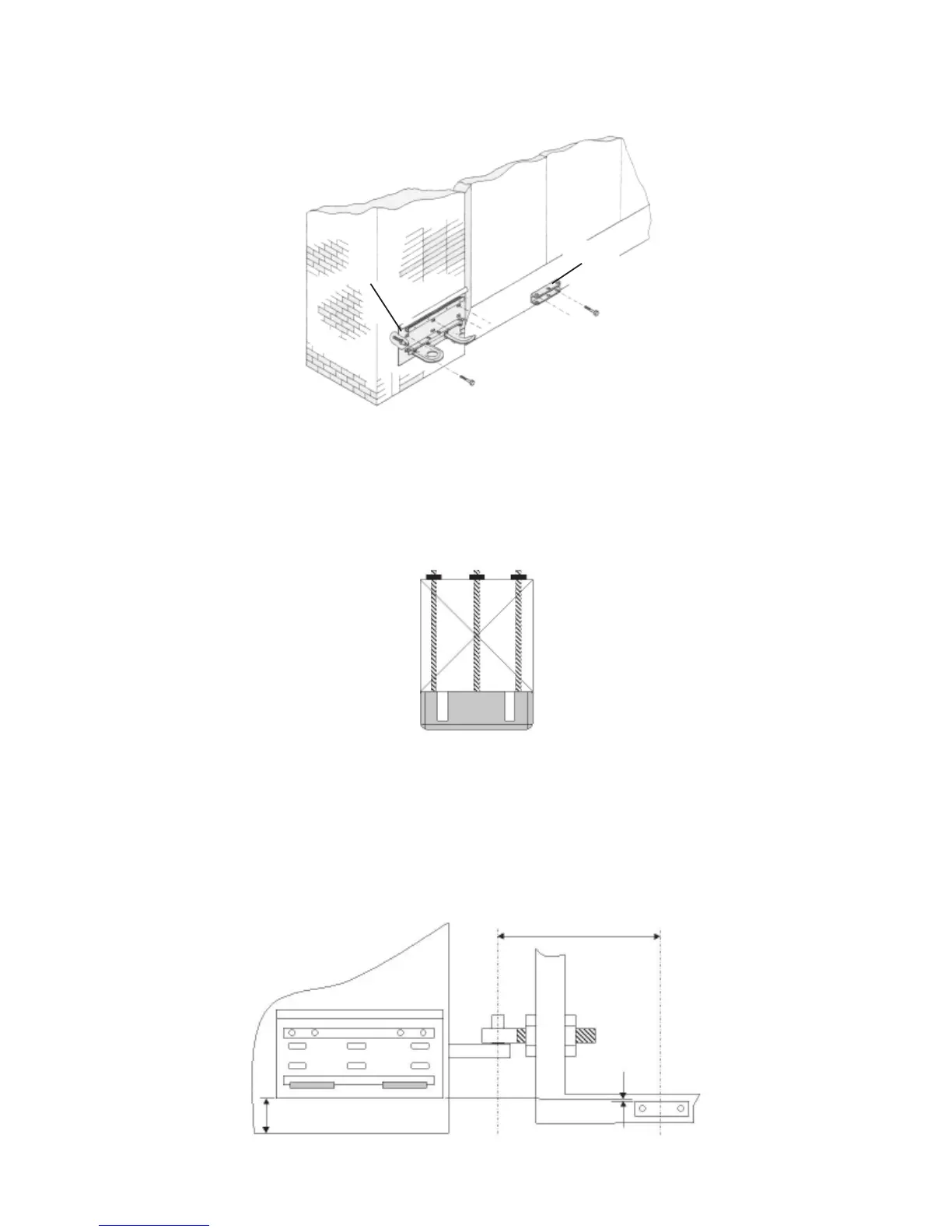

WHEN MOUNTING THE MOTOR PLATE BE SURE TO RESPECT THE 150mm
DIMENSION FROM THE BOTTOM OF THE MOTOR PLATE TO GROUND LEVEL.
THIS IS TO ENSURE SUFFICIENT CLEARENCE FOR THE TRANSMISSION
DRIVE ARM TO BE INSERTED THROUGH THE MOTOR.
ENSURE THAT THE DISTANCE BETWEEN THE CENTRE OF THE FRONT
BRACKET ‘A’ 450mm. THE FRONT GATE BRACKET MUST BE FIXED LOWER
THAN THE MOTOR PLATE BY 19mm AS SHOWN
150 mm
19mm
Fig 4
Bracket “A”
Base Plate
To Next Page
