5.2 - Opening & Closing the Gates
2. ONCE YOU HAVE PROVED THE
MOTOR DIRECTION USE
TERMINALS 2 & 7 TO OPEN AND
CLOSE THE GATES WITH A
TRAILING WIRE ONCE AGAIN INTO
TERMINAL 2, MOMENTARILY
TOUCHING TERMINAL 7.
1. MOMENTARILY PULSE TERMINALS
2 & 3 WITH A PIECE OF WIRE
TRAILING FROM TERMINAL 2 AND
MOMENTARILY TOUCHING
TERMINAL 3.
THE GATES SHOULD START TO
OPEN. IF THEY START TO CLOSE
TURN THE POWER OFF TO THE
CONTROL PANEL AND CHANGE
AROUND EITHER U-V (MOTOR 1)
OR X-Y (MOTOR 2) TO CHANGE
THE MOTOR DIRECTION.

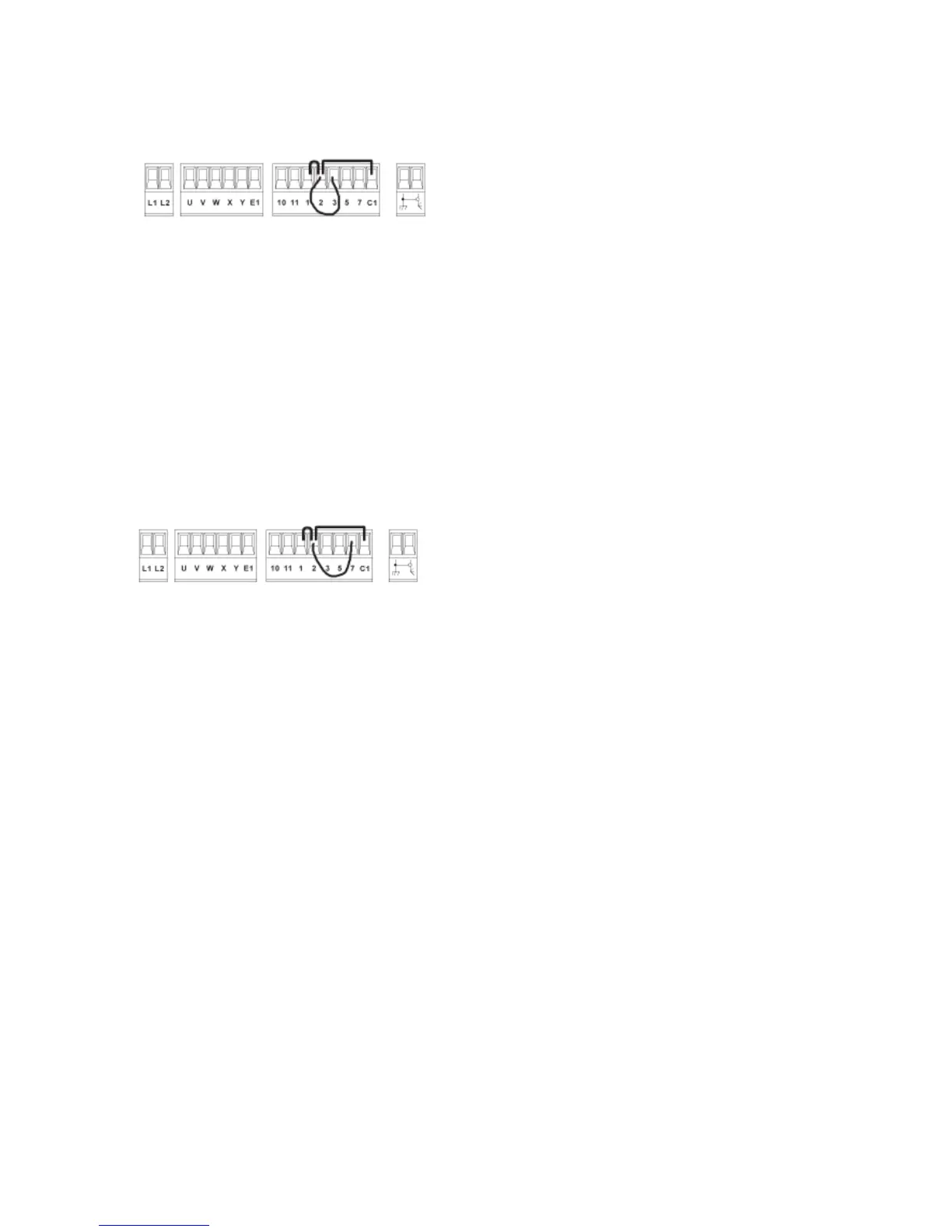

Fig 19
Fig 20
