TRIMMER TR2M

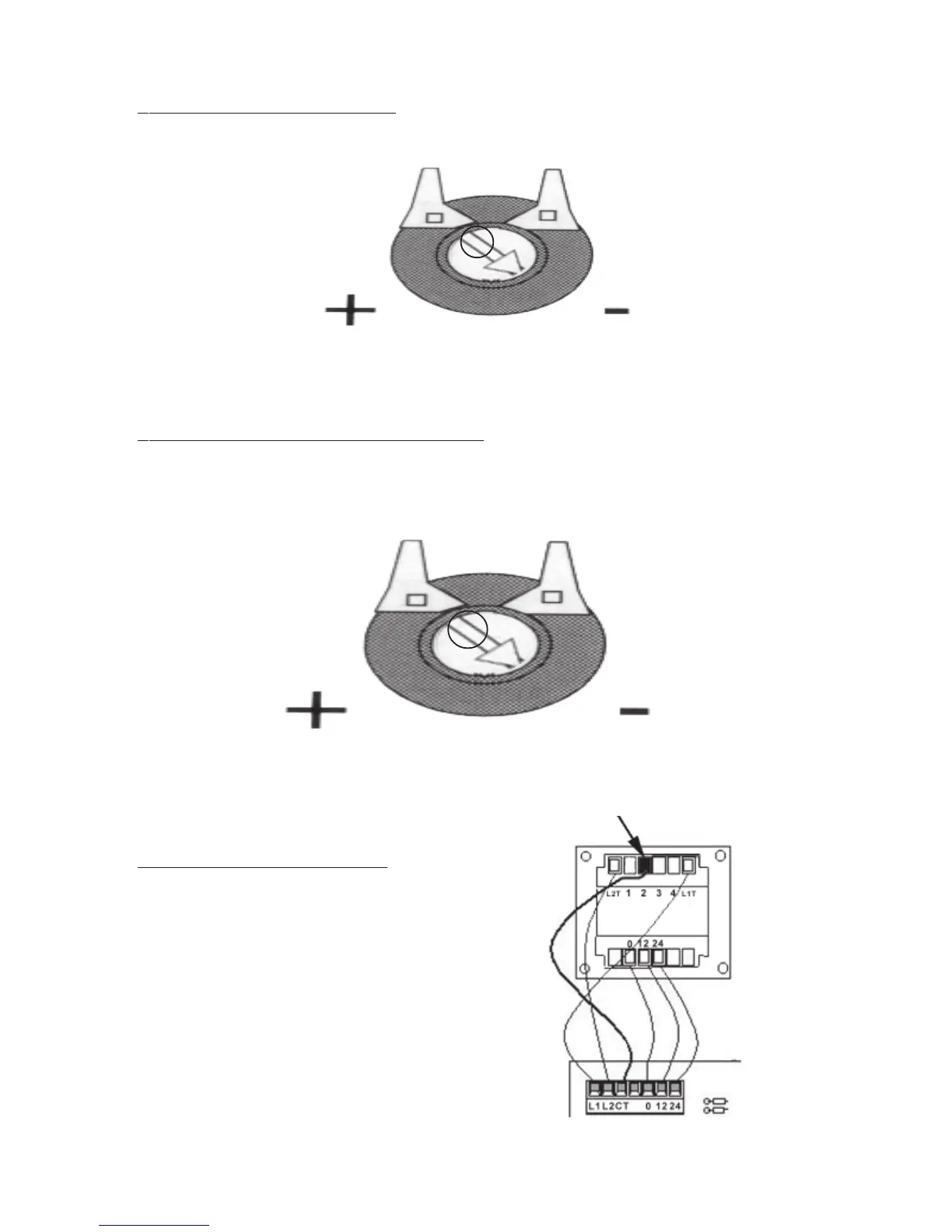

5.3 - Control Panel Adjustments
TRIMMER TL
1. TO DELAY ONE GATE LEAF, ADJUST POTENIOMETER TR2M TO DELAY
THE CLOSING OF GATE NO. 2 IN THE CLOSING CYCLE
2.
TO SET THE TOTAL RUNNING TIME OF THE MOTORS, ADJUST
POTENIOMETER TL TO ALLOW THE MOTORS TO RUN FOR A FURTHER
5-7 SECONDS AFTER THE MOVEMENT CYCLE HAS BEEN COMPLETED
(I.E FULLY OPEN OR FULLY CLOSED)
3. CHECK THE SENSITIVITY OF THE GATES
BY TRYING TO PHYSICALLY STOP THE
GATE AND ADJUST THE POWER
SETTINGS ON THE TRANSFORMER
ACCORDINGLY. IF MORE POWER IS
NEEDED FOR HEAVIER GATES THEN
SWITCH OFF POWER AND MOVE
TRANSFORMER WIRE UP TO SETTING 2.
FOR RECHECKING SENSITIVITY, REPEAT
PROCESS UP TO 3 OR 4 IF EVEN MORE
POWER IS NEEDED.
Fig 21
Fig 22
Fig 23
19
