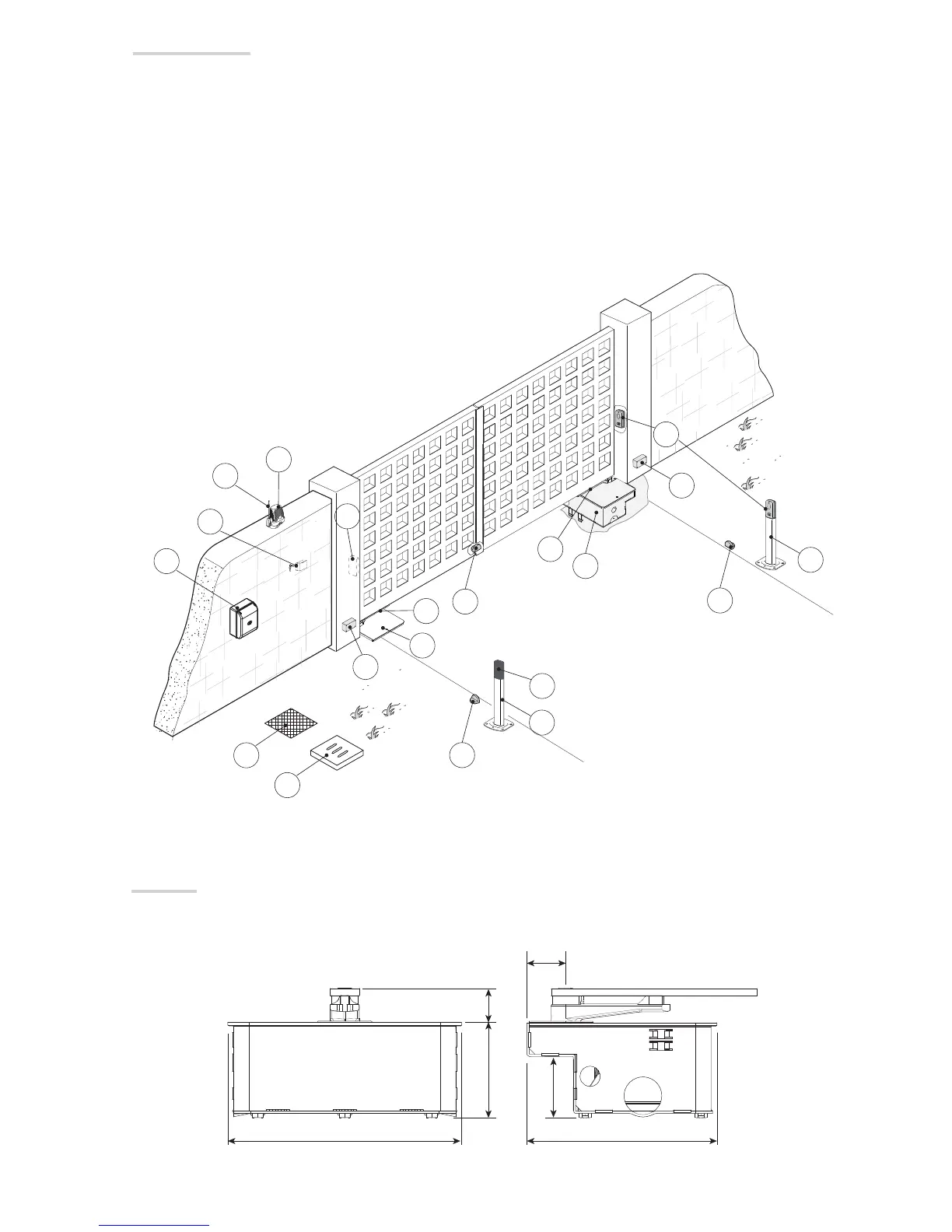

Example of a system
1. Gearmotor with foundation box
2. Control panel
3. Junction box
4. Key selector
5. Antenna
6. Flashing light
7. Photocells
8. Photocell post
9. Latch
10. Inspection chamber
11. Drainage chamber
12. Mechanical stop
Dimensions

CAME FROG-A Specifications

General

Max Gate Weight	800 kg
Max Gate Length	3.5 m
Power Supply	230 V AC
Motor Voltage	230 V AC
Duty Cycle	30%
Operating Temperature	-20°C to +55°C
Protection Rating	IP67
Control Type	Remote Control
