CAME FROG-A User Manual

Page
8
8 - Manual code:
119AS45EN
119AS45 EN ver.
7
7 02/2016 © CAME S.p.A. - The data and information provided in this manual are subject to change at any time without prior notice by CAME S.p.A.

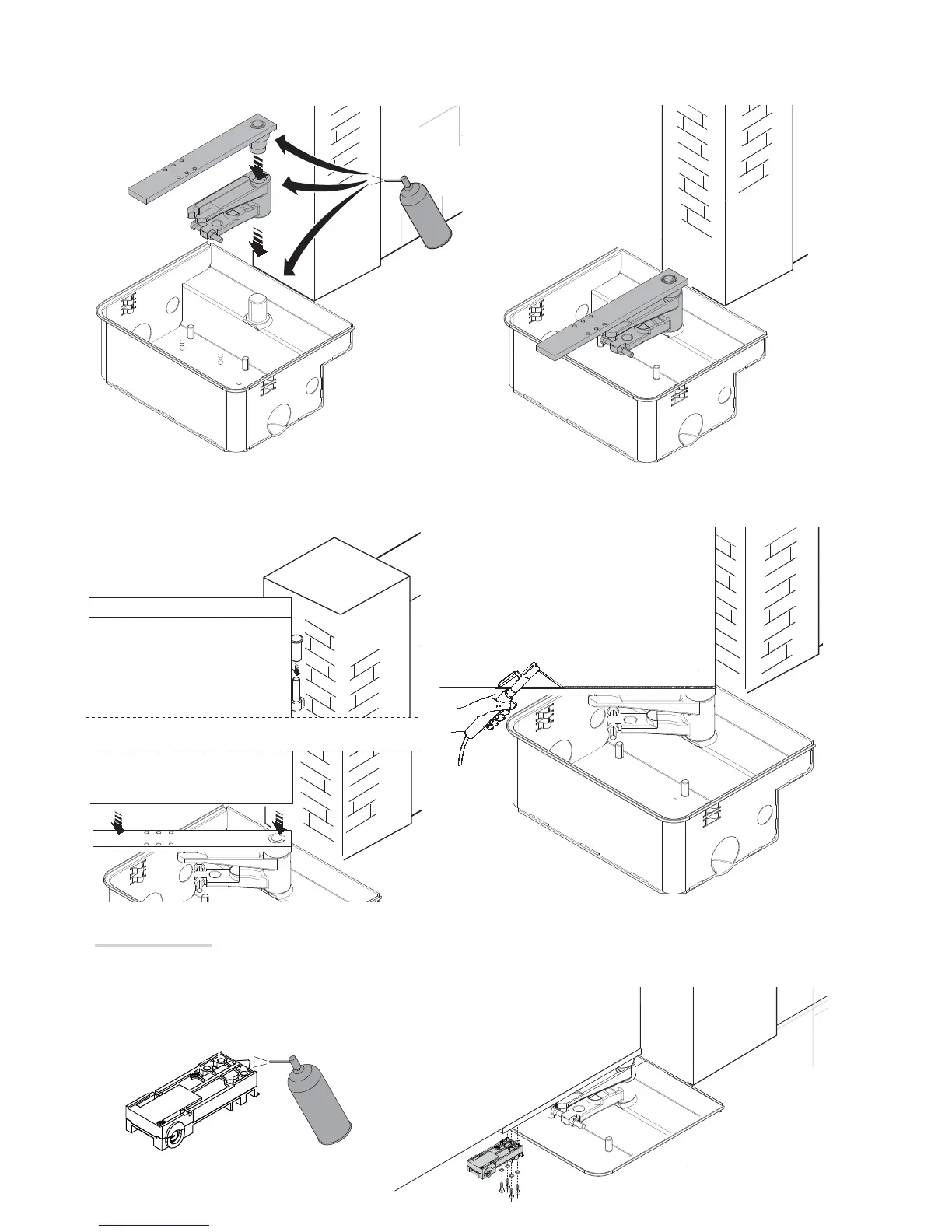

Lubricate the foundation case pin, the latch and the gate bracket pin.
Install the gate leaf, inserting the upper hinge.
Check that the leaf opens and closes without difficulty.
Carefully fix or weld the door to the gate fixing bracket.
Securing the release
It is important to lubricate the release tab; follow the instructions in the manual of the device selected for information on installation and operation.

CAME FROG-A Specifications

General

Max Gate Weight	800 kg
Max Gate Length	3.5 m
Power Supply	230 V AC
Motor Voltage	230 V AC
Duty Cycle	30%
Operating Temperature	-20°C to +55°C
Protection Rating	IP67
Control Type	Remote Control
