p.
11 - Manual code:
FA01030-EN v.
1- 01/2018 - © Came S.p.A. - The manual's contents may be edited at any time without notice.
Release the gearmotor and manually turn the spring to increase or reduce the traction. The boom should stabilise at 45°.
Fix the counter nut and lock the gearmotor again.
Check the spring is working properly.
With the boom positioned vertically, the spring is not taut.
With the boom positioned horizontally, the spring is taut.
Release the gearmotor and position the boom vertically. Lock the gearmotor again.

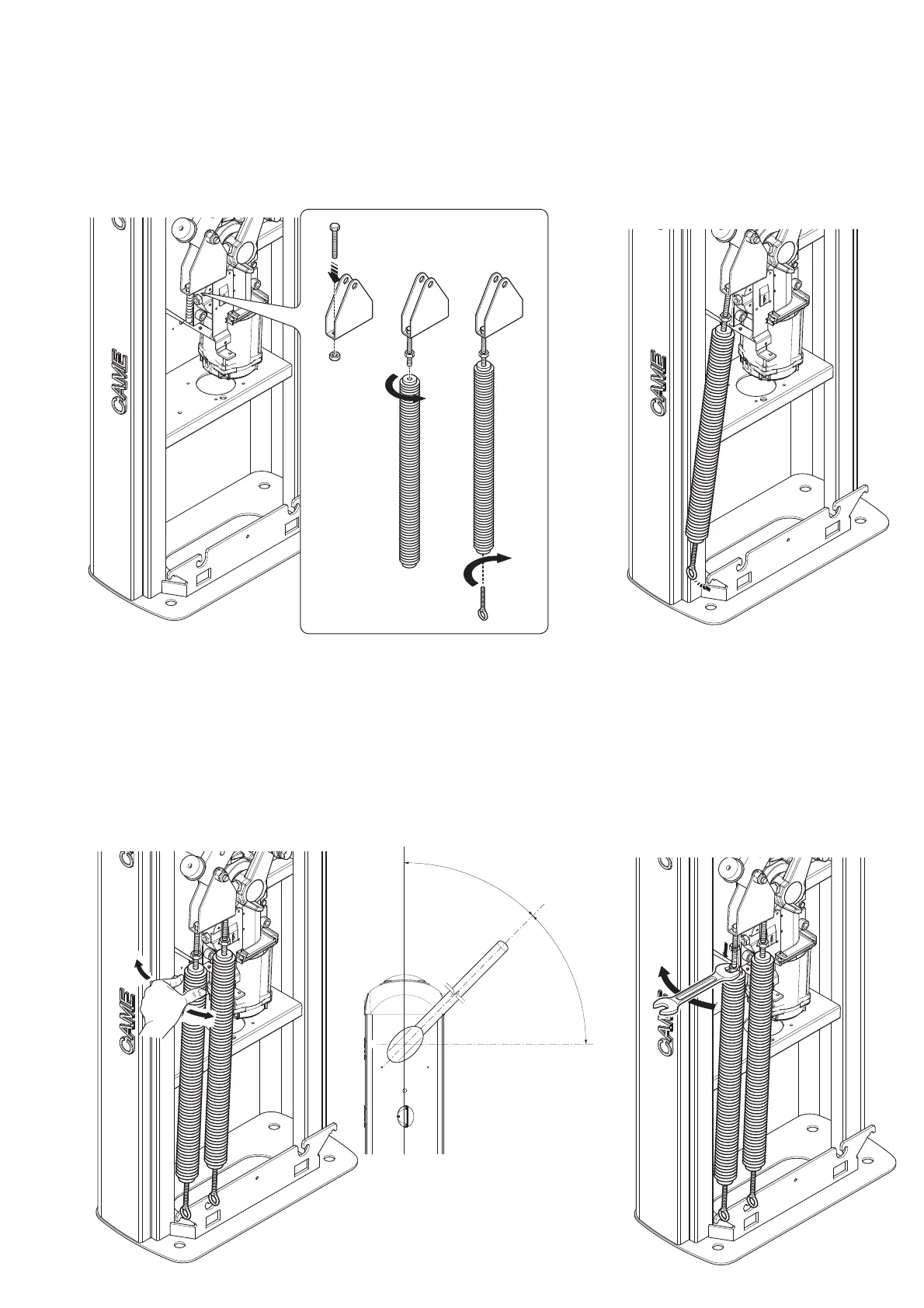

Install the spring on the barrier as follows:
- insert the UNI5739 M12x70 screw in the bracket and tighten the UNI5588 M12 nut to the screw .
- fasten the screw to the spring ;
- screw the eyelet rod on the end of the spring .
Hook the rod onto the anchoring bracket.
Follow the same procedure for the second spring, where applicable.
