CAME GARD 8 SERIES User Manual

UNI6954 Ø 3,9x19
p.
10
10 - Manual code:
FA01030-EN
FA01030-EN v.
1
1- 01/2018 - © Came S.p.A. - The manual's contents may be edited at any time without notice.

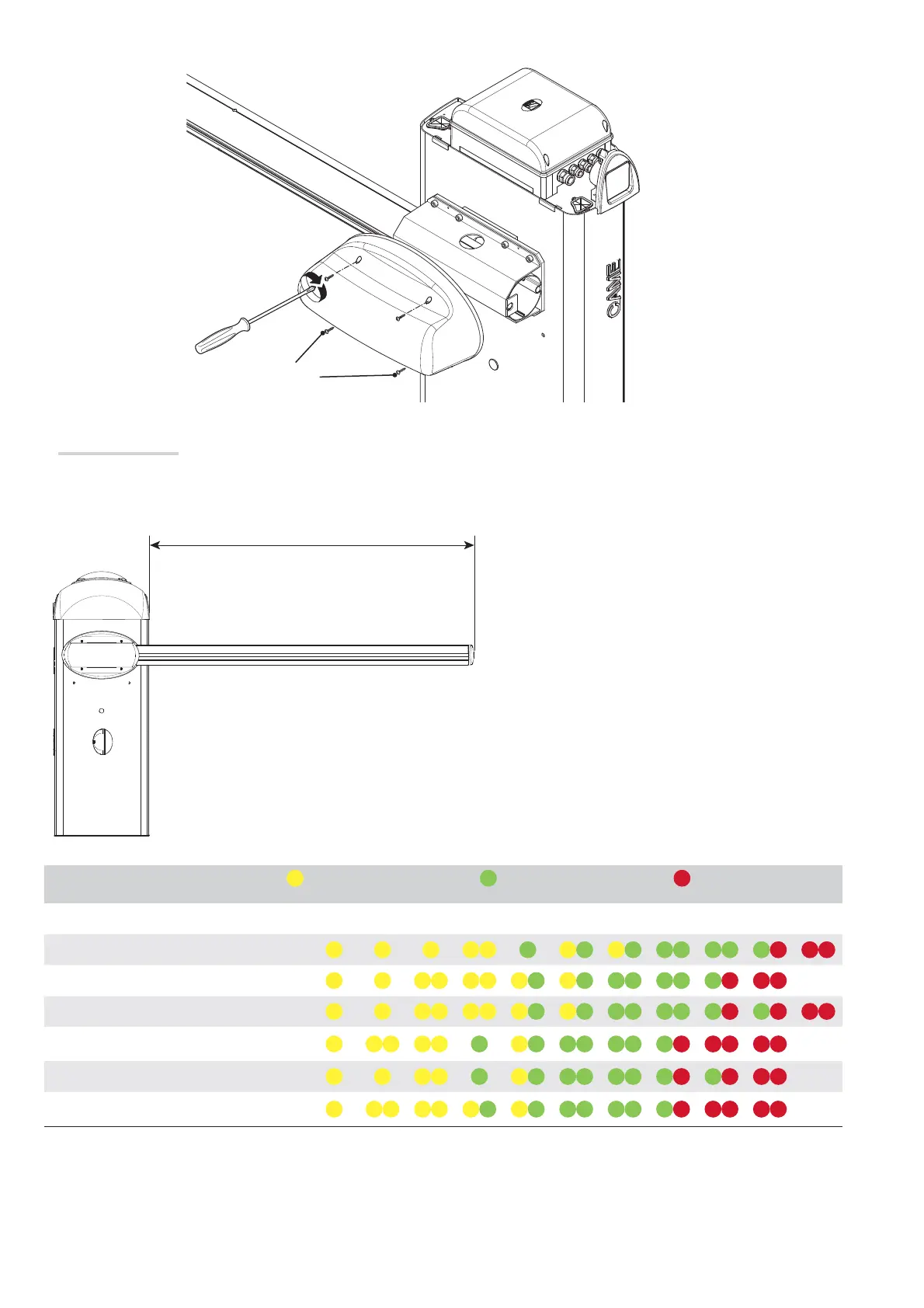

Place the anti-shearing protective cover over the boom-attachment cover and fasten it in place using the screws.
PASSAGE CLEARANCE (max. 7.60 m)
Balancing the boom
Before balancing the boom, use the table below to check that the chosen spring, accessories and passage clearance are compatible.
 The boom includes the transparent groove cover and end cap.
A
001G02040 Ø 40 mm
springs
B
001G04060 Ø 50 mm
springs
C
001G06080 Ø 55 mm
springs
BOOM COMPOSITION (m) 2 to 2.5 2.5 to 3 3 to 3.5 3.5 to 4 4 to 4.5 4.5 to 5 5 to 5.5 5.5 to 6 6 to 6.5 6.5 to 7 7 to 7.6
Boom
A A A A A B A B A B B B B B B C C C
Boom with 001G02808 swing post
A A A A A A A B A B B B B B B C C C
Boom with 001G28401 luminous cord
A A A A A A A B A B B B B B B C B C C C
Boom with 001G02808 swing post and 001G28401
luminous cord
A A A A A B A B B B B B B C C C C C
Boom with skirt 001G0465
A A A A B A B B B B B B C B C C C
Boom with 001G0465 skirt and 001G028401 luminous
cord
A A A A A A B A B B B B B B C C C C C
⚠
WARNING!
001G02802 cannot be used on barriers fitted with booms fitted with the 001G0465 skirt or 001G02808 swing post
001G02808 For passage widths of up to 7 m.
001G02807 MUST be used with passage widths exceeding 7 m.
001G0465 - 001G02808 Cannot be used together.

CAME GARD 8 SERIES Specifications

General

Model	GARD 8 SERIES
Type	Automatic Barrier
Motor voltage	24 V DC
Power	300 W
Operating temperature	-20°C to +55°C
Protection rating	IP54
Input Voltage	230 V AC
Output Voltage	24 V DC
Protection Degree	IP54
Power supply	230 V AC
Opening time	4 to 8 seconds
