CAME GARD 8 SERIES User Manual

10 11 E1 E6 Rx Tx 1 2 3 3P 4 5 7 CX CY
A B GND A B S1 GND
CAME
ACCESS CONTROL
AF
R700
R800
p.
14
14 - Manual code:
FA01030-EN
FA01030-EN v.
1
1- 01/2018 - © Came S.p.A. - The manual's contents may be edited at any time without notice.
Red
Black
White
Blue
CLOSE function from control device (N.O. contact).
Warning: in HOLD-TO-RUN mode, the control device must
be connected to 2-4
.

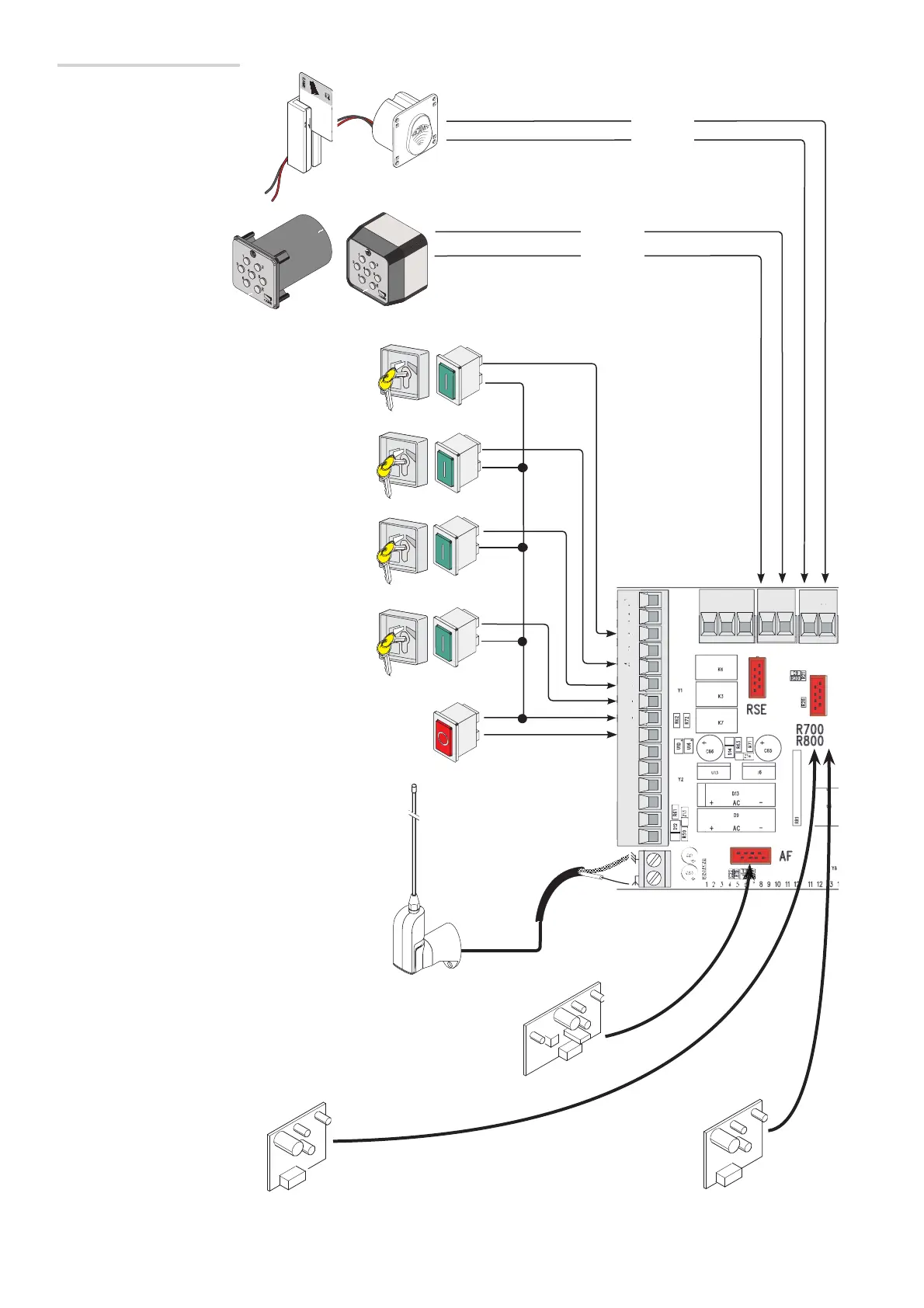

Command and control devices
Antenna with RG58 cable
STOP button (N.C. contact). For stopping the boom while
excluding automatic closing. To resume movement either press
the control button or any other control device.
 If unused, select 0 (Disabled) from the function F 1.
OPEN-CLOSE-INVERT (step-by-step) function from
control device (N.O. contact).
Keypad selector
Transponder or card reader
 Insert the decoding card (R700) for the
TSP00 sensor or LT001 card reader to be
recognised.
 Insert the decoding card (R800)
so that the keypad selector is
recognised.
WARNING! To ensure correct operation, before inserting any plug-in card (e.g. AF, R800), LINE VOLTAGE MUST BE DISCONNECTED.
If installed, disconnect the batteries.
 Insert the AF card to control the
barrier via a transmitter.
Warning! OPEN function from control device (N.O.
contact), to be connected only for paired or alternate
systems. (See PAIRED or ALTERNATE CONNECTION)
OPEN function from control device (N.O. contact).
Warning: in HOLD-TO-RUN mode, the control device
must be connected to 2-3.

CAME GARD 8 SERIES Specifications

General

Model	GARD 8 SERIES
Type	Automatic Barrier
Motor voltage	24 V DC
Power	300 W
Operating temperature	-20°C to +55°C
Protection rating	IP54
Input Voltage	230 V AC
Output Voltage	24 V DC
Protection Degree	IP54
Power supply	230 V AC
Opening time	4 to 8 seconds
