10 11 E1 E6 Rx Tx 1 2 3 3P 4 5 7 CX CY
RX TX
./ # .#
10 11 E1 E6 Rx Tx 1 2 3 3P 4 5 7 CX CY
RX TX
10 11 E1 E6 Rx Tx 1 2 3 3P 4 5 7 CX CY
p.
15 - Manual code:
FA01030-EN v.
1- 01/2018 - © Came S.p.A. - The manual's contents may be edited at any time without notice.
DIR
photocells
DELTA-S
photocells
DELTA
photocells

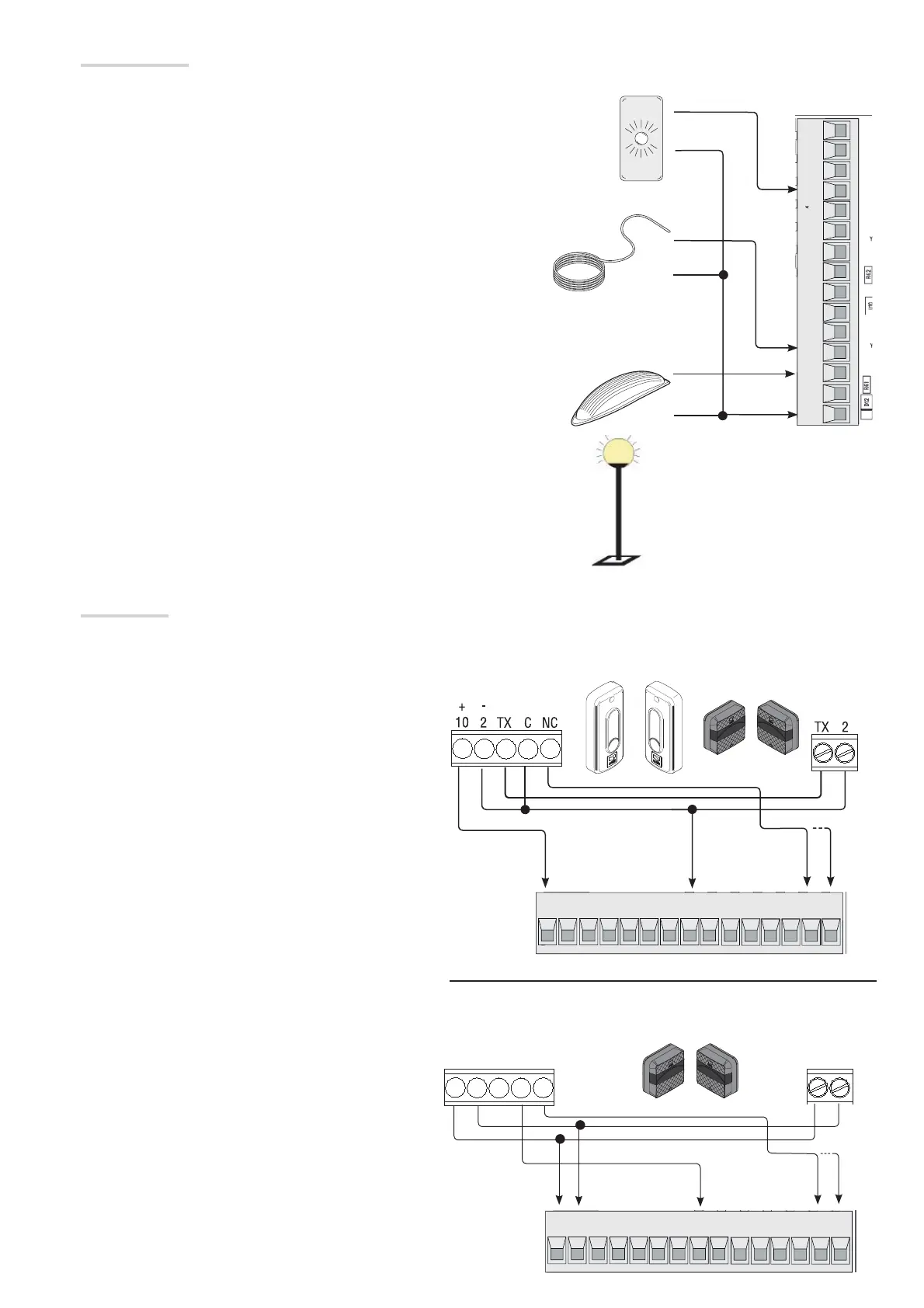

Safety devices
Configure the (N.C.) contact CX or CY, input for
safety devices such as photocells.
See input functions CX (Function F2) or CY (Function F3).
C1 reopening while closing. When the boom is closing,
opening the contact causes the motion to invert until fully
opened;
C4 obstacle stand-by. It stops the boom, if moving, and
restarts movement once the obstacle has been removed.
C5 immediate closing.
Closing the boom after a vehicle has
passed through the operating area of the safety devices.
C9 immediate closure with obstacle stand-by during
closing.
Closing the boom after a vehicle has passed through
the operating area of the safety devices.
During closing, the devices also run functionC4, obstacle
stand-by.
If the CX and CY contacts are not used, they must be
disabled during programming.
Barrier indicator light (contact rated for: 24 V AC - 3 W max).
It shows the barrier status; see function F 10.
Luminous cord (contact rating: 24 V AC - 32 W max).
It flashes when the boom opens and closes; see function F 15.
Dome flashing light (contact rating: 24 V AC - 25 W max).
It flashes when the barrier opens and closes.
Alternatively, connect a beacon or courtesy light (contact rating: 24 V AC - 25
W max).
Auxiliary connection option: an outdoor light, which can be positioned freely, for
better illumination in the parking/driveway area.
Beacon: it stays on from the moment the boom begins to open until it is fully
closed (including automatic closing time).
Courtesy light: it stays on for a set time of between 60 and 180 seconds.
Signalling devices
