CAME GARD 8 SERIES User Manual

ESC < > ENTER
2
2
ESC < > ENTER
2
U
ESC <
ES
<
<
> ENTE
EN
TE
>
>
ESC < > ENTER
C
L
ESC < > ENTER
I
ESC < > ENTER
I
U
ESC <
E
<
<
> ENT
E
EN
NT
>
ESC < > ENTER
8
ACCESS CONTROL
p.
24
24 - Manual code:
FA01030-EN
FA01030-EN v.
1
1- 01/2018 - © Came S.p.A. - The manual's contents may be edited at any time without notice.
1. Select U 2.
Press ENTER to confirm.
2. Use the arrow keys to select the number of the user you want to delete.
Press ENTER to confirm...
3. ... CLr will appear on the screen to confirm deletion.
Deleting a single user
1. Select U 1.
Press ENTER to confirm.
2. Select a command to associate with the user.
The commands are:
- step-by-step (open-close) = 1;
- open = 3;
- partial/pedestrian opening = 4.
 The partial/pedestrian command only appears
if function F 49 is active.
Press ENTER to confirm...
3. ... an available number between 1 and 25
flashes for a few seconds. This number is
assigned to the user after the code has been sent
from the transmitter or another control device
(sensor, card reader or keypad selector).

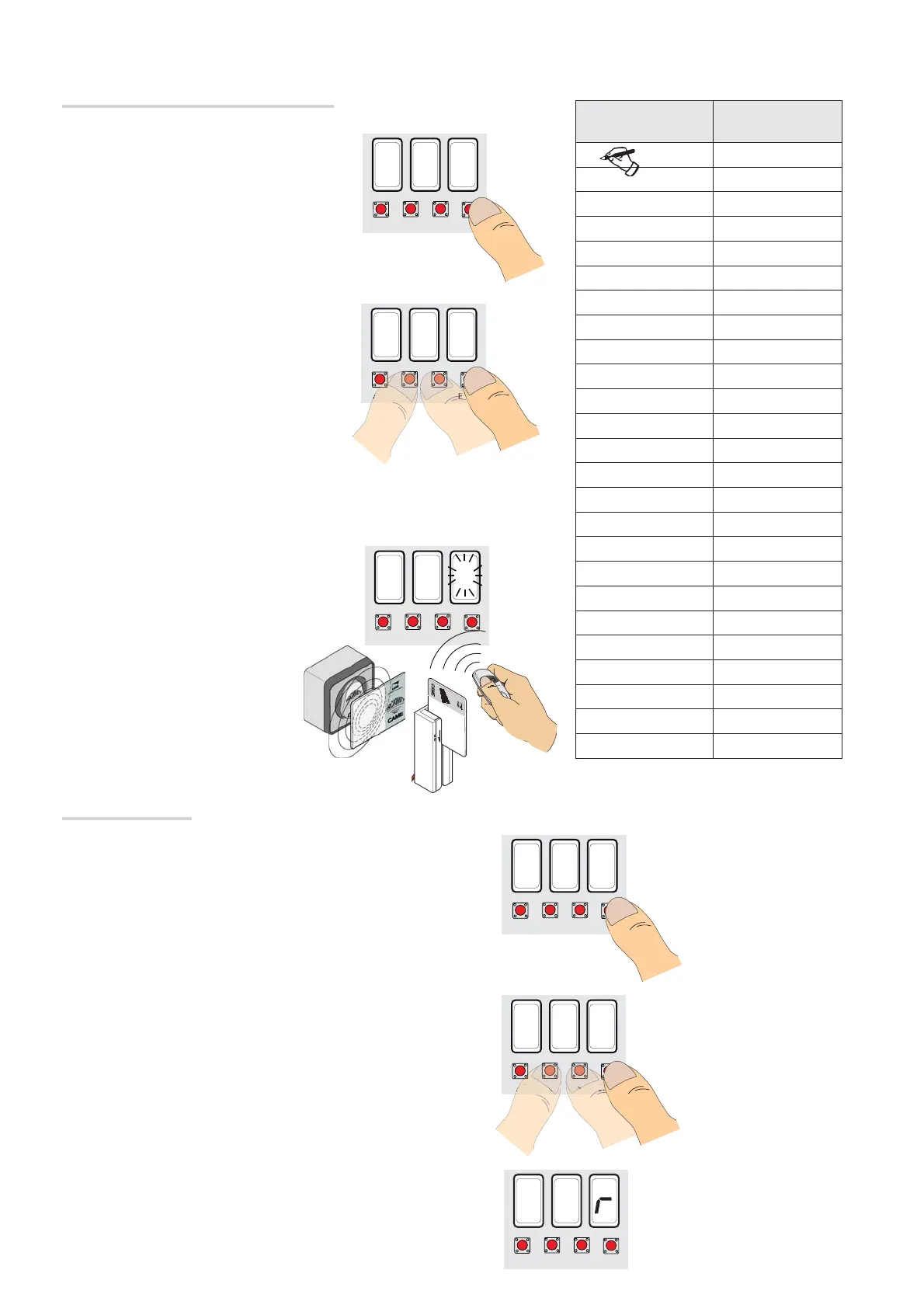

Entering a user with an associated command

When entering/deleting users, the fl ashing numbers that appear are numbers that can be used for other users you may wish to
enter (maximum 25 users).
User Associated com-
mand
1 -
2 -
3 -
4 -
5 -
6 -
7 -
8 -
9 -
10 -
11 -
12 -
13 -
14 -
15 -
16 -
17 -
18 -
19 -
20 -
21 -
22 -
23 -
24 -
25 -

CAME GARD 8 SERIES Specifications

General

Model	GARD 8 SERIES
Type	Automatic Barrier
Motor voltage	24 V DC
Power	300 W
Operating temperature	-20°C to +55°C
Protection rating	IP54
Input Voltage	230 V AC
Output Voltage	24 V DC
Protection Degree	IP54
Power supply	230 V AC
Opening time	4 to 8 seconds
