CAME GARD series Installation Manual

p.
12
12 - Manual Code:
11
11
9 G V18
9GV18 ver.
1.1
1.1 12/2011 © CAME Cancelli Automatici S.p.a. - The data and information in this manual may be changed at any time and without obligation on the part of Came Cancelli Automatici S.p.a. to notify said changes.
ENGLISH

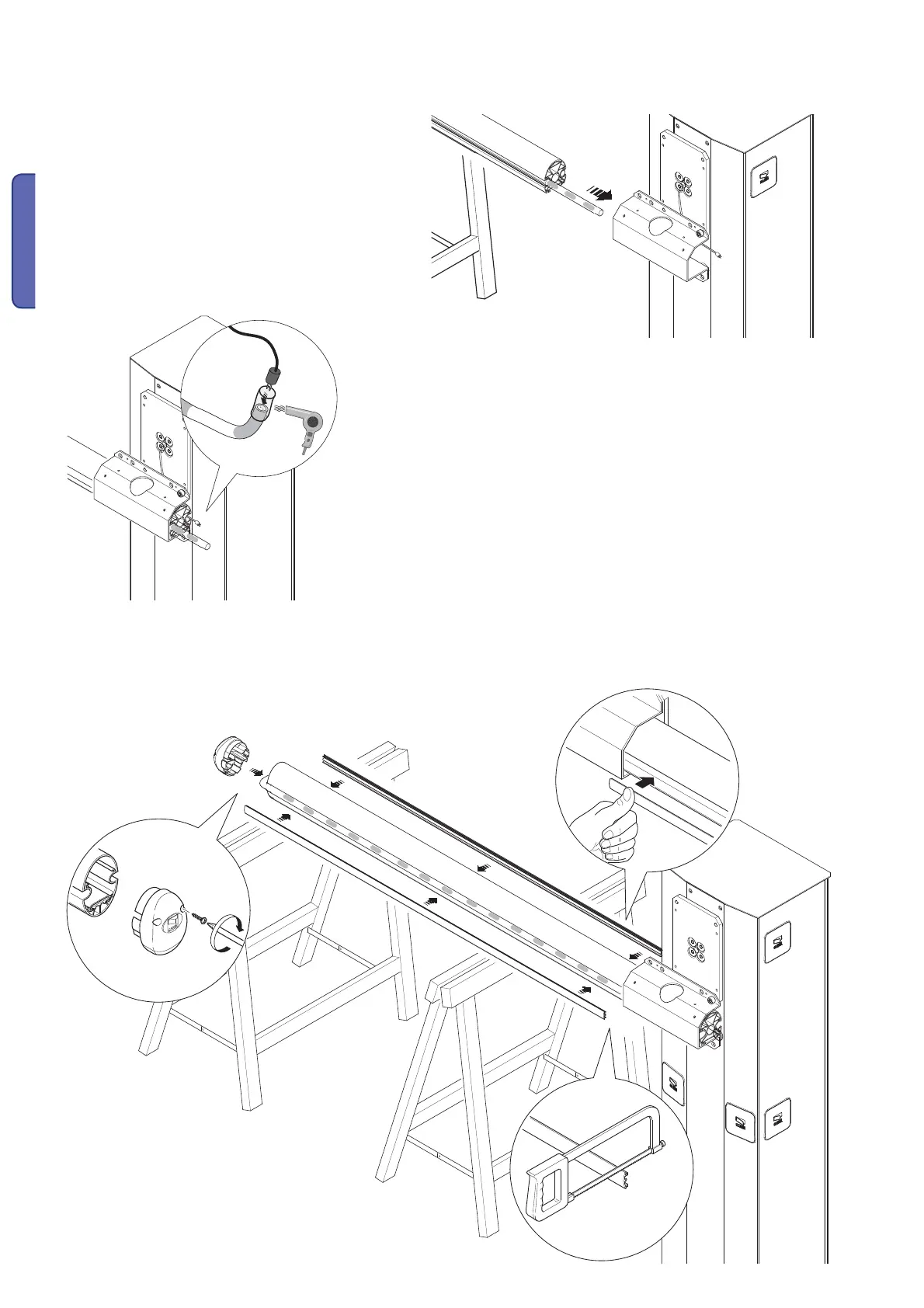

Insert the arm into the arm-attachment cap making sure that the power
cable is inside the arm raceway.
Cut the cable cover profi les to the right length and
insert into the arm raceway.Procedure to be carried
out on both sides.Secure the plug to the end of the
arm.
Connect the power cable jack to the luminous cord.If the luminous cord does
not work invert/turn the jack, then isolate the junction point with a thermo
shrinking sheath.

CAME GARD series Specifications

General

Protection Rating	IP54
Input Voltage	230 V AC
Power Supply	230V AC
Motor Power	300W
Output Voltage	24V DC
Maximum Current	5A
Operating Temperature	-20°C to +55°C
