Contact (NC) for reopening during closing.

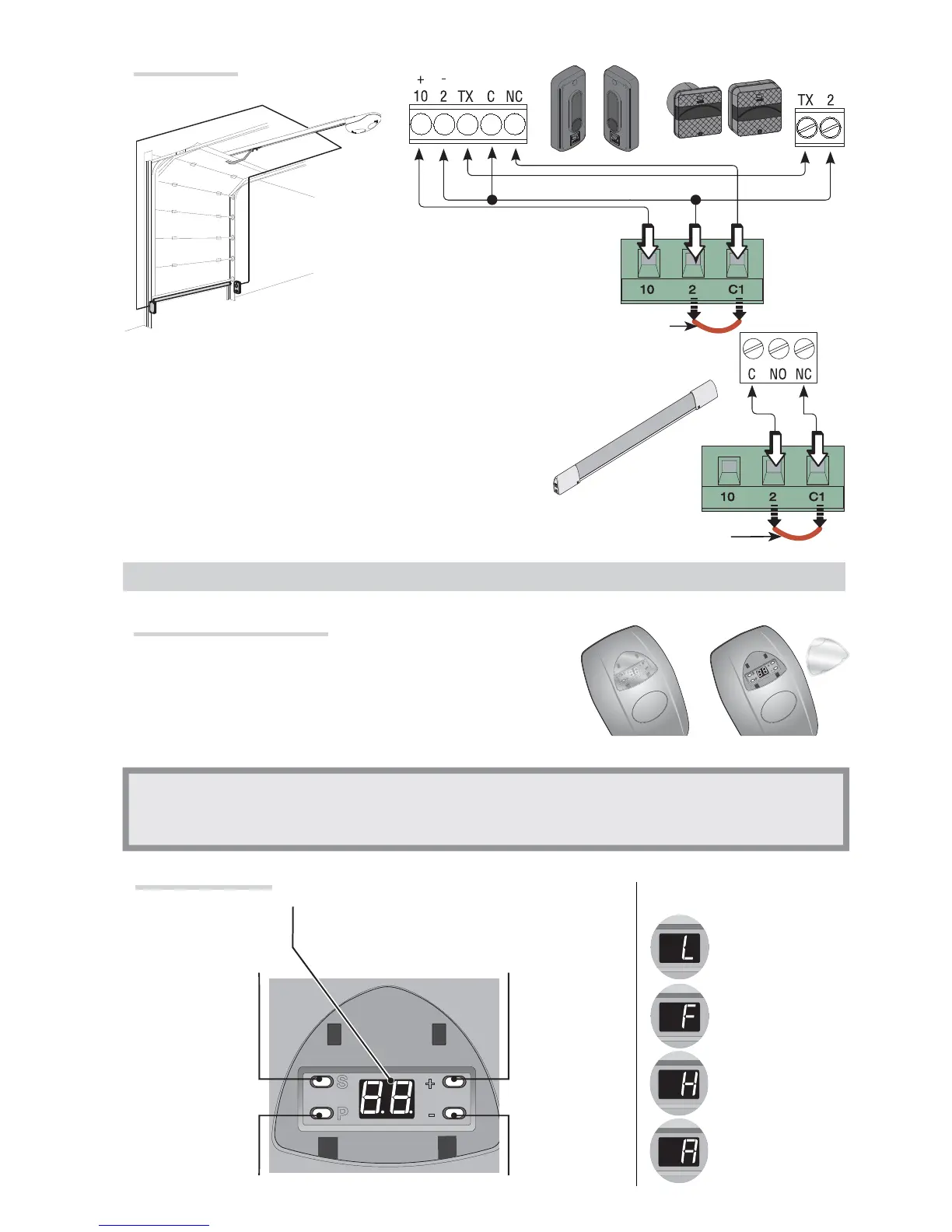

Input for safety devices such as photocells, sensitive safety-
edges and other devices that are compliant with EN 12978
standards.
During closing, opening this contact triggers an inversion of
movement until the door is completely open.
If a device is connected, remove the bridge
If a device is connected, remove the bridge
Safety devices
Preparing for programming
Manually hook up the door to the skid.
Power up the operator. After emitting a sound signal, the
control board is ready for programming.
Remove the transparent panel to access the programming
keys.
⚠ Memorizing (function 5) must always be the last phase of programming, otherwise the settings will not
be saved.
In the case of errors, cut off and the power up again the mains power and reprogram.
PROGRAMMING
Description of keys
Menu adjusting
and browsing key
Menu adjusting
and browsing key
Transmitter
memorizing
key
Menu access and
save changes key
Display for programming and monitoring the
operator's operation
L = normal
operation
F = obstacle
detection
H = Encoder error
A = Active
photocell
Legend of symbols
