CAME V6000P User Manual

H
H - 100 mm
H
H - 100 mm
H
H
H
M6x80
M6
b
a
10 ÷ 20
20 ÷ 30
max 330
A B
V201
C
Page 11 - Manual FA01799 -EN - 04/2022 - © Came S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions

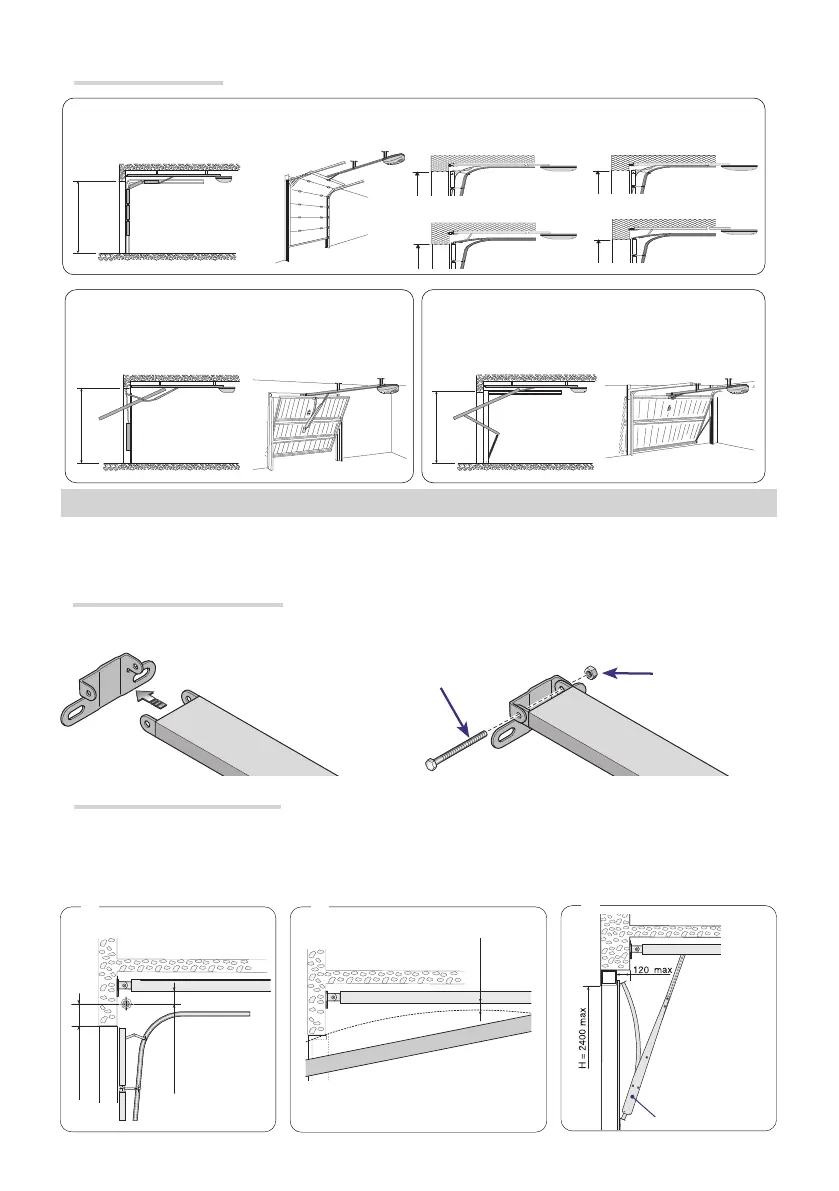

Applicative examples
* sectional door
with single guide
* sectional door
with dual guide
SECTIONAL DOOR
COUNTERBALANCED OVERHEAD,
partially retracting and protruding
SPRING-BALANCED OVERHEAD DOOR,
fully retracting and protruding
INSTALLING
⚠
The following illustrations are just examples, in that the space available for fitting the operator and accessories
varies depending on the overall dimensions. It is up to the installer to find the most suitable solution.
Assembling the traction guide
Fitting the brace to the transmission guide a by using the supplied nut and bolt b.
Positioning the traction guide
A for sectional doors exceeding the overall dimensions of the spring-pole brace.
B for overhead doors between 10 and 20 mm from the apex point of the leaf's slide arc.
C for partially retracting protruding counter-balanced overhead doors, use the V201 arm (see attached
technical documentation).
Page 11 - Manual FA01799 -EN - 04/2022 - © Came S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Original instructions
