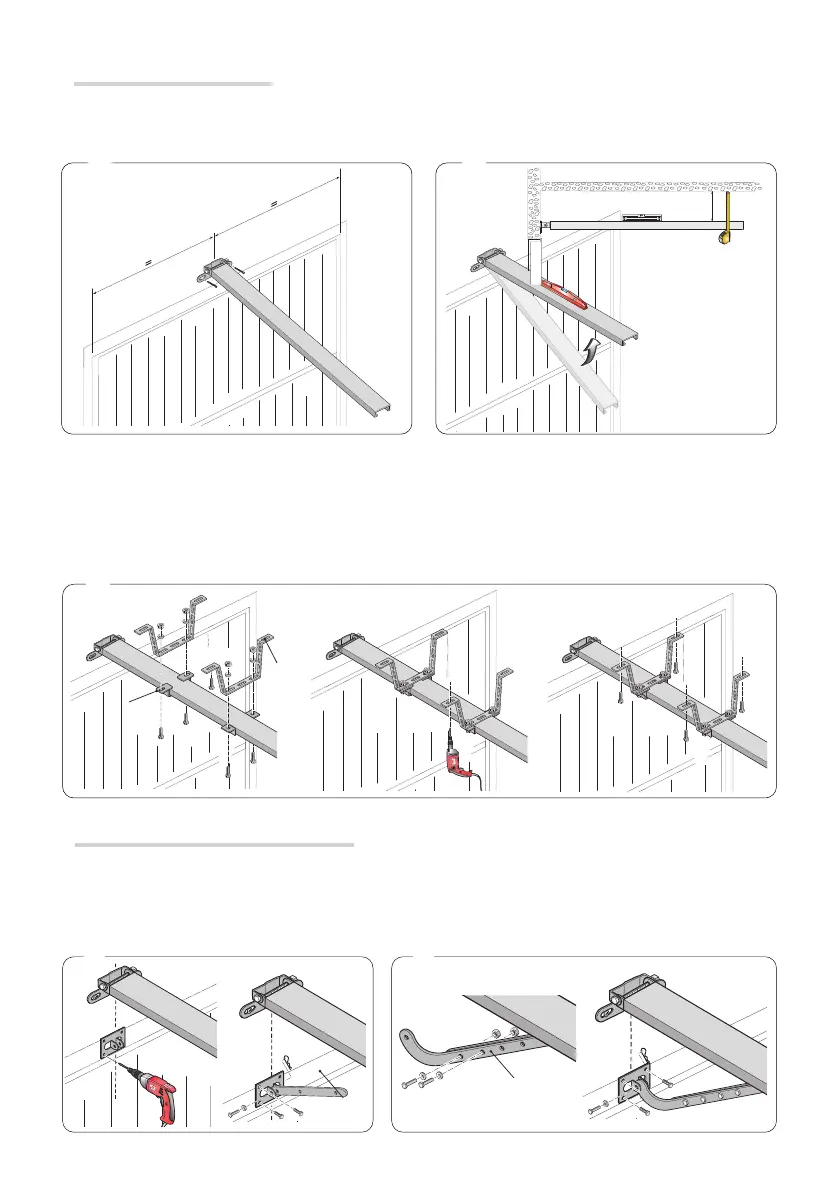

Fastening the traction guide
D Fasten the traction guide to the center of the doorway, using suitable screws.
E Raise the guide and position in horizontally to measure the distance to the ceiling, then fasten it.
F Install the support braces a and the U brace b on the guide.
Bend the perforated flat tabs so they fit snugly and so as to compensate for the distance between the guide and
ceiling.
Fasten the flat tabs to the support braces and to the U-shaped brace using the supplied screws and washers.
Drill the ceiling so the holes match those on the flat tabs.
Fasten the flat tabs to the ceiling using suitable dowels and screws.
GFit the transmission arm brace to the upper beam of the door, perpendicularly to the traction guide a and
fasten it using the supplied screws or other suitable screws.
HIf mounting the curved lever b fit it to the transmission arm by using the supplied nuts and bolts
Fitting the transmission arm to the door
