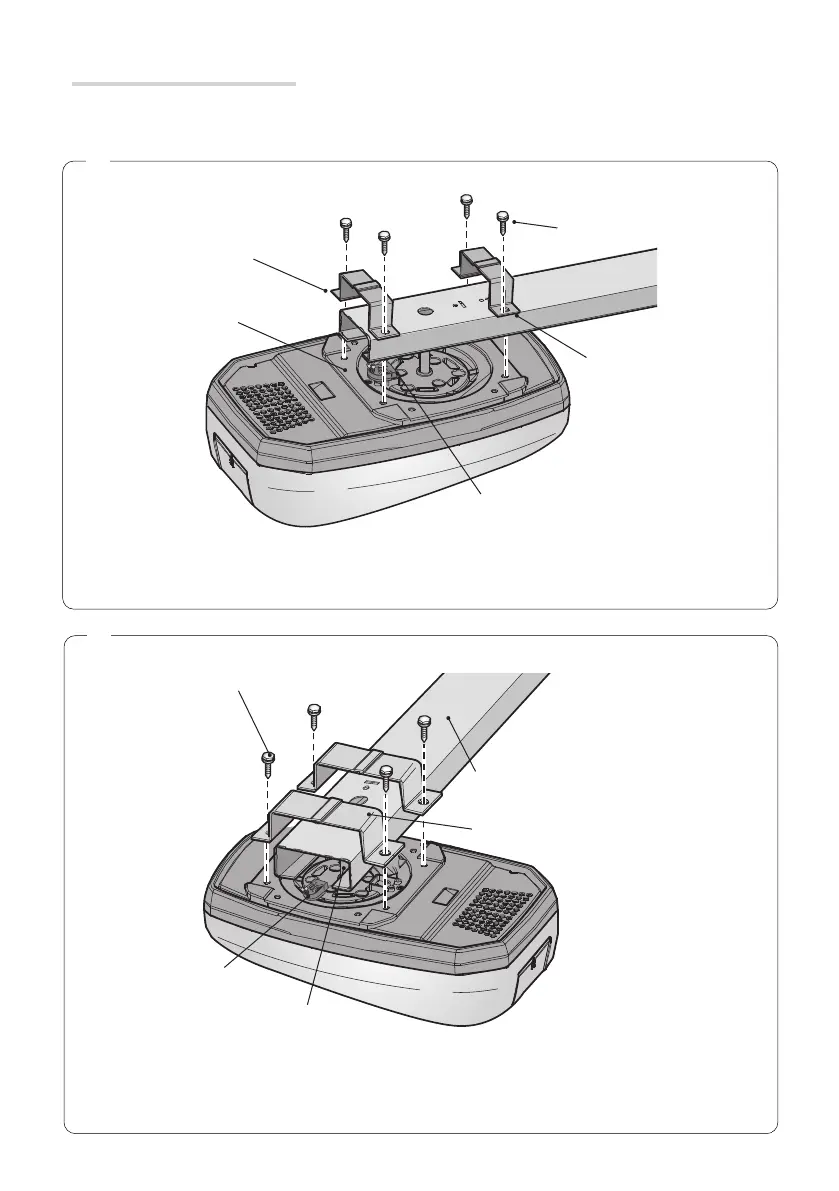

Fitting the operator to the guide
Fit the adapter to the drive shaft.
The operator can be fitted onto the guide: either in standard position I or at a right angle L.
⚠ If the operator is to be fitted at a right angle, before installing it, set the micro-switch (see the corre-
sponding paragraph).
Guide
Drive shaft with adapter
Self-drilling 6 x 15 screw
U-shaped brace
Micro
Self-drilling 6 x 15 screw
U-shaped brace
Guide
Drive shaft with adapter
Micro
