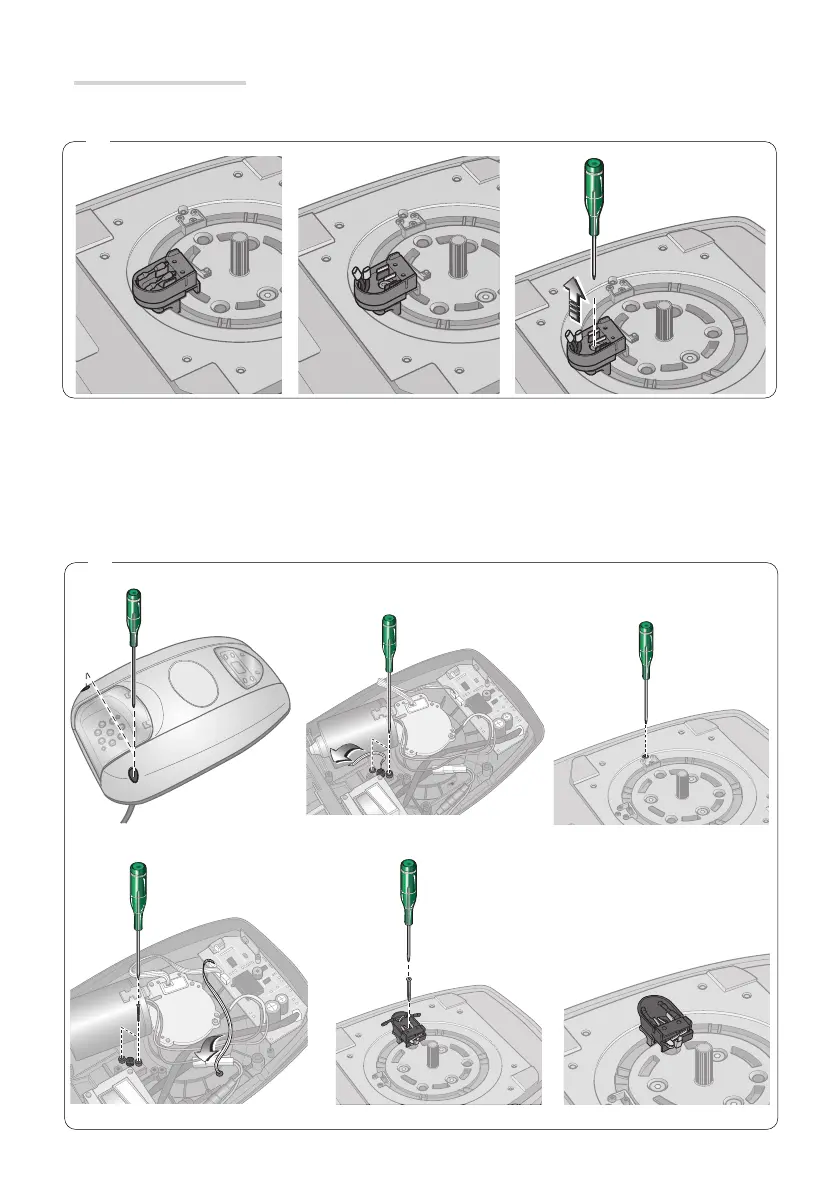

Moving the micro switch
Disconnect the cables of the micro switch and remove the latter.
N Remove the operator's cover and the cable brace. Pull out the electrical cable and fit it through the hole.
Refit the cable brace so as to block the hole.
Use a screwdriver to open up the predrilled hole for the electrical cables of the micro switch and fir the cables
to the micro switch. Fit the micro switch to the operator.
Connect the connectors to the corresponding positions on the micro switch.
⚠ Reconnect the cables as originally connected (NO - C).
Fit the cover back onto the operator.
