CAME V6000P User Manual

210115
365
3020 ÷ 4020
Page 6 - Manual FA01799 -EN - 04/2022 - © Came S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions
KEY
 This symbol shows which parts to read carefully.
⚠
This symbol shows which parts describe safety issues.
☞
This symbol shows which parts to tell users about.
Unless otherwise stated, these operations apply to all models.
the measUrements, Unless otherwise stated, are in millimeters.
DESCRIPTION
The operator is made up of a gearmotor, a control board with transformer, a slide guide with either a belt or chain
transmission system, a transmission arm and an ABS casing with display for keypad programming and an LED courtesy light.
Intended use
The V6000P and V1000P operators are designed to power up-and-over and sectional garage doors for homes and
apartment blocks.
 Any installation and/or use other than that specified in this manual is forbidden.
Limits to use
Type V1000P V6000P
Door surface area (m
2
) 14 9
Maximum height of counterbalanced overhead
doors (m)
2.4
Maximum height of spring-balanced overhead
doors (m)
3.25
Maximum height of door (m) 3.20
The maximum heights depend on the guide selected
Technical data
Type V1000P V6000P
Protection rating (IP) 20
Power supply (V - 50/60 Hz) 230 AC
Motor power supply (V) 24 DC
Stand-by absorption (W) 6.5 4.5
Maximum power of the accessories (W) 20
Nominal power (W) 150 90
Opening speed (m/min) 8 6.5
Traction force (N) 1000 600
Operating temperature (°C) -20 to +55
Apparatus class II
Weight (kg) 5.1 4.9

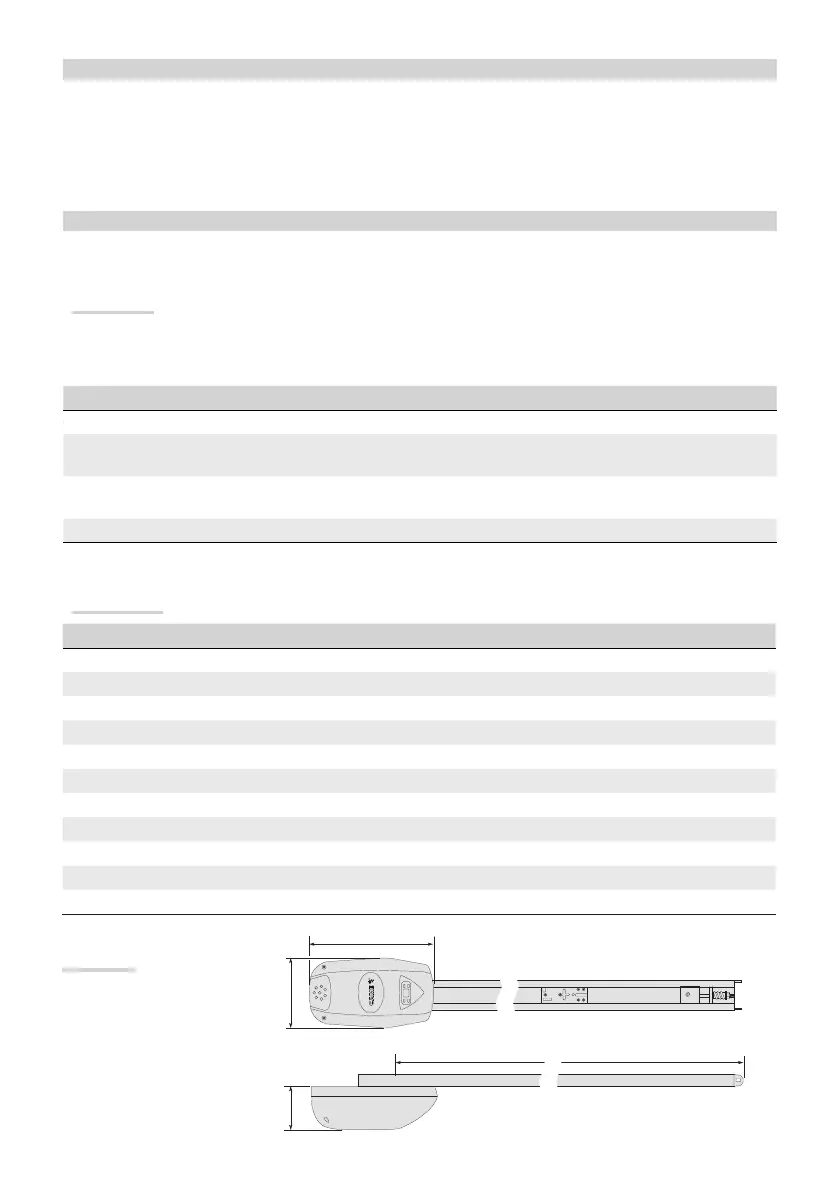

Dimensions
Page 6 - Manual FA01799 -EN - 04/2022 - © Came S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Original instructions
