CAME VER10 - Power supply; Command and control devices

UNI 5739
M6 x 20
UNI 6955 Ø 6.3 x 45
p.
11
11 - Manual
FA00045-EN
FA00045-EN v.
2
2 - 09/2016- © Came S.p.A. - The contents of this manual may be changed, at any time, and without notice.
Turn the release lever clock-wise .

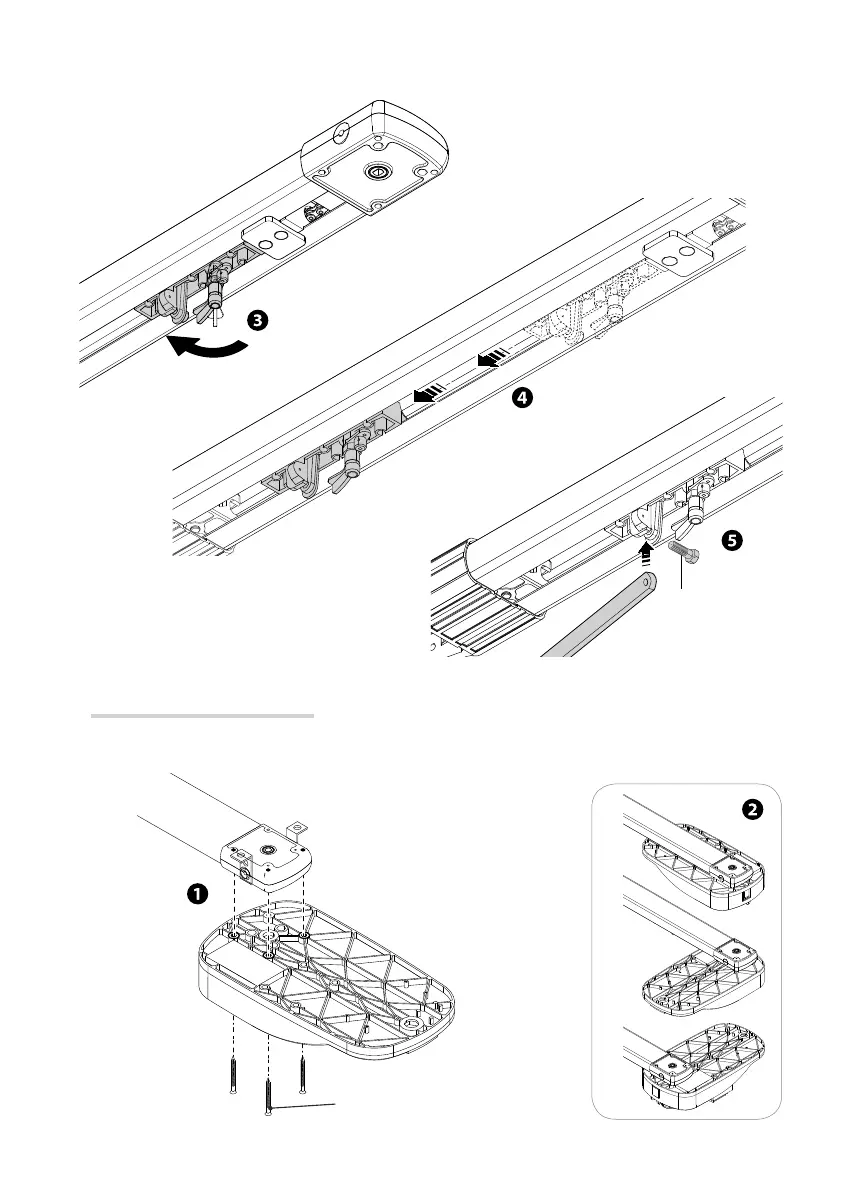

Move the traction assembly towards the door and fasten the transmission arm using the supplied bolt
.
Fitting the operator to the guide
Fasten the operator to the traction guide using the supplied screws .
 The operator can also be fi tted laterally .
