CAME VER12 Installation Manual

CL.SENS.
ZL56
OP.SENS.
MOTOR FUSE
8A-F
2
1
ON
ACC. FUSE 3,15A-F
LINE FUSE
1,6A-F
OPEN
OP / CL
AF
26V 17V 0V
MN
+
E-
ENC/RADIO
0V
230V
0
17
26
A.C.T.
SLOW.SENS
C.BOARD FUSE 315mA-F
L1T
L
L2T
N
p.
12
12 - Manual
FA00045-EN
FA00045-EN v.
2
2 - 09/2016 - © Came S.p.A. - The contents of this manual may be changed, at any time, and without notice.

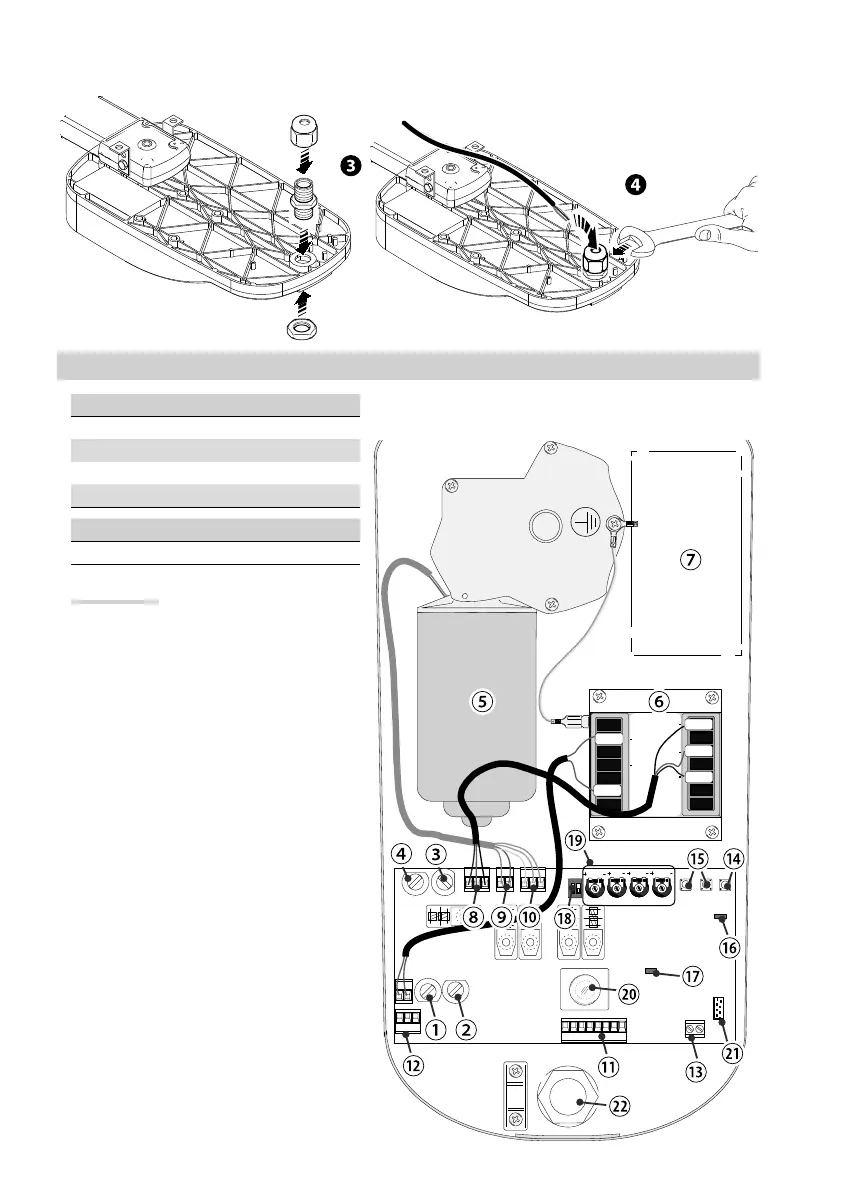

Fit the cable gland into the corresponding hole  and fi t the electrical cables .
 The number of cables depends on the type of system and accessories fi tted.
ELECTRICAL CONNECTIONS
FUSE TABLE
Motor (A) 8
Accessories (A) 3.15
Control device (mA) 315
Line fuses (A) 1.6
LIGHTS
LED courtesy lights 24 V E14S (W) 1
Components
1. Line fuse
2. Motor fuse
3. Accessories fuse
4. Control
5. panel/ Gearmotor board fuse
6. Transformer
7. Battery housing
8. Transformer connection terminals
9. Gearmotor connection terminals
10. Encoder connection terminals
11. Accessories connection terminals and
control devices
12. Power supply terminal board
13. Antenna connection terminals
14. Memorization button
15. Limit-switch adjustment buttons
16. Programming LED
17. POWER-ON alerting LED
18. DIP-switch
19. Trimmer
20. Courtesy light
21. AF card connector
22. Hole for cables
