VWXYEE3 1011S 12 33P457 2C1CXB1B2
CH1 CH2
p. 11 - Manual FA 01078- EN - 02/2018 © CAME S.p.A. - Translation of the original instructions
Intermittent LED

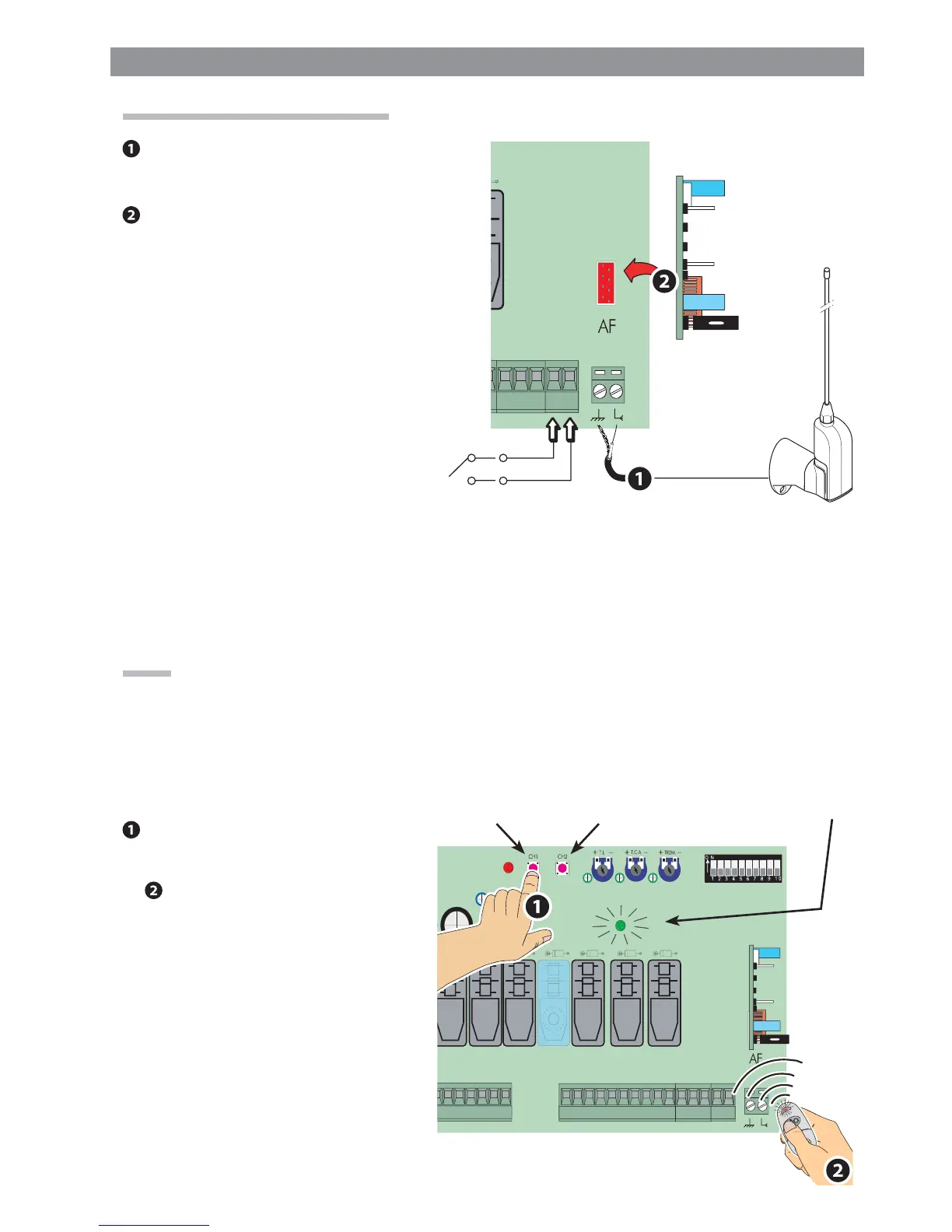

ENABLING THE RADIO CONTROL
Possible connection to a second operator that can be
enabled from the second channel on the radio circuit
(N.O. contact).
Contact rated for: 5A-24 V DC
Connect the RG58 antenna-cableto the corresponding
terminals.
Antenna and AF radiofrequency card
Fit the radio-frequency card intothe slot on the control
board AFTER CUTTING OFF THE MAINS POWER SUPPLY.
N.B.: The control board recognizes the radiofrequency card
only when it is powered up.
Saving
CH1 = Channel for direct commands to a feature of the gearmotor's control board ("open only / " open-close-reverse" command
or "open-stop-close-stop", depending on the selection made on DIP-switches 2 and 3).
CH2 = Channel for direct command to an accessory device connected to B1-B2.
Do the same with the CH2 button,
and associate it to another one of the
transmitter's buttons.
Keep the CH1 button pressed on the
control board (the LED will fl ash), send the
code by pressing the transmitter's button,
the LED will stay on to confi rm that the
data has been saved.
