Pag.
-
manual code
319S33EN ver.
06/2015
© CAME S.p.A.- The data and information in this manual may be changed at any time and without obligation on the part of CAME S.p.A. to notify said changes.
Before beginning to install, the following is necessary:
Make sure that the point where the electrical panel is anchored is free from any impacts, and that the surface is solid and that
proper tools and materials are used (i.e. screws, wall plugs, etc.).
Set up a suitable omnipolar cut-off device, with distances greater than 3 mm between contacts, with sectioned power source
•
Check that any connections inside the container (made for continuity purposes of the protective circuit) are fitted with extra
insulation compared to other internal conductive parts.
• Set up proper conduits and electric cable raceways, making sure these are protected from any mechanical damage.
Make sure you have all the tools and materials needed to carry out the installation in total safety and in accordance with current
regulations. Here are some examples.

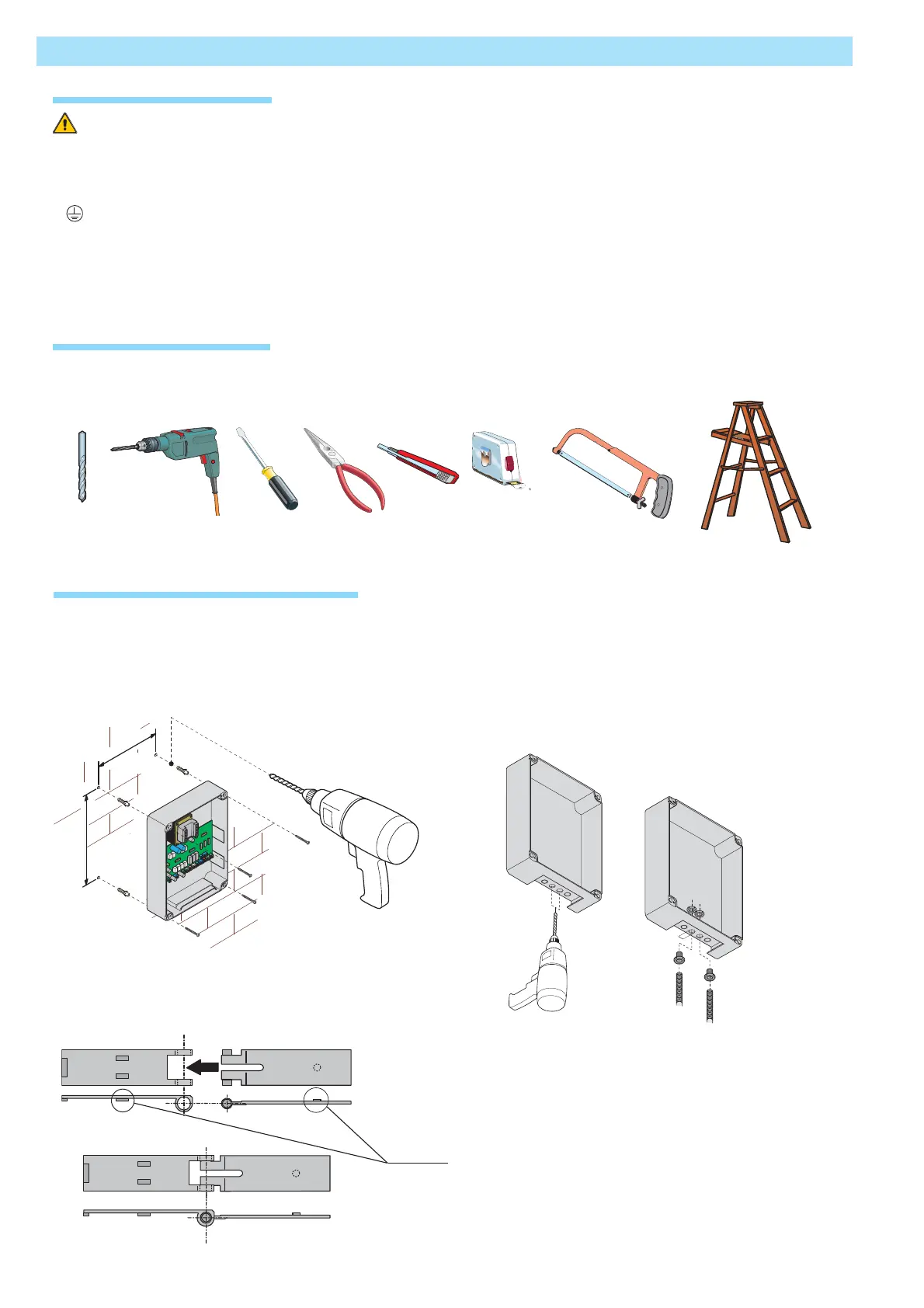

1) Secure the base of the panel to a protected area; we
suggest using cross slot Phillips head bolts of max. 6 mm in
diameter.
2) perforate the marked holes and insert the cable glands
with corrugated tubes for the electrical cables to run
through.
N.B.: the diameter of the marked holes is 20mm.
3) Assemble the pressure hinge.
5.3 Anchoring and installing the box
5 Installation
5. 1 Preliminary checks
5.2 Tools and equipment
