UVWEEX
10 11 TS 1 2 3 3P 4 5 7
16 OFF - 17 ON
12
11 13 14 15 16 17
18 19 20
ON
16 ON - 17 OFF
12
11 13 14 15 16 17
18 19 20
ON
,
,
Pag.
-
manual code
319S33EN ver.
06/2015
© CAME S.p.A.- The data and information in this manual may be changed at any time and without obligation on the part of CAME S.p.A. to notify said changes.

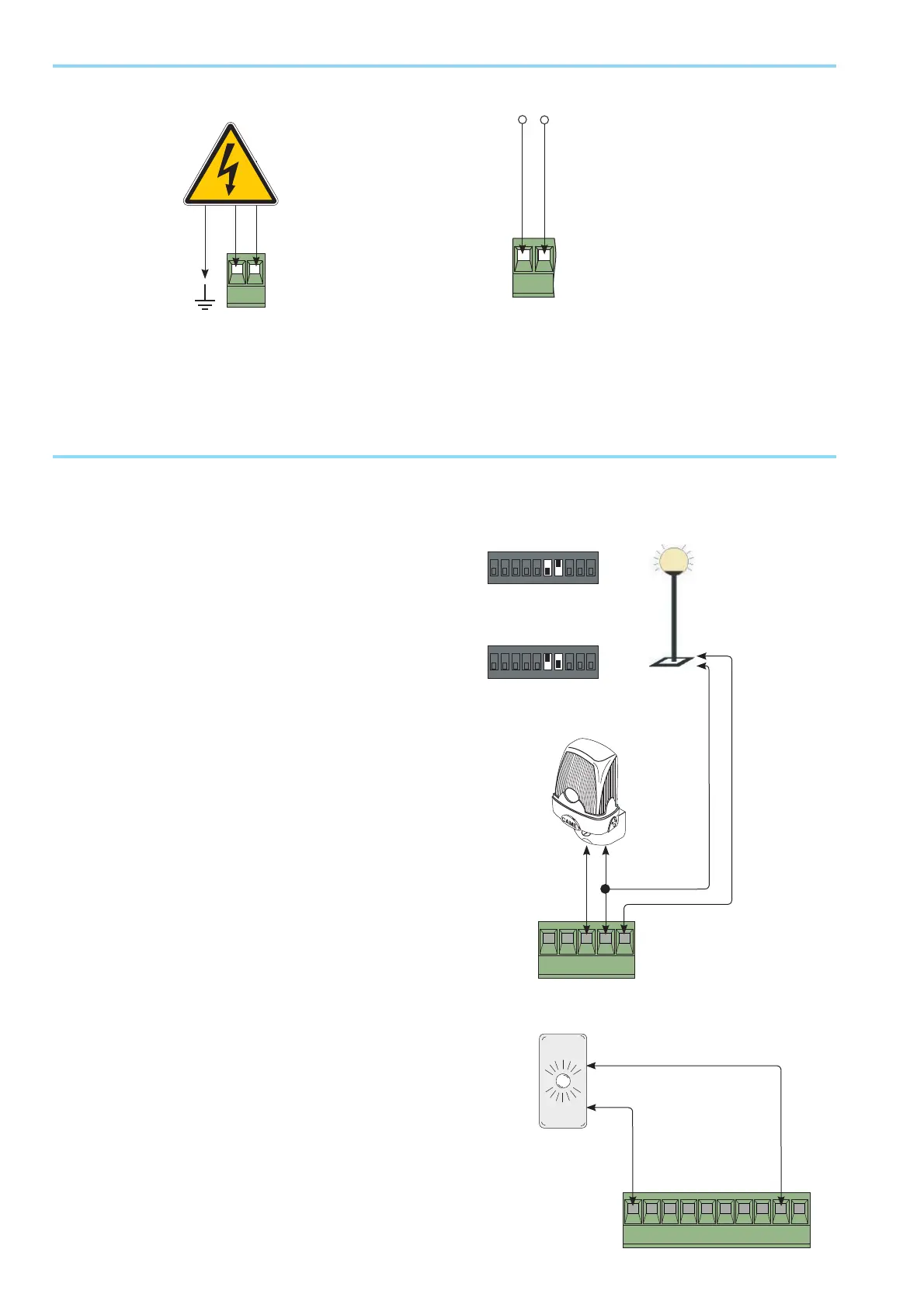

Lighting and warning devices
Cycle /Courtesy lamp Contact rated for: 230 V - 60 W max.):
Cycle lamp_lights up the parking area and stays on from the
moment the sliding gate starts opening unitl it is fully closed
(including the automatic closing time). If the automatic closing is
not inserted, it stays on only during movement (dip n°16 in OFF -
17 in ON).
- Courtesy lamp_lights up the parking area, following an opening
comand it stays on for a fixed 5 minutes and 30 seconds (dip
n°16 in ON - 17 in OFF).
Gate open warning light Contact rated for: 24 V - 3 W max.)
Warns of open gate position, turns off when gate is closed.
Movement Flasher (contact rated for: 230 V AC - 25W max.) Flashes
while gate opens and closes.
Power supply to the
230 V AC 50/60 Hz
control panel
Terminals for powering the
24 V AC accessories. Overall
allowed power: 20W
Power supply
