Clearing Paper Jams

3-25

Troubleshooting

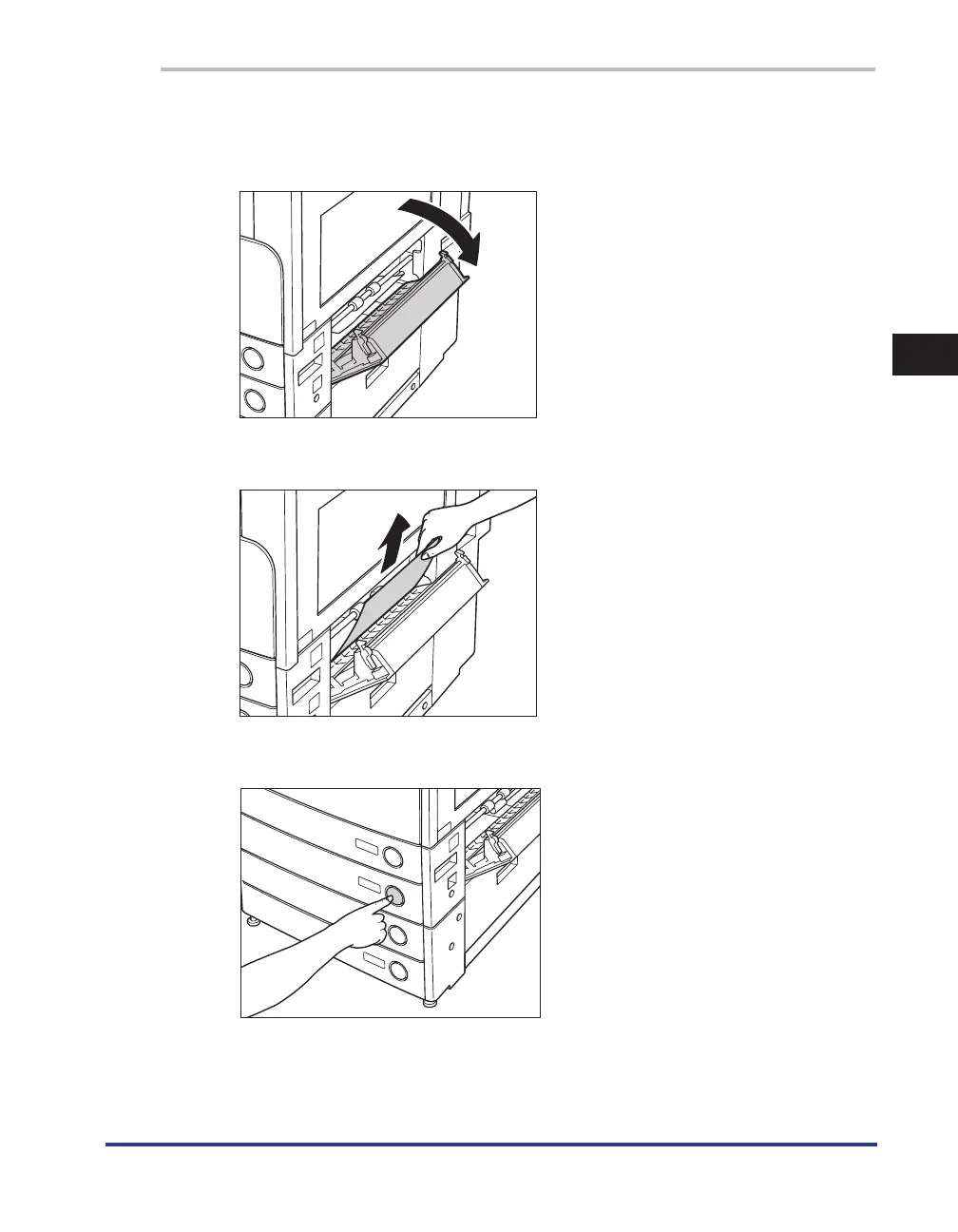

Open the paper drawer's right cover.

If the optional Paper Deck-Q1 is attached to the main unit, move the paper deck away from the main unit

before proceeding with this procedure. For more information, see e-Manual > Optional Equipment.

Remove any jammed paper.

Press and release the button on Paper Drawer 2.
