Clearing Paper Jams

3-67

Troubleshooting

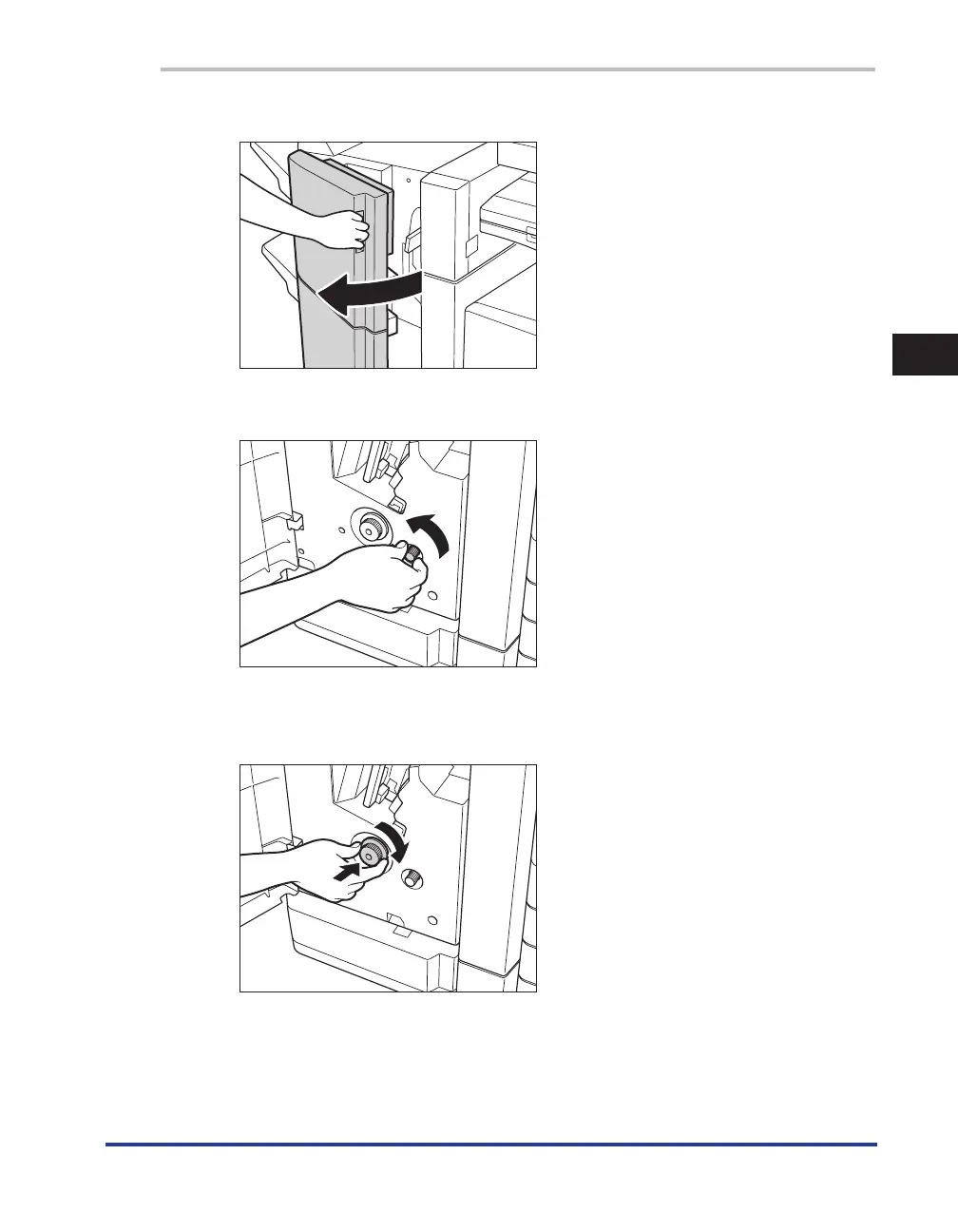

Open the front cover of the finisher.

Turn the knob on the right in the direction of the arrow (counterclockwise).

While pushing in the knob on the left, turn it in the direction of the arrow

(clockwise).
