Clearing Staple Jams

3-85

Troubleshooting

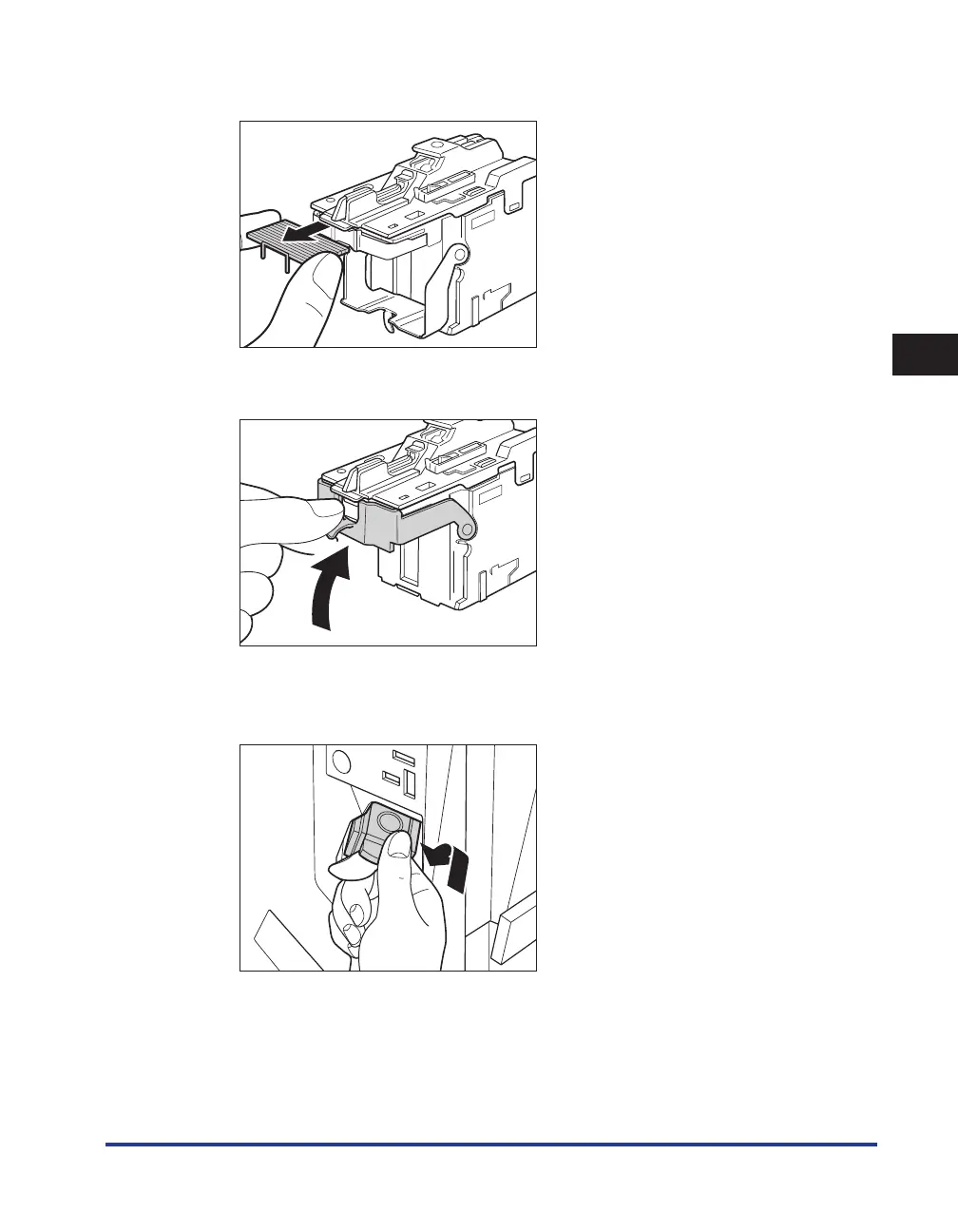

Remove all of the staples that slide from the staple case.

Return the tab on the staple case to its original position.

Gently push the staple case back into the stapler unit until it is securely in

place.
