Canon EOS 70 User Manual

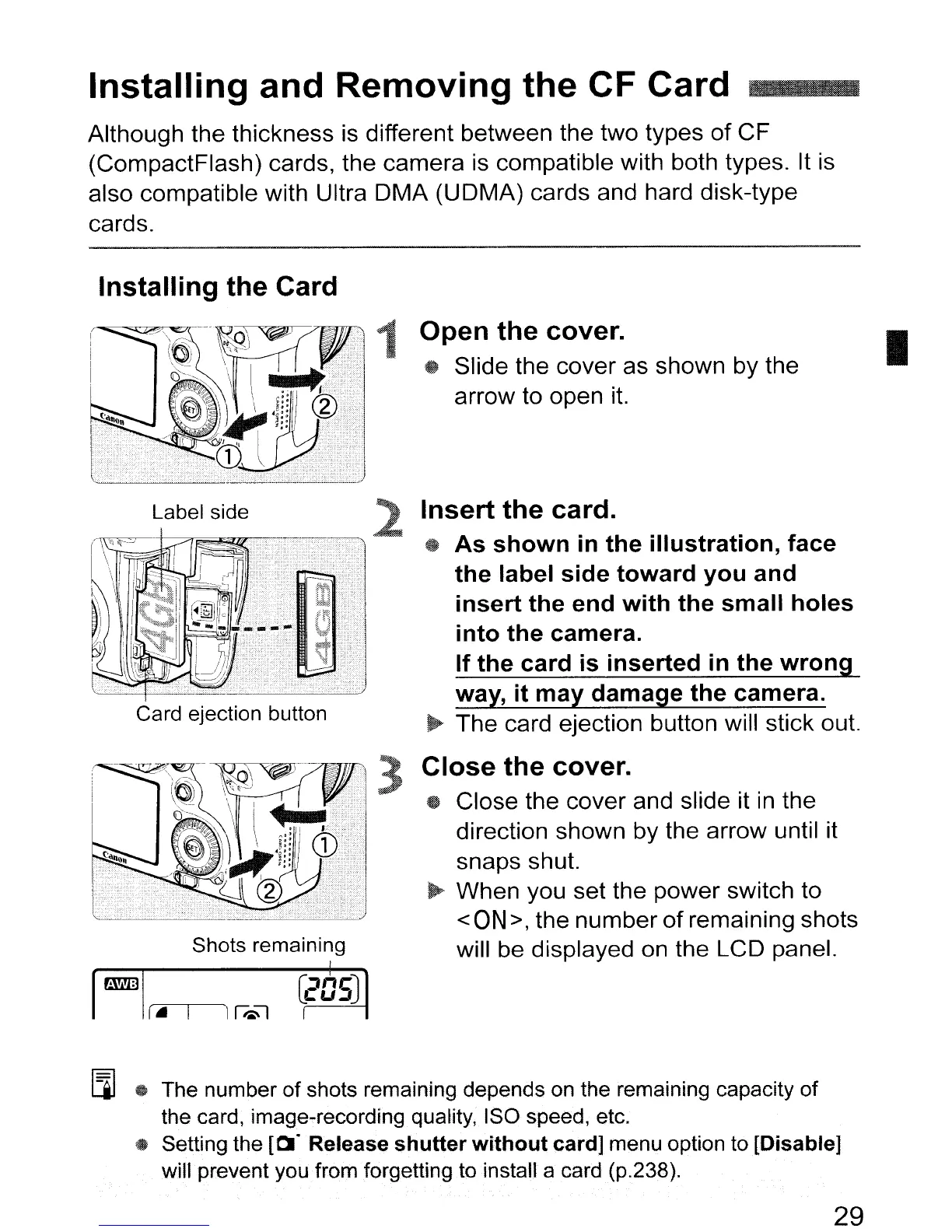

Installing and Removing the CF Card
Although the thickness is different between the two types of CF
(CompactFlash) cards, the camera is compatible with both types. It
is
also compatible with Ultra DMA (UDMA) cards and hard disk-type
cards.
Installing the Card
Label side
Card ejection button
Shots remaining
1 Open the cover. I
~ Slide the cover as shown by the
arrow to open it.
Insert the card.
~ As shown in the illustration, face
the label side toward you and
insert the end with the small holes
into the camera.
If the card is inserted in the wrong_
way,
it may damage the camera.
~. The card ejection button will stick out.
3 Close the cover.
e Close the cover and slide it in the
direction shown by the arrow until it
snaps shut.
~ When you set the power switch to
< ON >, the number of remaining shots
will be displayed on the LCD panel.
(2D5J
[j @ The number of shots remaining depends on the remaining capacity of
the card, image.,.recording quality, ISO speed, etc.
~ Setting the [0' Release shutter without card] menu option to [Disable]
will prevent you from forgetting to install a card (p.238).
29

Canon EOS 70 Specifications

General

Megapixels	20.2 MP
ISO	100-12800 (expandable to 25600)
Continuous Shooting	7 fps
LCD Screen Resolution	1, 040, 000 dots
Viewfinder Coverage	98%
Sensor Type	CMOS
Sensor Size	APS-C
Shutter Speed	30-1/8000 sec
LCD Screen Size	3.0"
Video Recording	1080p at 30 fps
Connectivity	Wi-Fi
Weight	755 g (body only)
Dimensions	139 x 104 mm
Storage Media	SD/SDHC/SDXC card
Autofocus Points	19
Viewfinder Type	Pentaprism
Battery Life	920 shots (CIPA)
Battery	LP-E6
