Canon imagePROGRAF iPF770 User Manual

Printing CAD Drawings
Printing CAD Drawings
Printing CAD Drawings ..................................................................................................................................... 38
Printing Line Drawings and Text ........................................................................................................................38
Printing Line Drawings and Text (Windows) ................................................................................................. 39
Printing Line Drawings and Text (Mac OS) ................................................................................................... 40
Printing from AutoCAD ..................................................................................................................................... 42
Specifying Colors and Printing CAD Drawings .................................................................................................. 43
Specifying Colors and Printing CAD Drawings (Windows) ............................................................................ 44
HP-GL/2 Printing ..............................................................................................................................................45
Printing CAD Drawings
Printing CAD Drawings
Using this printer, you can print fine lines and text clearly and sharply. It's easy to produce highly precise drawings
from CAD applications.
For instructions on CAD printing, refer to the following topics, as appropriate for your computer and operating sys-
tem.
• Printing Line Drawings and Text (Windows) ➔ P.39
• Printing Line Drawings and Text (Mac OS) ➔ P.40

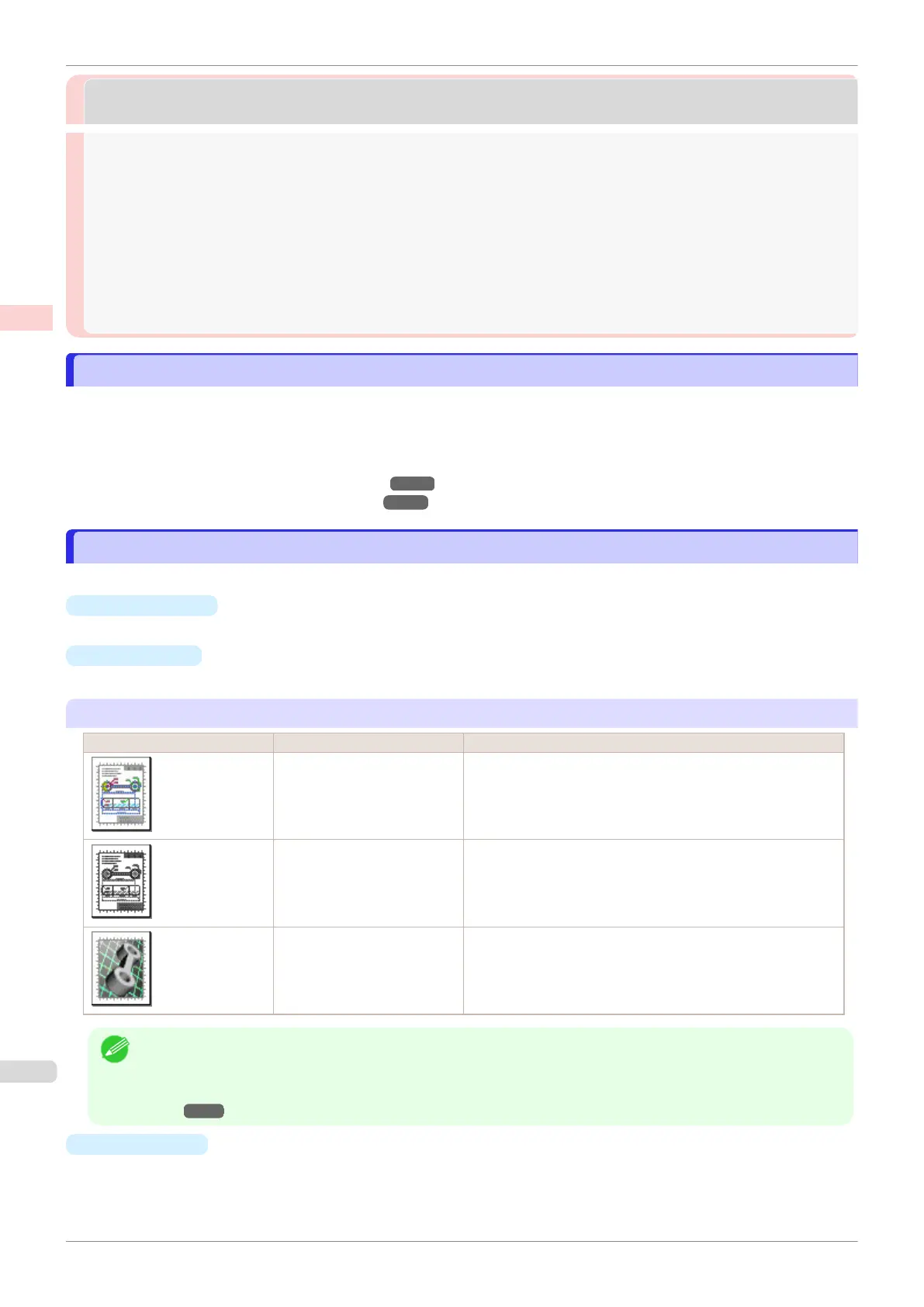

Printing Line Drawings and Text
Printing Line Drawings and Text
Printing is easy when you simply choose the type of original to print.
•
Easy Settings
Simply choose the printing application in the list for optimal printing results.
• Print Target
Choose presets that match the type of document to be printed.
Print targets for line drawings and text
Print Target Description
CAD (Color Line Drawing) Settings optimized to print intricate lines in CAD drawings clear-
ly.
CAD (Monochrome Line
Drawing )
Settings optimized to print black lines in CAD drawings clearly.
Perspective, GIS Settings optimized for printing 3D CAD drawings, perspective
drawings, and maps, including GIS maps.
Note
•
You can check the settings values for each print target by clicking View Settings.
• You can also fine-tune these values as needed. ( Advanced Settings )
For details on Advanced Settings, see "Giving Priority to Particular Graphic Elements and Colors for Print-
ing." ➔P.52
•
Print Quality
Choose the print quality.
Printing CAD Drawings
iPF770
User's Guide
Enhanced Printing Options Printing CAD Drawings
38

Canon imagePROGRAF iPF770 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Matte black, Yellow
Print technology	Inkjet
Maximum resolution	2400 x 1200 DPI
Number of print cartridges	5
Page description languages	GARO, HP-GL/2, HP-RTL
Certification	CE, TUV, Gost-R, WEEE, ErP, EAC, RoHS, WEEE
Product color	Black, Grey
Sound pressure level (printing)	46 dB
USB connector	USB Type-A
USB 2.0 ports quantity	1
Ethernet interface type	Gigabit Ethernet
Media thickness	0.07 - 1.5 mm
Maximum print size	A0 (841 x 1189 mm)
Maximum roll length	18 m
Media width (sheets)	914.4 mm
Maximum roll diameter	150 mm
ISO A-series sizes (A0...A9)	A0, A1, A2, A3
ISO B-series sizes (B0...B9)	B1, B2, B4
Borderless printing media sizes	A0, A1, A2, A3, B4
Minimum system requirements	Windows XP, Vista, 7, 8, 8.1, Server 2003/2003R2, Server 2008/2008R2, Server 2012/2012R2 Mac X 10.6.8 - 10.10+
Power consumption (standby)	0.5 W
Power consumption (typical)	140 W
Power consumption (PowerSave)	5 W
Storage temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	10 - 80 %
Sustainability certificates	ENERGY STAR
Accuracy	0.2 %
Scan speed (black)	3 ips
Scan speed (color)	1 ips

Weight and Dimensions

Depth	1100 mm
Width	1304 mm
Height	1062 mm
