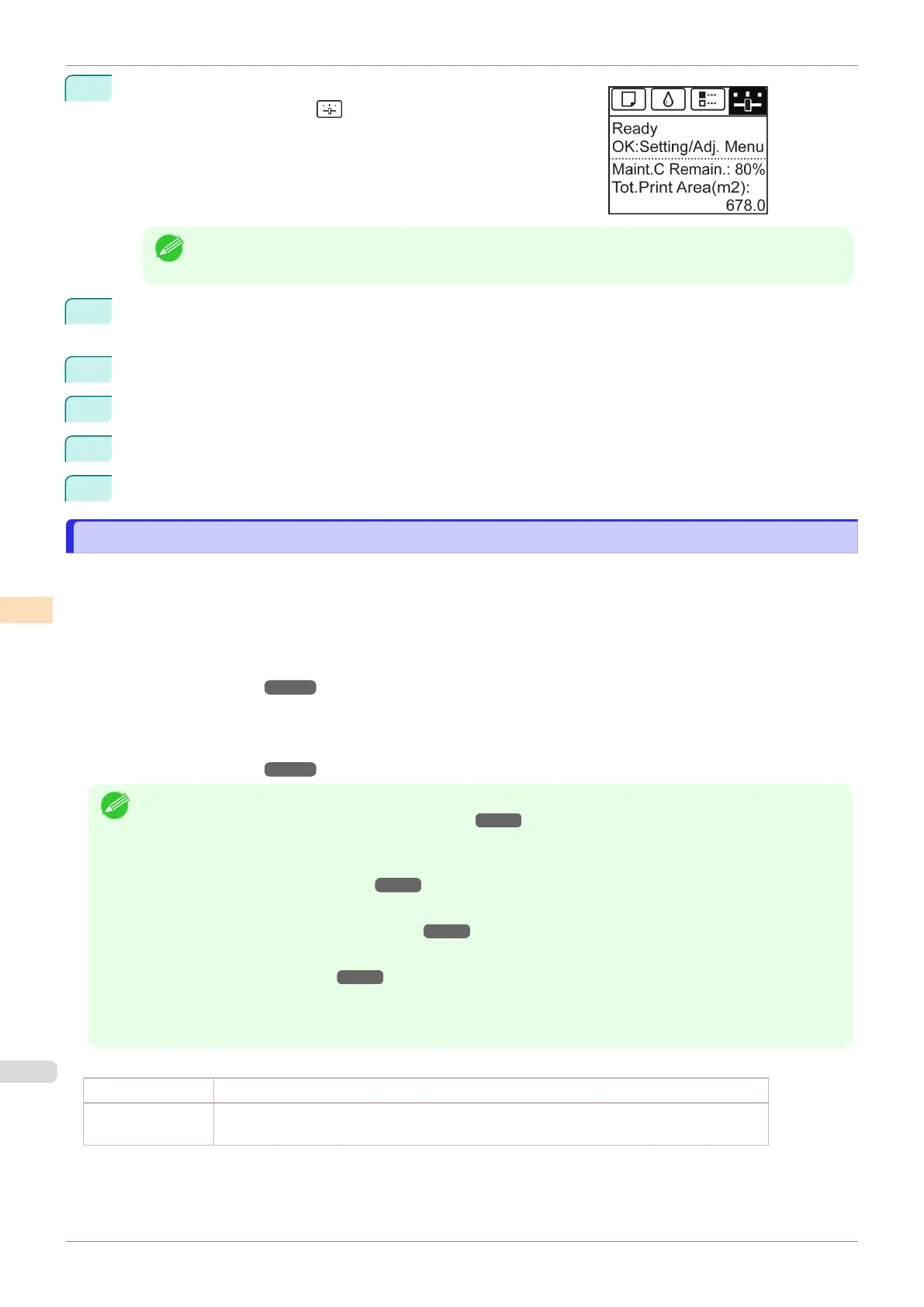

2
On the Tab Selection screen of the Control Panel, press or to
select the Settings/Adj. tab ( ).
Note
If the Tab Selection screen is not displayed, press the Menu button.
3
Press the OK button.
The Set./Adj. Menu is displayed.
4
Press or to select Adjust Printer, and then press the OK button.
5
Press or to select Feed Priority, and then press the OK button.
6
Press or to select Adj. Priority, and then press the OK button.
7
Press or to select Automatic, Print Quality, or Print Length, and then press the OK button.
Automatic Banding Adjustment
Automatic Banding Adjustment
If printed images are affected by banding in different colors across the sheet, execute Adj. Quality for automatic
adjustment of the paper feed amount.
There are two modes of automatic adjustment to correct banding: Auto(GenuinePpr) and Auto(OtherPaper). In
either mode, the printer prints and reads a test pattern for automatic adjustment of the feed amount.
Auto(GenuinePpr)
Use this mode with paper identified in the Paper Reference Guide.
(See "Types of Paper.") P.310
Auto(OtherPaper)
Use this mode with paper not in the Paper Reference Guide, or if Auto(GenuinePpr) does not eliminate
banding.
(See "Types of Paper.") P.310
Note
Always check the Adj. Priority values before using Auto(GenuinePpr) or Auto(OtherPaper).
(See "Selecting a Feed Amount Adjustment Method.") P.487
Adjustment is not possible with Auto(GenuinePpr) and Auto(OtherPaper) when using highly transparent media.
In this case, use Manual adjustment.
(See "Manual Banding Adjustment.") P.489
If additional fine-tuning is necessary after Auto(GenuinePpr) and Auto(OtherPaper), execute Adj. Fine Feed.
(See "Fine-Tuning the Paper Feed Amount.") P.491
Use Adjust Length to ensure that lines in CAD drawings are printed at exactly the right length.
(See "Adjusting Line Length.") P.491
This may take some time, depending on the type of paper.
Use paper of the same type and size for adjustment as you will use for printing.
Items to Prepare
When Using Rolls An unused roll at least 10 inches wide
When Using Sheets Auto(GenuinePpr) : One sheet of unused paper, A4/Letter size
Auto(OtherPaper) : Two sheets of unused paper, A4/Letter size (or one sheet when using A2)
Automatic Banding Adjustment
iPF770
User's Guide
Adjustments for Better Print Quality Adjusting the feed amount
488
