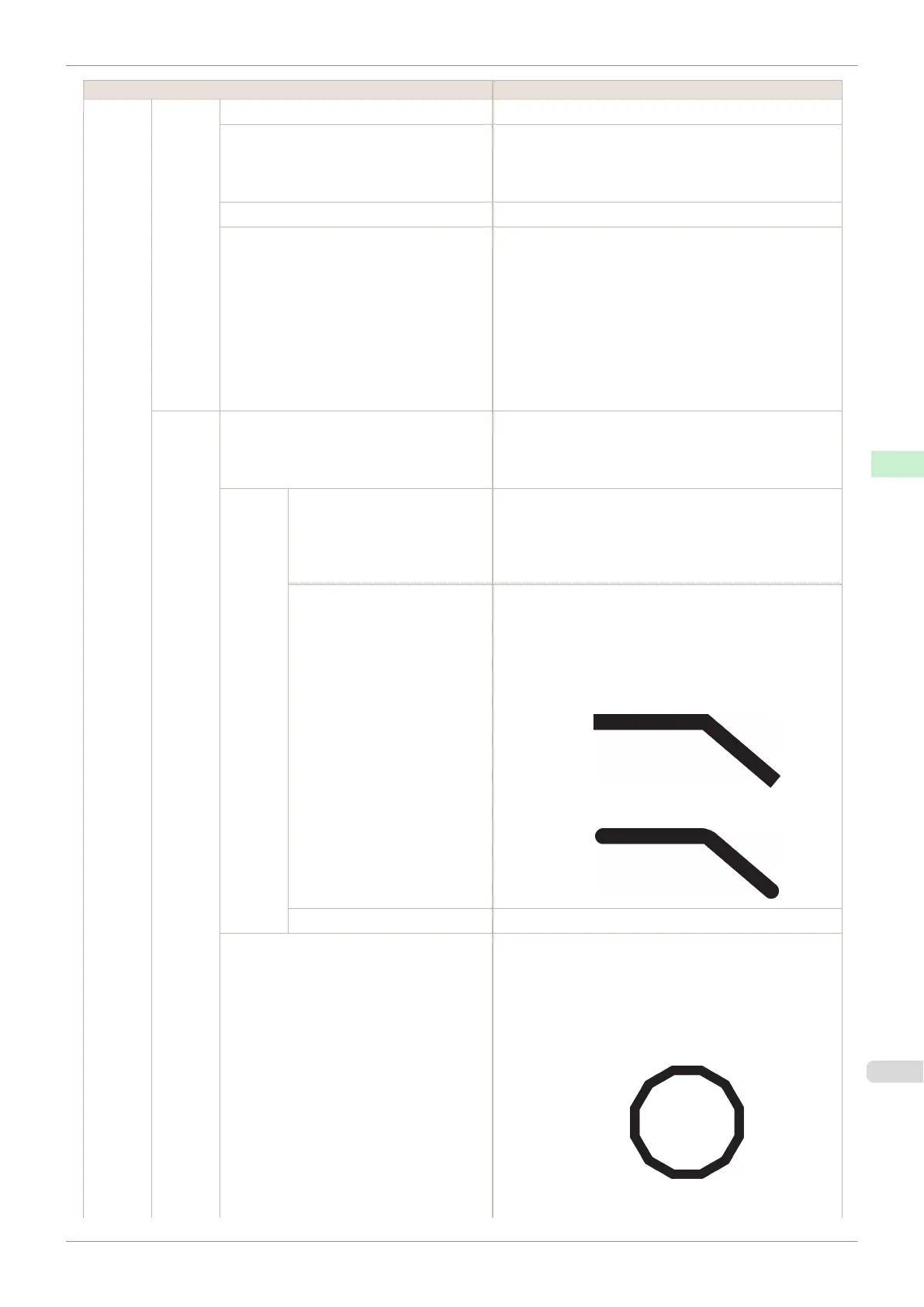

Canon imagePROGRAF iPF770 User Manual

Setting Item Description, Instructions
GL2
Settings
Paper
Manag-
er
Paper Source Choose the source of paper for HP-GL/2 printing.
Margin Specify the margin around paper. The margin for the trail-
ing edge of sheets is 23 mm (0.9 in).
However, if you have specified the leading margin in Pa-
per Details, the larger of the setting values has priority.
Conserve Paper Conserves paper when printing.
Auto Rotate If the long side of an original is shorter than the roll width,
the original is automatically rotated 90 degrees to con-
serve paper. Similarly, if the long side of an original in
landscape orientation is longer than the roll width and the
short side is shorter than the roll width, the original is re-
positioned to fit on the paper.
HP RTL print jobs are not rotated. Because HP RTL im-
ages are not rotated even if the paper is rotated 90 de-
grees, images may be cut off or the blank paper may be
ejected. In this case, set Auto Rotate to Off.
Line &
Pen
Manag-
er
Enable merge Specify whether to merge or print over colors where lines
overlap.
Choose Off to print the second line over the first. Choose
On to merge all overlapping colors.
Pen Set-
up
Select Palette As pen values, choose Software, Palette A, Palette B, or
Factory.
Choose Software to print according to software settings.
Choose Palette A or Palette B to print using the value
specified in Define Palette.
Define Palette Specify the Width, Color, and Line Attributes in the pa-
lette Pen no.. Choose Factory to confirm the values
when Factory is selected in Select Palette.
In Line Attributes, choose No Setting or Circle Setting
as the processing for the ends and junctions of lines.
• If you choose No Setting
• If you choose Circle Setting
Reset Palette Restore Define Palette to the default palette settings.
Smoothing Choose whether to print arcs as smooth curved lines or as
multiple connected line segments.
• If you choose Software
Operation is determined by the application. If nothing
is specified by the application, the result is as shown in
the figure.
Note: By default, this is a 72-sided figure
iPF770 Menu Settings
User's Guide
Control Panel Printer Menu
421

Canon imagePROGRAF iPF770 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Matte black, Yellow
Print technology	Inkjet
Maximum resolution	2400 x 1200 DPI
Number of print cartridges	5
Page description languages	GARO, HP-GL/2, HP-RTL
Certification	CE, TUV, Gost-R, WEEE, ErP, EAC, RoHS, WEEE
Product color	Black, Grey
Sound pressure level (printing)	46 dB
USB connector	USB Type-A
USB 2.0 ports quantity	1
Ethernet interface type	Gigabit Ethernet
Media thickness	0.07 - 1.5 mm
Maximum print size	A0 (841 x 1189 mm)
Maximum roll length	18 m
Media width (sheets)	914.4 mm
Maximum roll diameter	150 mm
ISO A-series sizes (A0...A9)	A0, A1, A2, A3
ISO B-series sizes (B0...B9)	B1, B2, B4
Borderless printing media sizes	A0, A1, A2, A3, B4
Minimum system requirements	Windows XP, Vista, 7, 8, 8.1, Server 2003/2003R2, Server 2008/2008R2, Server 2012/2012R2 Mac X 10.6.8 - 10.10+
Power consumption (standby)	0.5 W
Power consumption (typical)	140 W
Power consumption (PowerSave)	5 W
Storage temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	10 - 80 %
Sustainability certificates	ENERGY STAR
Accuracy	0.2 %
Scan speed (black)	3 ips
Scan speed (color)	1 ips

Weight and Dimensions

Depth	1100 mm
Width	1304 mm
Height	1062 mm
