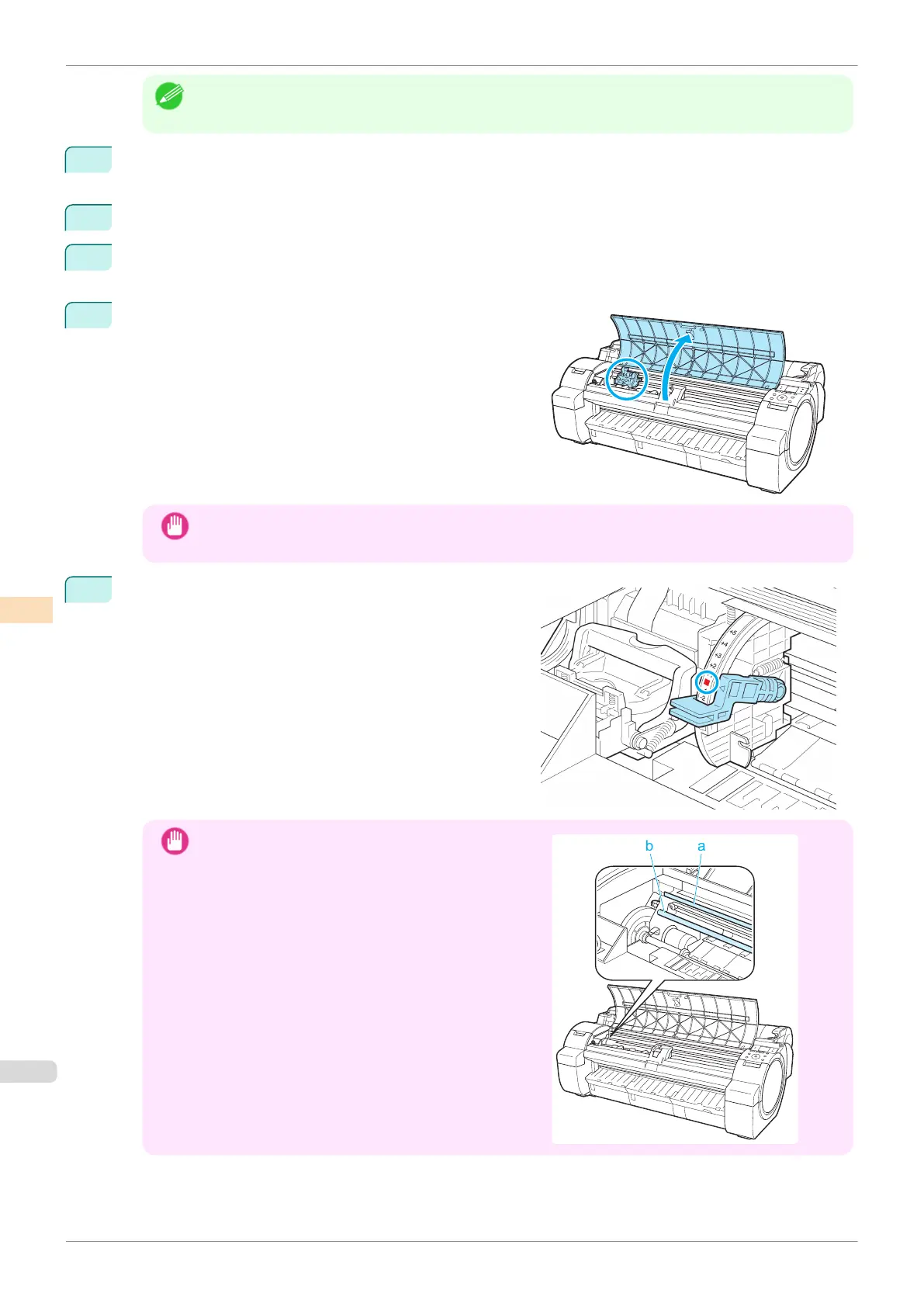

Note
If the Tab Selection screen is not displayed, press the Menu button.
3
Press the OK button.
The Set./Adj. Menu is displayed.
4
Press or to select Adjust Printer, and then press the OK button.
5
Press or to select Head Inc. Adj., and then press the OK button.
After the Carriage is moved, a message is displayed requesting you to open the Top Cover.
6
Open the Top Cover.
Important
If you accidentally move the Carriage, you will hear a warning tone. In this case, close the Top Cover.
7
Align the Angle Adjustment Lever with the red square and
close the Top Cover.
A test pattern is printed for adjustment.
Important
Do not touch the Linear Scale (a) or Carriage Shaft
(b). Touching these parts may damage them.
ab
Adjusting Line Misalignment
iPF770
User's Guide
Adjustments for Better Print Quality Adjusting the Printhead
484
