Canon imagePROGRAF iPF770 User Manual

1

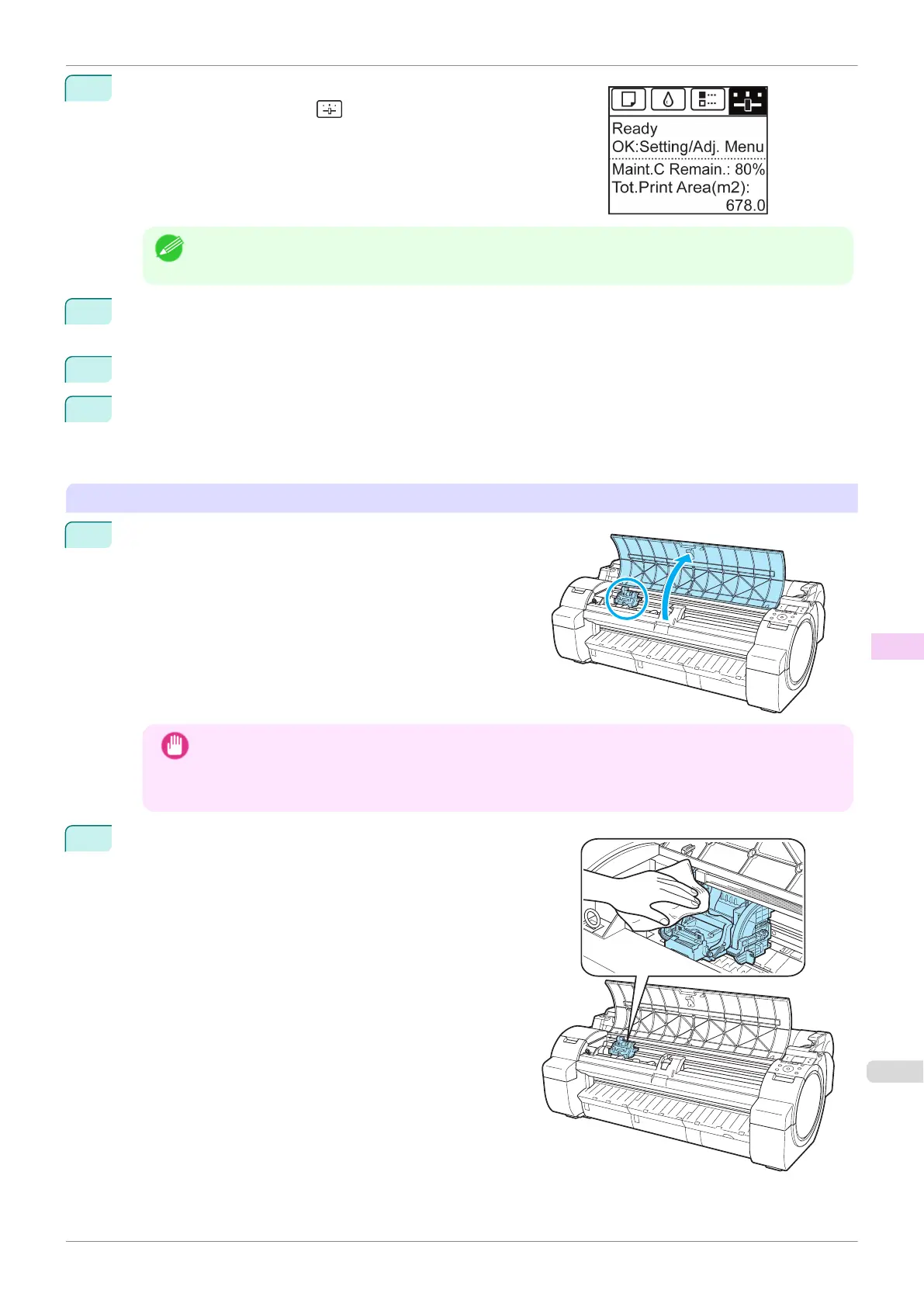

On the Tab Selection screen of the Control Panel, press ◀ or ▶ to
select the Settings/Adj. tab ( ).
Note
• If the Tab Selection screen is not displayed, press the Menu button.
2 Press the OK button.
The Set./Adj. Menu is displayed.
3 Press ▲ or ▼ to select Maintenance, and then press the OK button.
4 Press ▲ or ▼ to select Replace P.head, and then press the OK button.
Ink begins being drawn in. When it finishes, instructions are displayed on the Display Screen.
It takes about two minutes to complete.
Replace the Printhead
1
Open the Top Cover.
Instructions are now shown on the Display Screen regarding
Printhead replacement.
Important
•
During Printhead replacement, do not move the Carriage from the position indicated. If you accidentally
move the Carriage, you will hear a warning tone, and Printhead replacement is no longer possible.
If you move the Carriage by mistake, close the Top Cover. The Carriage will be moved to the position as
indicated.
2
If the Printhead Fixer Cover or Printhead Fixer Lever is
dirty, use a damp cloth that you have wrung out completely
to wipe it clean.
iPF770 Replacing the Printhead
User's Guide
Maintenance and Consumables Printheads
505
