The Features of Free Layout ...................................................................................................................................... 181
Starting Free Layout ...................................................................................................................................................... 181
Free Layout Main Window ........................................................................................................................................... 183
Detailed Settings ..............................................................................................................................................................184
Preferences Dialog Box ................................................................................................................................................ 184
Page Options Dialog Box .............................................................................................................................................. 185
Zoom Dialog Box ..............................................................................................................................................................186
Format Dialog Box ...........................................................................................................................................................187
Laying out a Multiple-File Document on One Page ........................................................................................... 188
Laying out a Document Created with Multiple Application Programs on One Page ......................... 190
Selecting an Object .........................................................................................................................................................192
Changing the Object Size ............................................................................................................................................ 193
Moving an Object ............................................................................................................................................................ 193
Rotating an Object .......................................................................................................................................................... 194
Laying out Objects Automatically .............................................................................................................................194
Aligning Objects ............................................................................................................................................................... 194
Changing the Object Overlapping Order ...............................................................................................................196
Pasting a Copied or Cut Object ................................................................................................................................ 197
Folded Duplex Window .................................................................................................................................................. 198
Finished Size Settings Dialog Box ............................................................................................................................ 199
Binding Settings Dialog Box ........................................................................................................................................200
Prints using Folded Duplex ..........................................................................................................................................200
The Features of Free Layout
The Features of Free Layout
The main features of Free Layout are as follows.
• Allows you to lay out at will and print a document created with application software.
• You can not only lay out multiple pages on one page but also lay out and print a multiple-file document on one
page, or lay out and print a document created with multiple application programs on one page.

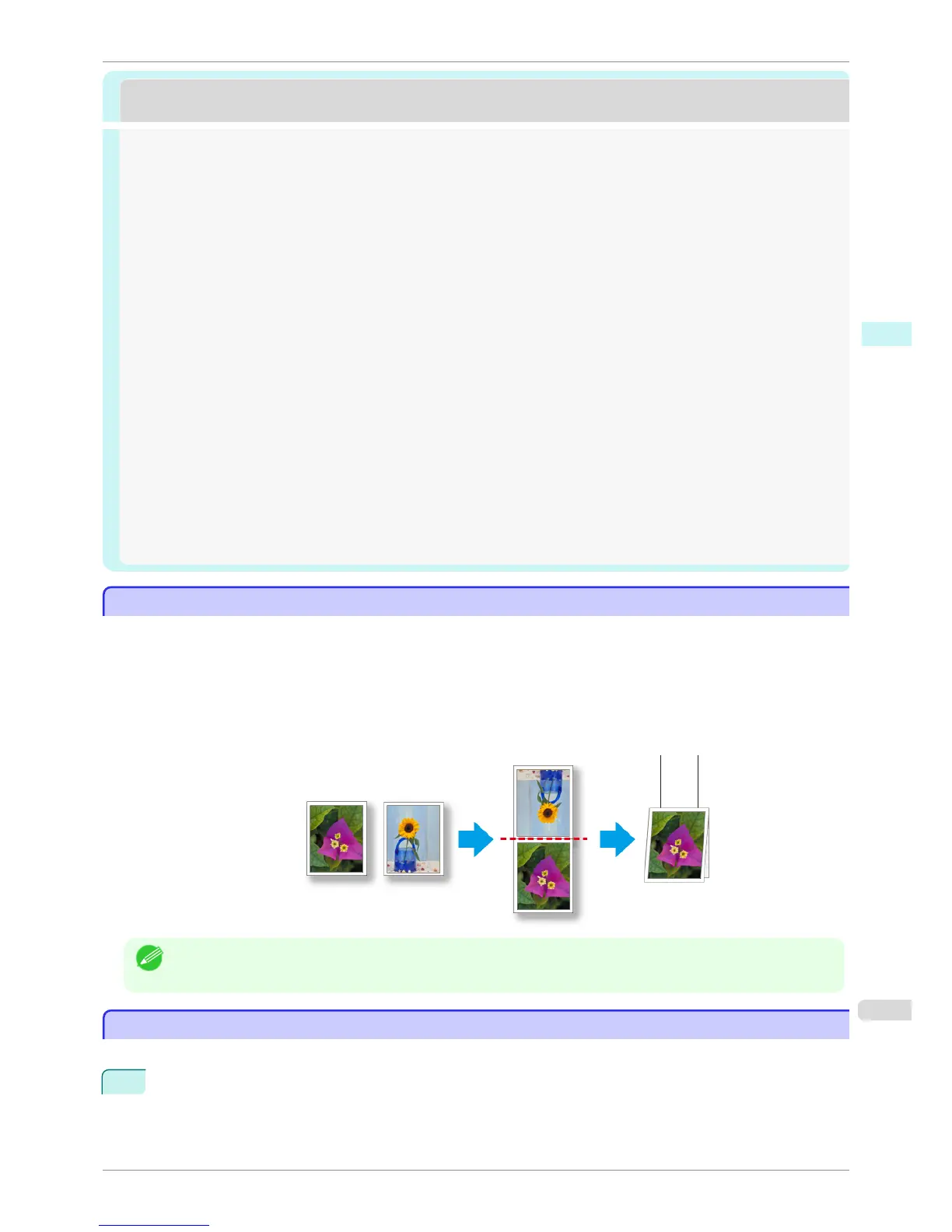

• Any two pages can be arranged and printed in a layout that becomes duplex on folding.
This can be used such as for advertising posters that are suspended from the ceiling.
Note
• The media type, image size, detailed media settings, and the printer settings can cause the actual print output to
differ from the Free Layout settings.
Starting Free Layout
Starting Free Layout
Follow the procedure below to start the Free Layout.
1 Start the apllication software which you use.
iPF780
The Features of Free Layout
User's Guide
Windows Software Free Layout
181
