Canon imageRUNNER ADVANCE C3530i III Service Manual

Fixing/Registration Assembly

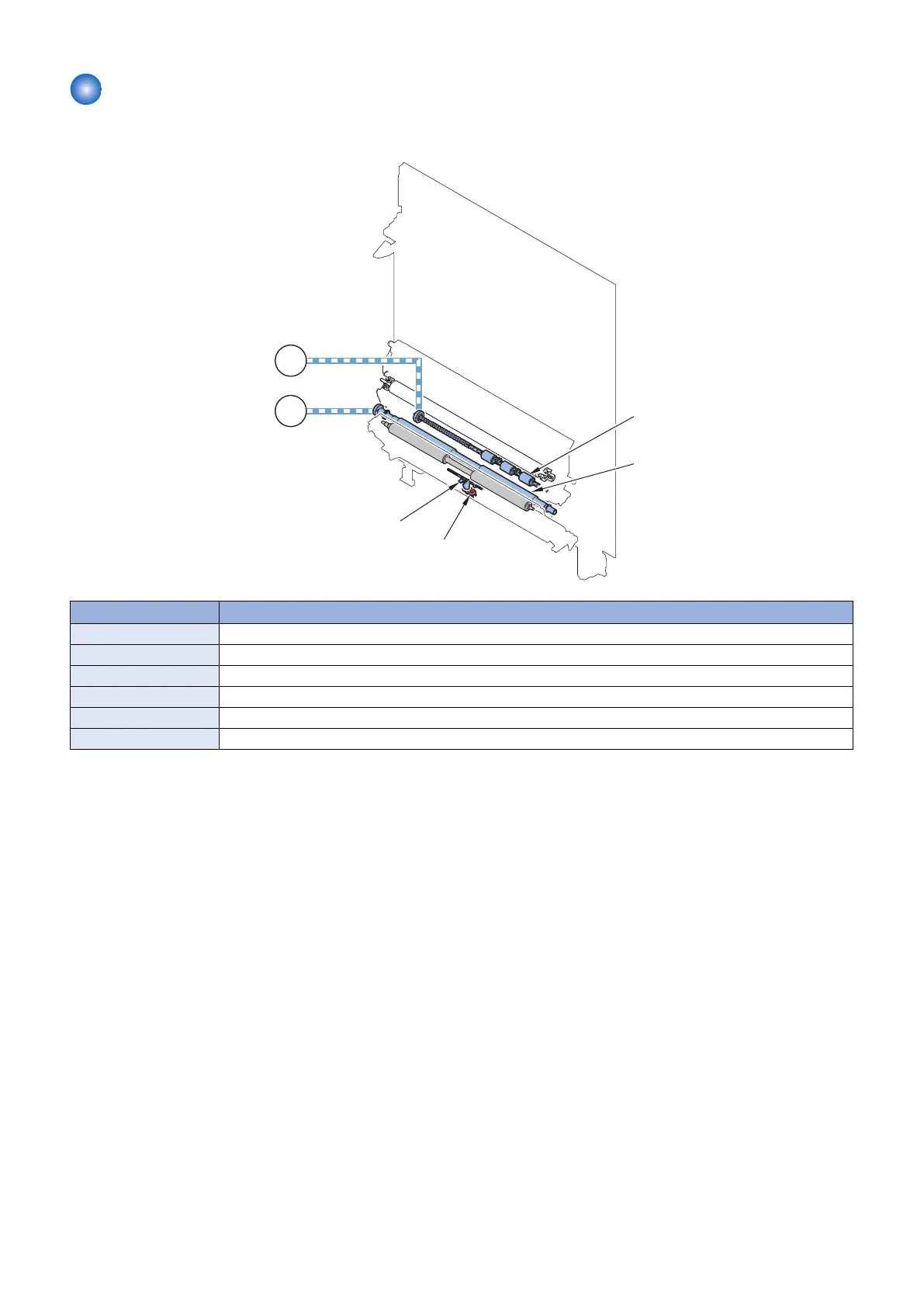

■ Parts / Drive Configuration
[3]
PS22
M12
M14
[1]
[2]
No. Name
1 Registration Roller
2 Duplex Merging Roller
3 Pre-Registration Sensor Flag
PS22 Pre-Registration Sensor
M12 Registration Motor
M14 Duplex Merging Motor
■ Registration Control
Purpose
This control corrects paper skew and aligns the leading edge of the paper with that of the image.
Skew Correction Control
The paper leading edge runs into the stopped Registration Roller, thereby generating an arch in order to correct the skew.
Then, non-stop registration control or stop registration control is executed according to the paper feed condition.
2. Technology
118

Canon imageRUNNER ADVANCE C3530i III Specifications

General

Print Resolution	1200 x 1200 dpi
Interface	USB 2.0, Ethernet, Wi-Fi
Output Paper Capacity	250 sheets
Duplex Printing	Yes
Copy Resolution	600 x 600 dpi
Multiple Copies	Up to 999 copies
Magnification	25% - 400% (1% Increments)
Scan Resolution	600 x 600 dpi
Fax	Optional
Fax Resolution	400 x 400 dpi
Power Consumption (Maximum)	1.5 kW
Type	Color Laser
Functions	Print, Copy, Scan, Send, Store
First Print Out Time	5.9 seconds or less
Processor Speed	1.75 GHz
Memory	3.0 GB RAM
Hard Disk Drive	320 GB
Supported Media Types	Plain, Heavy, Recycled, Color, Label, Envelope
Supported Media Sizes	A3, A4, A5, B4, B5, Legal, Letter, Executive
Supported Media Weights	52-220 gsm
Pull Scan	Yes
Send Resolution	200 x 200 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi
Display	10.1-inch TFT LCD WSVGA Color Touch Panel
Mobile Printing	Available
